Product Details
| Condition | New | Place of Origin | Jiangsu, China | |
| Brand Name | ALMACO | Model Number | DM-45NC | |
| Type | Vertical | CNC or Not | CNC | |
| Voltage | 380V | Power(W) | 1.1/1.5Kw | |
| Dimension(L*W*H) | 1330X1175X2220 | Weight | 700Kg | |
| Certification | ISO 9001,CE | Warranty | 14 Month after BL | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

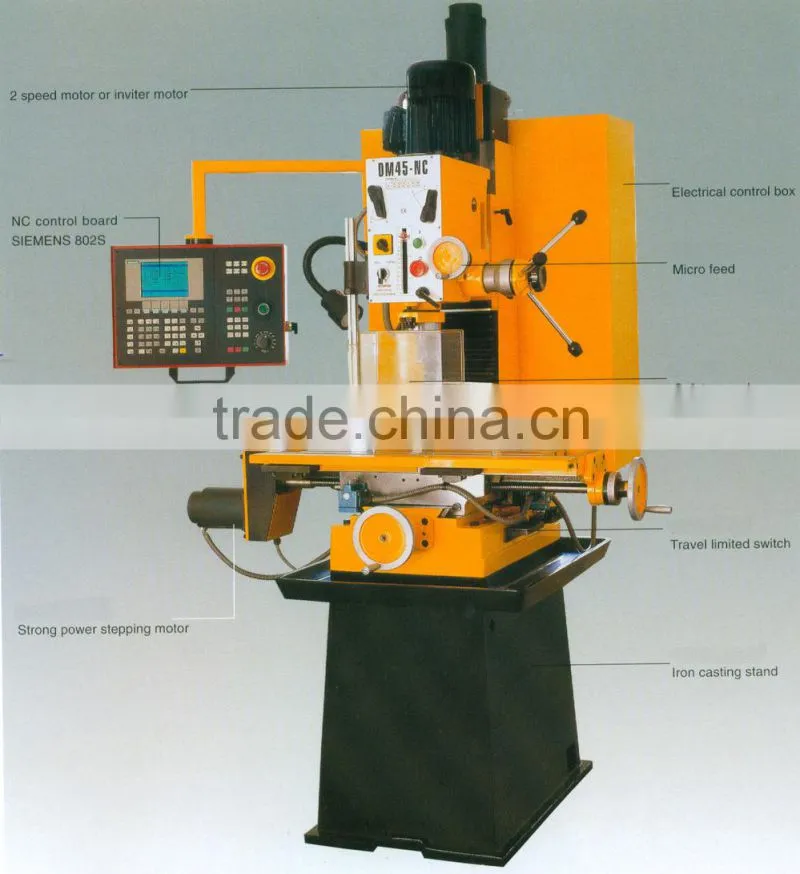

CNC Drilling and Milling Machine DM-45NC
Features:
DM45-NC mchine can operate with manual feed or NC program.With ball leadscrew,stepping motor for all 3 axes.
Position accuracy≤0.02mm/300mm
Reproduction accuacy≤0.01mm
With limit switch for all 3 axes
put unit 0.01mm
Feed speed 0.1.2m/min
CNC Drilling and Milling Machine DM-45NC
| Model | DM-45NC |
| Max.distance Spindle to table(Z axis) | 500mm |
| Max.distance Spindle to table | 285mm |
| Working table size | 800x240mm |
| Working table cross travel | 500mm |
| Working table longitudial travel | 230mm |
| Spindle taper | MT4/MT3 or R8 |
| Spindle stroke | 120mm |
| Spindle stroke | 70-3360rpm(12step) 50-3500rpm(Vario) |
| Max. drilling capacity | F45mm |
| Max. drilling capacity | F32mm |
| Motor power | 1.1/1.5kw |
| Head tilt left right | ±90° |
| NW/GW | 700/800kg |
| Package size | 1330x1175x2220mm |
CNC Drilling and Milling Machine DM-45NC
Our service:
1.All of our goods will pass QUALITY INSPECTIONS before shipment. Best after sale service, customer can follow their order situation any time, no matter on product line, warehouse or shipment.
2.More than 10 years experience in exporting to make your order more smooth.Less than one container loading is accepted.
On time delivery, in general 30 days. Multimode payment:T/T,L/C.
3.Special dimensions available according to request.
4.We have many certificates of our Products.
5.Accessories replacement if our product itself has quality problems during one year after receiving.
Welcome to Almaco Machine Tool Co., Ltd
our company as the main partner member of China Jiangsu International Economic-Technical Cooperation Corporation,specializes in import & export of brand-new industrial machinery & tools.Our mechanical products with ISO9001 or CE certificate cover more than 80 kinds including lathe ,milling machine,grinding machine,power press,guillotine shearer,hydraulic press brake,CNC Machine and so on,which have been exported to 40 or more countries & areas.
We are looking forward to bulding sincere and long-term business relationship with you
