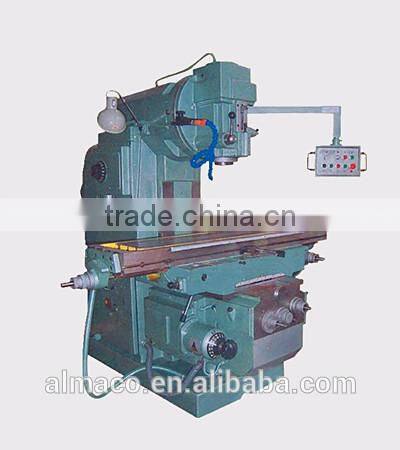

china vertical milling machine VM53K
Main Characteristics & Application
Vertical Knee-type Milling Machine is suit for milling flat, inclined face, angle surface, slots by employing disc cutters, angular, cuttres, formed cutters and face metal milling cutters. When mounted with the index, the machine will be able to perform milling operations in gears, cutter,helix groove, cam and tub wheel.
Vertical milling head can be swiveled by ±45°. Spindle quill can be moved in vertical. The longitudinal, cross and vertical movements of the table can both be operated by hand and power, and it can be rapid moved. Working table and slide ways adopted quality cast hardened ensure high accuracy.
Standard Accessories
Tool bar
Reducing sleeve
Tools
Manuals
Optional Accessories
Machine vice
Rotary table
Dividing head
Spring collect
Tool box
Iron wedge
DRO
Transmission box (X53K/1)
china vertical milling machine VM53K
china vertical milling machine VM53K
| Model | VM40 | VM53K | VM42 VM42A | VM42A/1 | VM42/2 | |
| Table size | mm | 400 x 1600 | 400 x 1600 | 420 x 1800 | 420 x 2500 | 500x2000/2500 |
| Longitudinal travel (Manual/Power) X | mm | 900/880 | 980/880 | 1200/1180 | 1600 | 1250/1600 |
| Cross travel (Manual/Power) Y | mm | 315/300 | 315/300 | 360/350 | 410/400 | 400 |
| Vertical travel (Manual/Power) Z | mm | 385/365 | 385/365 | 460/450 | 460/450 | 400 |
| Feed speed steps | 18 | 18 | 18 | 15 | 15 | |
| Rapid feed ranges: Longitudinal X | mm/min | 19-950 | 19-950 | 22.5-1180 | 10-1250 | 10-1250 |
| Cross Y | mm/min | 12.6-634 | 12.6-634 | 22.5-1180 | 10-1250 | 10-1250 |
| Vertical Z | mm/min | 6.3-317 | 6.3-317 | 8.6-420 | 2.5-315 | 2.5-315 |
| Min. distance from spindle end to table | mm | 30-500 | - | 60-520 | 340-790 | 0-500 |
| Quill travel | mm | 85 | - | 85 | 90 | -- |
| Spindle speed steps | 18 | 18 | 18 | 20 | 20 | |
| Spindle speed ranges | rpm | 30-1500 | 30-1500 | 30-1500 | 18-1400 | 18-1400 |
| Main motor power | kw | 11 | 11 | 11 | 11 | 11 |
| Overall size | cm | 255 x 215 x 219 | 255 x 215 x 219 | 243 x 226 x 243 | 265 x 220 x 276 | 277/327x253x248 |
| Net weight | kg | 4250 | 4250 | 5000 | 5400 | 5160/5400 |
Our service:
1,Your inquiry will be replied in 24 hours.
2.Our manufacture/company has been a Gold supplier continuously in this Alibaba website for 6
years.And there is more industry technology experience for 20 years with our manufactures
3.To offer free spare parts and service within one year of warranty
4.Technology Support Provide operation video for training
5.Professional after-sales service team
6.Give reasonable offers with the best quality
Our advantage:
1,More then 20 years experience for indusry product
2,All modles with CE,TUV,SGS,ISO9001/9002 or other authority approved
3,Professional service and technology
4,Excellent reputation all over the world
5,Final exported producuts would pass strict test by international authority BIVAC
6, There is more exporting experience for 20years with our owned manufacture/company
Welcome to Almaco Machine Tool Co., Ltd
our company as the main partner member of China Jiangsu International Economic-Technical Cooperation Corporation,specializes in import & export of brand-new industrial machinery & tools.Our mechanical products with ISO9001 or CE certificate cover more than 80 kinds including lathe ,milling machine,grinding machine,power press,guillotine shearer,hydraulic press brake,CNC Machine and so on,which have been exported to 40 or more countries & areas.
We are looking forward to bulding sincere and long-term business relationship with you
