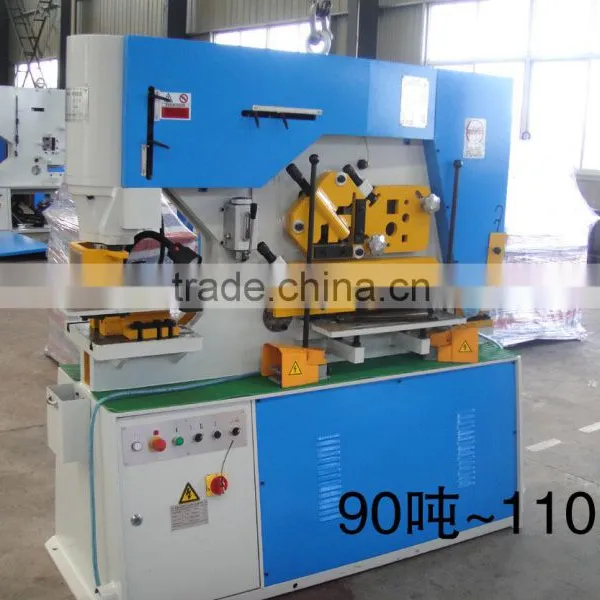

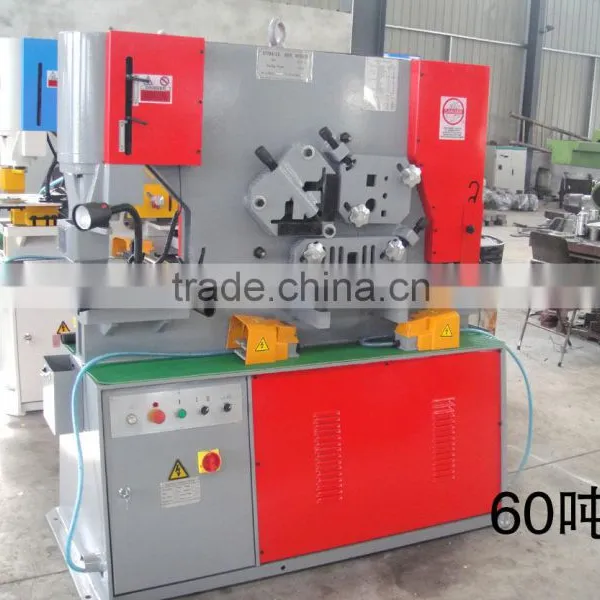

Q35Y Hydraulic Iron Worker
- 150 Set / Sets per Month
- Shanghai Port
- T/T L/C D/P D/A
You May Like
-
The best sale and advanced china universal late of china
-
The advanced chinese engine lathe CQ6236 of ALMACO company
-
Universal lathe machine(C6250C)
-
The china best sale and cheap cnc oil country lathe
-
china profect and low price Deep Hole Machine DDB25 of ALMACO company
-
china profect and low price Deep Hole Drilling & Boring Machine DDB35 of ALMACO company
Product Details
| Condition | New | CNC or Not | Normal | |
| Power Source | Hydraulic | Place of Origin | Jiangsu, China | |
| Brand Name | ALMACO | Model Number | Q35Y | |
| Voltage | 380V 50HZ | Power(W) | 5.5Kw | |
| Weight | 2000Kg | Dimension(L*W*H) | 2000*1000*2000mm | |
| Certification | ISO 9001,CE | Warranty | 14 Month after BL | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Q35Y Hydraulic Iron Worker
Note:
1) All tooling are made of alloy tool steel with proper heat treatment. Cutting blade for I beam and Channel is made of SKD11.
2) Special accessories and other tooling except standard accessories, such as tooling for I beam and Channel could or extra punching dies are supplied optionally upon customization order.
3) Hydraulics is Rexroth and Electrics are Schneider or other world famous brand.
Model | Q35Y-16 | Q35Y-20 | Q35Y-25 | Q35Y-30 |
Presure(ton) | 66 | 90 | 120 | 165 |
Max. Cutting T. | 16(mm) | 20 (mm) | 25 (mm) | 30(mm) |
Cutting Angle | 7 ° | 8 ° | 8 ° | 8 ° |
Cutting Size in a hit(T × Wmm) | 16×250 | 20×330 | 25×330 | 30×335 |
Ram Stroke(mm) | 80 | 80 | 80 | 80 |
Hit per minute | 8 | 8 | 6 | 6 |
Throat depth(mm) | 300 | 355 | 400 | 600 |
Max. Punching T. | 16 (mm) | 20 (mm) | 25 (mm) | 26 (mm) |
Max. Punching D. | 25 (mm) | 30(mm) | 35(mm) | 38(mm) |
Motor(Kw) | 4 | 5.5 | 7.5 | 11 |
Overall Size(mm) | 1640×730×1770 | 1860×800×1900 | 2355×960×2090 | 2680×1040×2300 |
Weight | 1600 | 2400 | 4800 | 6800 |

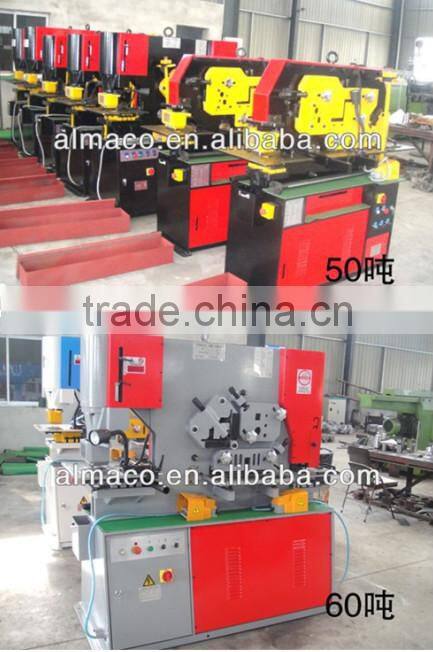

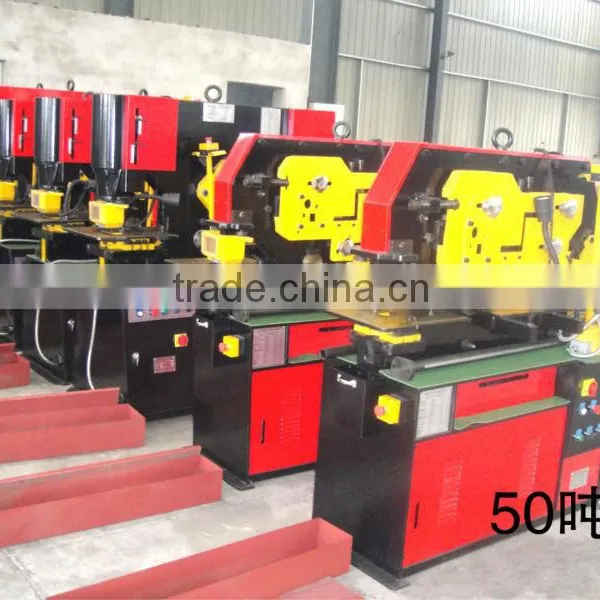

production show:
Q35Y Hydraulic Iron Worker
The machines are packed with wooden case or depend on your requires.
Regarding to the shipping, the machine will be deliveried to your destination ports or place you assign!
1.OEM
2.Spare parts
3.Warranty for one year
4.Tech support is available for 24 hours
5.Fast delivery
Found in 1984 Our Almaco Machine Tool Co., Ltd as the main partner member of China Jiangsu International Economic-Technical Cooperation Corporation. specializes in import& export of brand-new industrial machinery & tools. Our mechanical products cover more than 80 kinds including lathe, milling machine, grinding machine, power press, hydraulic guillotine, hydraulicpress brake, CNC & automotive machines and so on, which have been exported to 50or more countries & areas.
Almaco Machine Tool Co., Ltd is proud to be the professional, high reputation company with high-qualified & professional staff, competive prices and quick & thoughtful after-sale service to cooperate with you.
FACTORY VIEW
CERTIFICATION:
customer visiting:
Our products are exported to more than 50 countries, more than 700 customers
1. Accept L/C, T/T,D/A,D/P type of payments
2. Regarding to the technical questions, pls contact our R&D
3. Any question, call us or send email, we will try our best to satisfy you
