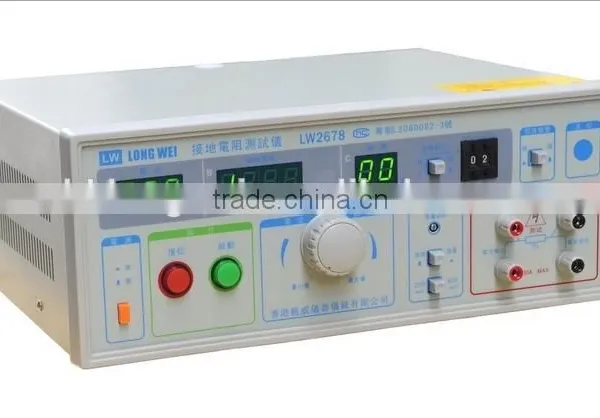

Grounding Resistance Meter,SPC grounding Resistance Mete

Specifications

High measuring accuracy, high speed, easy to use, especially suitable on laboratory and automatic line with high requirements

The performance characteristics and technical parameters
1, high measuring accuracy, fast speed, easy to use, especially suitable for demanding work on laboratory and automatic line
2, test current AC / 5 ~ 30 (a), test the resistance Ω (0 ~ 200 m), the test time (1 ~ 99 s) shows at the same time
3, test time can be set freely
4, testing the alarm value can be arbitrarily set in succession
5, pass/reject audible and visual alarm
6, the output current: AC: 5 ~ 30 (A)
7, the current precision: plus or minus 5% plus or minus 5 or less counts
8, impedance measurement range: 0 ~ 200 m 600 m Ω Ω /
9, alarm, resistance: 0 ~ 200 m Ω / 600 (m Ω) set in a row
10, measurement error: plus or minus 5% plus or minus 5 or less counts
11, test voltage: 8 v MAX
12, isolation transformer capacity: 300 va
13, time control: 1 s ~ 99 s/continuous set and manual
14, the display mode: full digital display
15, test criterion: pass/reject unqualified audible and visual alarm
16, environmental requirements: relative humidity 75% RH or less 0 ~ 40 °C ambient temperature
17, weight: about 12 kg
18, volume (H * W * D) : 350 mm * 130 mm * 280 mm
19, power supply: AC 220 v + 10% for 50 hz plus or minus 5%
