Help CenterDigital Plasma Treating Equipment for PP Box Gluing
Related Products
-
High Frequency Plasma Machine Application on Bobst Production LineUS$ 3,500 - 6,000MOQ: 1 Unit -
High Power Plasma Machine Application on Bobst Production LineUS$ 3,500 - 6,000MOQ: 1 Unit
-
Plasma Application on High Speed Folding MachineUS$ 3,500 - 6,000MOQ: 1 Unit
-
Low Temperature Plasma Treater for Household AppliancesUS$ 6000.00 - 6000.00MOQ: 1 Set
-
Car Lamp Surface Plasma Treatment for BondingUS$ 6000.00 - 6000.00MOQ: 1 Set
Paremeters:

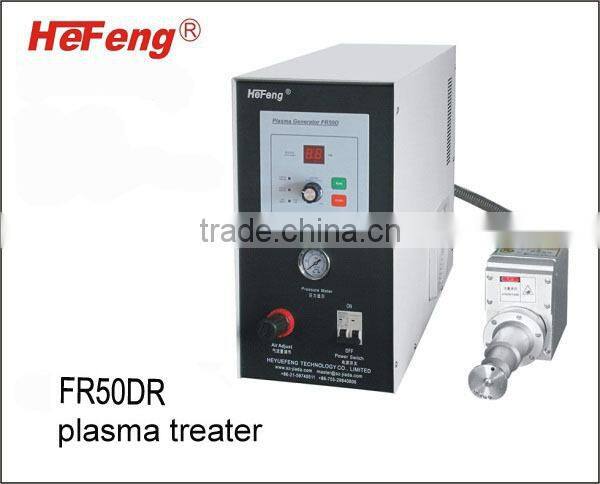

| Model: | FR50DR |
| Input voltage/frequency: | AC220/AC230V plus or minus 10% 50/60Hz |
| Output power: | 500-1200KW |
| Working frequency: | 18-25Khz |
Treating width: |
30/50mm rotation |
| Gas | Compresured air without water or oil |
Features:
1.Adopted intelligent industrial chip control precessing,plasma output power can be precisely regulated and set.
2.Set power can be remenbered until next start(not affected power failures)
3.Power would be smart after the creation of precise lock,without an external voltage fluctuations and working condition of influence,thus the treatment effect of plasma stability,and also redduce the passie manual intervention.

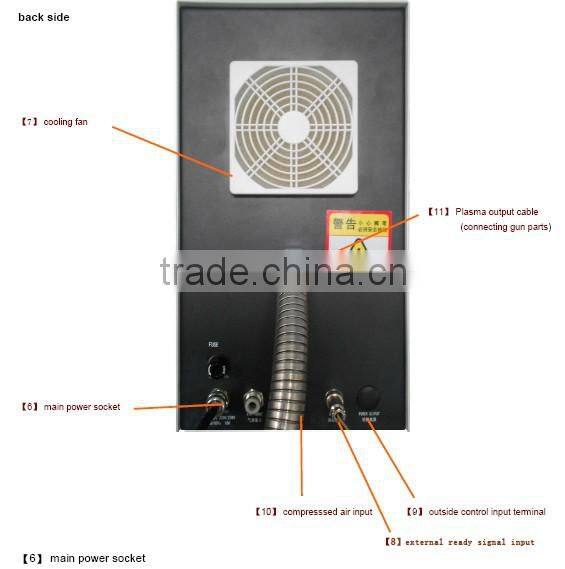

4.On-line ready to OK external signal input.
5.Remote control.application on production line.
1. Increase the bonding strength: after plasma treatment can increase the material's surface tension and makes water-based glue more permeable, enhance box bond strength from the surface to improve the quality of products.
2. Wide application:
Electronic products: mobile screen inkjet and glue,laptop shell coating,watch AF...
Home appliance:electric fan,LED TV
Medical: Biological bacterial culture
Car strip seal
3. Efficient: online processing per minute up to 300 m/min, and pasting box machines, wire can be used, greatly improve production efficiency;
4. Enhance transparency: compared with the traditional grinding wheel, don't leave any traces in the material surface after treatment, and does not produce dust, enhance the aesthetic surface, at the same time to strengthen the printing process; Safety and health, suitable for food, medicine and other packaging industry.
5. Use time and long service life: can online more than a month in a row, guarantee the need of the high strength work, at the same time, through the ISO9001 certification, CE to ensure the quality of use.
6. The use of low cost: electrical work continuously around only once every day, effectively reduce the production cost;
Application:
Wooden case/Carton
FAQ:
1.What do the head treating size?
Two sizes,30mm and 50mm
2.Can it treat the conductive object?
Yes,it can be applied for both of conductive and nonconductive object.
3.If i touch the plasma iron,will i be shocked?
It is safe,won't be harm human body.
4.Is there any consumable parts for plasma machine?
Besides the ceramic which inside the plasma gun,no consumable spare parts.
Heyuefeng Technology Co.,Ltd is mainly devoted to corona and plasma surface treatment industry of R&D and production.Its equipment is widely applied on pretreatment of coating,combination,ink jet,laminating,gluing,various printing industry to improve the surface adhesion of the material,such as PP,PET,PVC,BOPP,laser film,aluminium platinum,copper platinum and a variety of self-adhesive label.Compare with traditional flame treatment corona treatment and plasma treatment not only safe and can save the cost,but also highly raised the production efficiency,more important,it satisfy international export packing requirement.Now we are all staffs efforts to develop higher quality and low cost of surface treatment equipment return the customers continued support.
l In 2007 Registered our trademark "HeFeng machinery"
l In 2010 Shanghai company get through the ISO quality management system, certification NO: 00910 q11980ros;GB/T19001-2008
l In2010 the company independent research Plasma treatment machine, obtain the European CE certification: certification NO: 100914 / SHE697;
l In 2010, the company independent research plasma treatment machine get thenational utility model patent and design patent.
l In June 2010, the company takes part in the Shanghai world Expo and exhibition for 180 days, meanwhile get the honor of China's outstanding private enterprises. certification NO: 0000002218;
l In 20011 Registered our another trademark ""HEYUEFENG"
l In 2011, the company independent research electrostatic eliminator achieved CE certification, NO: MTI110106001CE; MTI1101066001CS;
l In 2012, the company independent research drawer-type corona treater get thenational utility model patent and design patent.
l In 2013, the company independent research drawer-type corona treater achieved CE certification, NO: EC. 1282.1 e130325. SHE0401;;
l In 2013, the company independent research corona ceramic electrodes get thenational utility model patent and design patent.
