1200mm 120W Pendant Trunking Syetem LED Batten Fixture, LED Linear Light System , Linear LED High Bay for Supermarket
1200mm 120W Pendant Trunking Syetem LED Batten Fixture, LED Linear Light System , Linear LED High Bay for Supermarket
Product Introduction
EKEFINE’s Linear LED High Bay Light Fixtures is an innovative, technology leading solution for high ceiling, aisle lighting applications.
These Linear LED High Bay Light features distinctive housing for a modern look, but they’re more than just good looks, these outshines, outlasts and outperforms LED linear lighting fixture alternatives to conventional battens or HID high bay lights in a rectangular beam pattern, while reducing your utility bills and maintenance tasks.
Performance with savings for Retail Lighting
EKEFINE’s energy efficient Linear LED High Bay Light help to create comfortable retail environments that entice customers to stay and spend. While create bright retail environments that's showcase goods and services, EKEFINE’s products also create bright, safety lit outdoor environments to ensure security when customers walk to their trolleys.
The Linear LED High Bay Light will cut energy use by 70 per cent compared to conventional in-store lighting, delivering annual energy savings equivalent to that required to make 10 million cups of tea.
The rollout is also expected to reduce maintenance costs and improve the shopping experience for customers by ensuring a uniform level of light across the store.
Technical Parameters
| Specification for Linear LED High Bay Light | |
| Proudct Name | Linear LED High Bay |
| Model No. | EF-XTA02-120W Linear LED High Bay Light |
| Electrical Parameters | |
| Reted Power | 120W |
| Input Volatge | AC 100-240V 50/60Hz |
| Power Factor | > 0.95 |
| Power Supply Eff1ciency | > 90% |
| Operating Humidity | 10%~100% |
| Operating Temperature | -20 Cesius ~ 45 Cesius |
| Photometric Parameters | |
| LED Type | Bridgelux |
| LED Quantity | 120 pcs |
| Luminous Flux | 10,500 lm |
| Luminous Efficiency | >90 lm/W |
| Color Tempreture |
2700~3000K(WW, 4000~4500K(NW), 5000~6000K(CW). |
| Color Index | Ra > 80 |
| Beam Angle | 270 degree |
| Mechanical Parameters | |
| IP Rating | IP54 |
| Dimension | L1200*W240*H72 mm |
| Installation | Suspension / Trunking |
| Material | Aluminum+PC |
| Lifespan | 50,000 hours |
Features
- Length customized for different aisle length & shelf length;
- Output power optional dependent on aisle width & shelf height;
- 15° / 30°/ 45°/ 60°/ 90°/120° Lens available for focus lighting;
- 240 °beam angle of lens for aisle lighting
- Seamless series connection;
- High-strength extruded aluminum alloy housing
- Lamp plat controlled separately available;
- Highly-efficient 120W replacement for 400W HID
- 13,200 lumen light output; 110 lm/W
- Innovative design with a stylish contemporary look
- 5-year warranty.

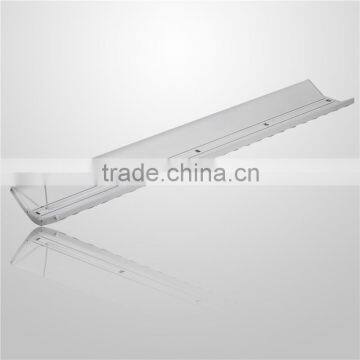

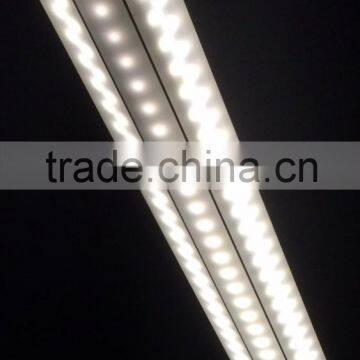

Product Details
below shows details of the Supermarket LED Linear Lighting Fixture:
Test Reports
Light Distribution Curve for EKEFINE Supermarket LED Linear Lighting Fixture:
Illuminance at a Distance for EKEFINE Supermarket LED Linear Lighting Fixture:
Applications
- Supermarket
- Warehouses
- Commercial Facilities
- Manufacturing Facilities
- Aisles (Open and Stack)
Installations
One pair of ceiling mount brackets included for rail installation; suspension cables are also available for handing installation.
Projects
Below show some projects of EKEFINE Supermarket LED Linear Lighting Fixture:
Productions
