Product Details
Place of Origin: | Guangdong, China | Brand Name: | LW | Model Number: | TPR-1510 |
Output Power: | Other, 150 | Output Type: | Single | Input Voltage: | Other, 220V/110V |
Output Voltage: | 0-15A | Output Frequency: | 50Hz/60Hz | Output Current: | 0-10A |
Product Description
Specifications

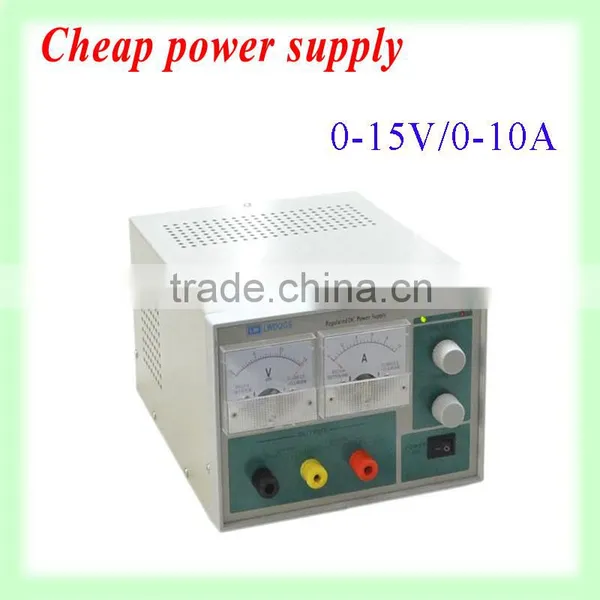

Pointer meter shows the voltage and current value.Constant voltage and constant current dc power supply
TPR Series linear dc adjustable power supply is an equipment with high stability, high reliability, low noise. Both of its output voltage and current can be continuously adjustable. This low cost and universal power supply can be used in many different areas, from testing R&D equipment to test products of production lines. It can be used as both constant voltage and constant current dc power supply.
Application:
1.Educational Laboratories
2.Electronic production line
3.Communications industry
4.Product research
5. All other areas need dc power supples
Features:
Single channel output
External and internal radiator cooling design can reduce noise
Pointer meter shows the voltage and current value.
Constant voltage and constant current dc power supply
Specifications:
Model: TPR-1510
Input voltage: 220 V or 110V±10% 50/60Hz
Output voltage: 0-15V
Output current: 0-10A
Operating Temperature: 00C to 400C
Relative humidity: <80%
Storage Temperature:-200C to 800C
Relative humidity: <70%
Constant voltage state:
Voltage stability: <0.01%+3mV
Load stability :< 0.01%+5mV
Recovery time :< 100μS
Ripple & noise : <1.0mVrms
Temperature coefficient: < 300PPM/0C
Constant current state:
Current stability:<0.2%+2mA
Load stability:<0.2%+2mA
Ripple & noise: <2mARMS
Model | Output volts(V) | Output current (A) | Dimension(mm) |
TPR-1510 | 0-15V | 0-10A | 282*197*152 |
TPR-1520 | 0-15V | 0-20A | 316*197*152 |
TPR-1530 | 0-30V | 030A | 415*197*152 |
TPR-3010 | 0-30V | 0-10A | 282*197*152 |
TPR-3020 | 0-30V | 0-20A | 415*197*152 |
TPR-6405 | 0-64V | 0-5A | 316*197*152 |
TPR-6410 | 0-64V | 0-10A | 415*197*152 |
TPR-12002 | 0-120V | 0-2A | 282*197*152 |
