0-30V/0-30A Power Supply Meter

Specifications

Technical parameters

(1) Input voltage:

      AC220V+10%/AC220V-5%   50Hz±2Hz

     AC110V+10%/AC110V-5%   60Hz±2Hz

(2) Rated output voltage: 0-30V adjustable

(3) Rated output current: 0-30A adjustable

(4) Current effect: CV≤ 2×10^-4+ 1mV

                            CC≤ 2×10^-3+ 10mA

(5)Load effect: CV≤ 2×10^-4+ 5mV (output current≤10A)

                            ≤ 5×10^-4+ 10mV (output current>10A)

                       CC≤ 2×10^-3+ 15mA (output current≤10A)

                            ≤ 5×10^-3+ 20mA (output current>10A)

(6) Ripples and noises: CV≤1.5mVr.m.s. (Output current≤10A)

                                        ≤3mVr.m.s. (Output current>10A)

                                    CC≤10mAr.m.s. (Output current≤10A)

                                         ≤15mAr.m.s. (Output current>10A)

(7) Protection: Protection of current limitation

(8) Instruction:

     Digital voltmeter and ammeter, LED three digital displays.

     Precision: voltmeter ±1%+2 figures   Ammeter±2%+2 figures

(9) Environmental conditions: 0-40⁰C relative humidity<90%

 Model:

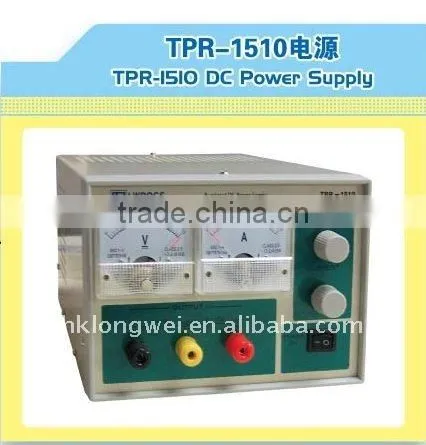

TPR-1510: 0-15V/0-10A

TPR-1520: 0-15V/0-20A

TPR-1530: 0-15V/0-30A

TPR-3010: 0-30V/0-10A

TPR-3020: 0-30V/0-20A

TPR-6405: 0-64V/0-5A

TPR-6410: 0-64V/0-10A

TPR-12002: 0-120V/0-2A
