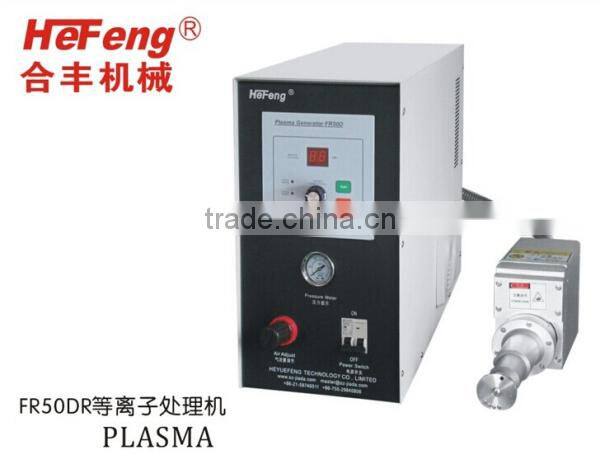

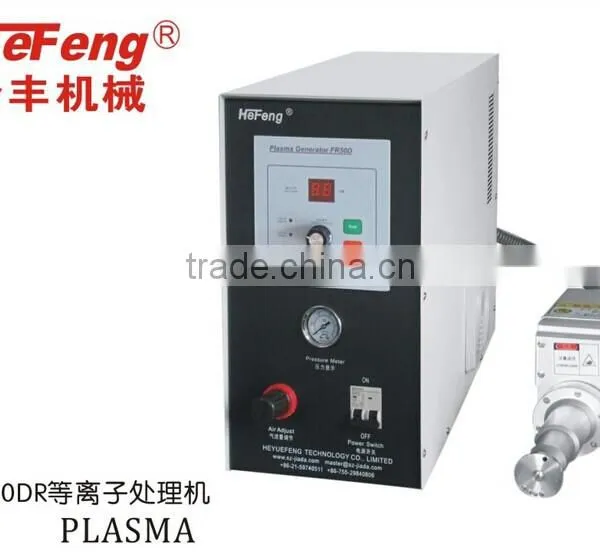

Help CenterFR50DR Air Plasma Treatment Machine for Printing and Gluing
Related Products
-
China Best Low Temperature Rotating Plasma TreaterUS$ 5,500 - 7,000MOQ: 1 Unit -
High Power Plasma Polishing for Folding Box Gluing MachineUS$ 3,500 - 5,000MOQ: 1 Unit
-
Low Temperature Plasma Treatine MachineUS$ 5,000 - 8,000MOQ: 1 Unit
-
ShenZhen Air Plasma for Cellphone Screen Surface CoatingUS$ 2,500 - 8,000MOQ: 1 Set
-
China Best Low Temperature Plasma TreaterUS$ 5,500 - 7,000MOQ: 1 Unit
Specifications
1 1.2 KW output power2.50mm treating width
3.adopt intelligent industry control chip
| model | input voltage/frequency | woring frequency | output power | treating width | air source |
| FR50DR | AC220/230V±10% 50/60Hz | 18-25KHz | 600-1200W | 30-50mm(rotate) | 0.4Mpa no water |
features
1.Adopt intelligent industrial control chip control processing, the plasma output power can be precisely regulated and setting
2.Set power can be remembered until the next start(not affected power failures)
Power would be smart after the creation of precise lock, without an external voltage fluctuations and working conditions of influence, thus the treatment effect of plasma stability, and also reduced the passive manual intervention
4.LCD display function:
5.On-line ready to OK the external signal input. External equipment to confirm the site is ready, the machine can only start the working
6.The machine has many types of automatic monitoring and warning capabilities
7.The machine can according the surface treatment request ,Pressure on the plasma jet continuously adjustable
8.The machine can according the customer surface treatment function request , equipped with a variety of plasma injection nozzle
9.The interior design of this machine with a variety of interfaces be reserved, you can according to customer requirements,
combined with the actual production line of on-line installation of a variety of automatic control functions
Note: must be according to customer specific request
One unit can combine many plasma generators and match more nozzles, according to customer's requirements
Range of application
1.Low plasma applied on sealing trip
For car door sealing ,front and rear wind shield sealing,side-window sealing strip,sunproof sealing,trunk sealing and so on.
2.For car lamp processing application
At present , the headlamps are basically the use of adhesive.
In order to improve the surface tension, and access to production, through the cold treatment, so that instead of hot melt glue has become possible to save costs,improve efficiency.
3.application of vehicle sheet
4. Glass materials pretreatment such as cellphone and tabet PC and so on.
6. box and carton folding gluing process

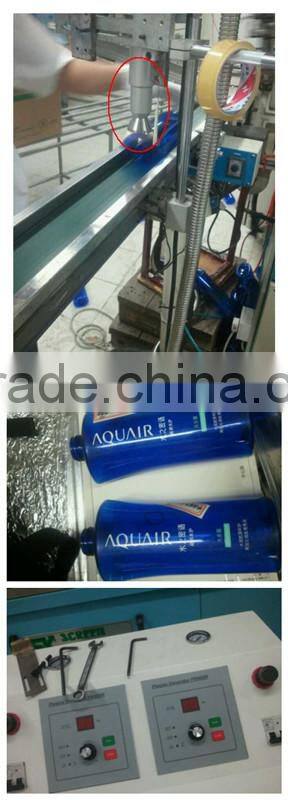

plasma install on screen printing machine
packaging:wooodecase
shipping:EXWORK/FOB/CIF
1.does the working temperature very high?
no . you can use hand to touch
2.the machine must in the environment without water and oil
3.the machine can running continously for 24 hours
our company have set the highest standard in corona design with continual innovation , high flexibility and robust designs, Quality takes top priority at HeFeng
Our projective is to prodive customers with standard equipment or specially adapted solutions for interation purpoosed, to meet specific requirments
