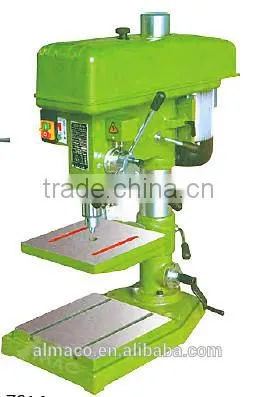

Help Centerthe Best Sale and Well Tapping Machine for Sale ZS12/16 of China of ALMACO Company
Related Products
-
the Best Sale and Well Radial Drilling Machine RD10031 of China of ALMACO CompanyNegotiableMOQ: 1 Set -
Top Sale Drilling and Tapping Machine Z5050 of ALMACO CompanyNegotiableMOQ: 1 Set
-
the Hot Sale and China Best Tap Machine ZS32 of ALMACO CompanyNegotiableMOQ: 1 Set
-
Hot Dale Radial Drilling Machine RD8031 of ALMACO CompanyNegotiableMOQ: 1 Set
-
China Well Tapping Machine Z5040 of ALMACO CompanyNegotiableMOQ: 1 Set
| well tapping machine for sale |
· Used in the high speed hot extrusion,drilling,milling,enlarging,reaming and threading;
· The feeding is realized by means of CNC system,capable if realizing a cycle comprising fast forward,fine forward,fast backward(chipremoval),the efficiency prominently improved.In addition,an orders are designed specifically for drilling operation,which simplifies the operation and improves the effectiveness.
· An electromechanical integration design ensures the compact structure and esthetic appearance;
· Uses in the high speed hot extrusion,drilling, hole slash, reaming, tapping and milling;
· To feed transmission system uses the ball bearing guid screw, the precision stability is good;
· This machine has three axis numerical control system,various axes running rate is quick, can realizw the stepless change,the pinpointingm, through the drill hole ,the milling, working procedures and milling end surface and so on processes each kind of components;
·Table elevation of the workbench is conducted by an electric-driven mechanism,There are two optional means of elevation manual and automatic.
| well tapping machine for sale |
| well tapping machine for sale |
| Model | 15152 | 15153 | 15154 | 15155 | 15156 | 15157 | 15158 | 15159 |
| Z5030 | Z5035 | Z5040 | Z5050 | ZS40 | ZS32 | ZS20/25 | ZS12/16 | |
| Max.Drilling capacity(mm) | 30 | 35 | 40 | 50 | 40 | 31.5 | 20/25 | 12/16 |
| Max.tapping capacity(mm) | M20 | M24 | M27 | M30 | m32 | M20 | M16/M20 | M8/M10 |
| Diameter of column(mm) | 120 | 140 | 160 | 180 | 115 | 115 | 5 | 70 |
| Spindle travel(mm) | 135 | 160 | 180 | 240 | 110 | 130 | 125 | 100 |
| Distance spindle axis to column generationg line(mm) |
320 | 330 | 360 | 360 | 261 | 202 | 240 | 193 |
| Max.Distance spindle nose to table(mm) | 550 | 590 | 590 | 570 | 745 | 790 | 291/367 | 315 |
| Max.Distance spindle nose to base(mm) | 1100 | 1180 | 1180 | 1160 | 800 | 1245 | 560/630 | 556 |
| Spindle taper | MT3 | MT4 | MT4 | MT4orMT5 | MT4/R8 | MT3 | MT2/MT3 | MT2 |
| Spindle speeds range(r/min) | 65-2600 | 75-2500 | 42-2050 | 42-2050 | 50-1250 | 100-2150 | 290-2150 | 480-4100 |
| Spindle speeds series | 12 | 12 | 12 | 12 | 6 | 12 | 5 | 5 |
| Spindle feeds(mm/r) | 0.1 0.2 0.3 | 0.1 0.2 0.3 | 0.07 0.15 0.26 0.40 | 0.07 0.15 0.26 0.40 | 0.12 0.18 0.25 | -- | -- | -- |
| Dimension of worktable surface(mm) | 500x440 | 50x440 | 550x470 | 550x470 | 540x470 | 540x470 | 280x300 | 200x230 |
| Table travel(mm) | 490 | 550 | 550 | 550 | 515 | 515 | -- | -- |
| Dimension of base table(mm) | 400x390 | 400x390 | 450x440 | 450x440 | 635X460 | 635x460 | 590x375 | 1528x360 |
| Overall height(mm) | 2050 | 2300 | 2380 | 2380 | 1400 | 1760 | 1127 | 1037 |
| Main motor(KW) | 1/1.5 | 1.5/2.2 | 2.2/2.8 | 2.2/2.8 | 1.1/1.5 | 1.1/1.5 | 0.55/0.75 | 550W |
| Coolant motor(W) | 40 | 40 | 40 | 40 | 40 | 40 | -- | -- |
| G.W/N.W(kg) | 500/440 | 670/600 | 750/680 | 800/730 | 300/280 | 345/305 | 165/140 | 108/90 |
| Packing dimension(cm) | 108x62x215 | 108x62x230 | 108x62x245 | 108x62x245 | 75X73X146 | 80x75x186 | 82x48x102 | 77x42x95 |
Our service:
1.All of our goods will pass QUALITY INSPECTIONS before shipment.Best after sale service, customer can follow their order sit uation any time, no matter on product line, warehouse or shipment.
2.More than 10 years experience in exporting to make your order more smooth.Less than one container loading is accepted.
On time delivery, in general 30 days. Multimode payment:T/T,L/C.
3.Special dimensions available according to request.
4.We have many certificates of our Products.
5.Accessories replacement if our product itself has quality problems during one year after receiving.
