radial drilling machine/drilling machine/drilling machinery/drill
max. drilling capacity:40/50, spindle travel:315mm,
*radial drilling machine/drilling machine/drilling machinery/drill
max. drilling capacity:32/40, spindle travel:280mm,spindle speeds range:32-2500mm,spindle
speeds series: 16, power of main motor:2.2w

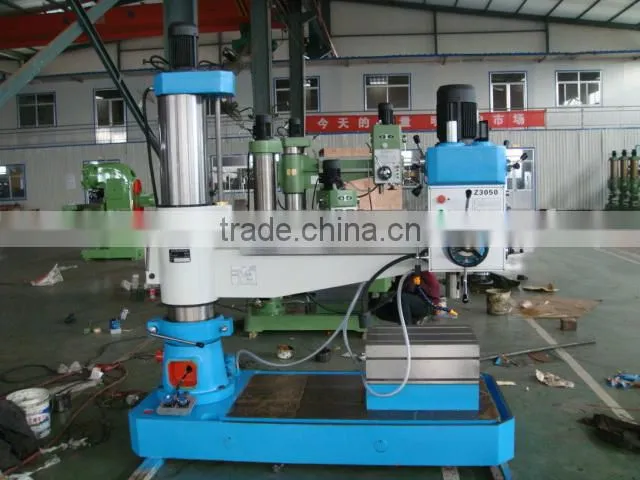

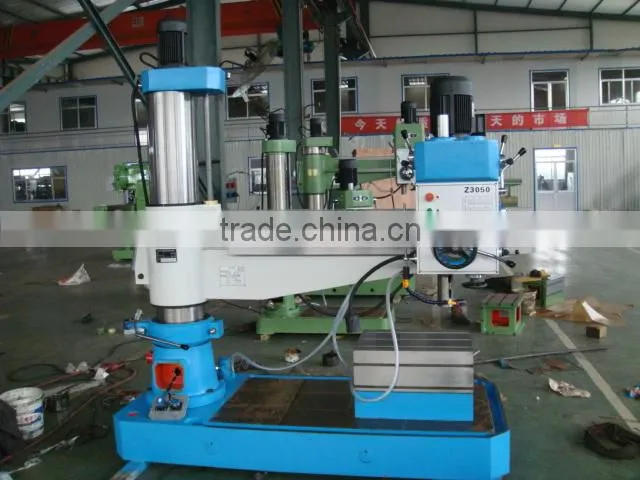

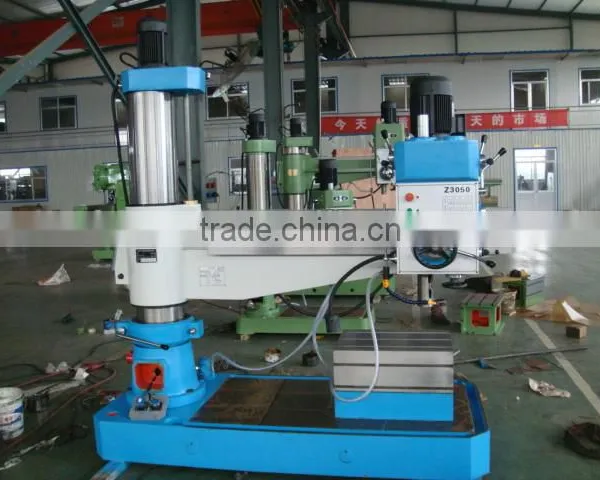

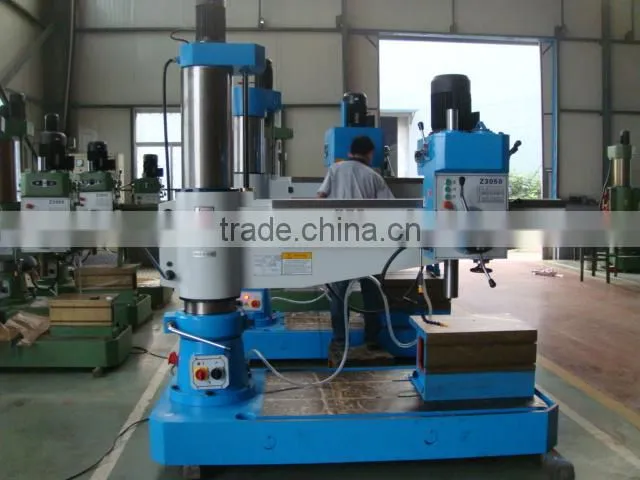

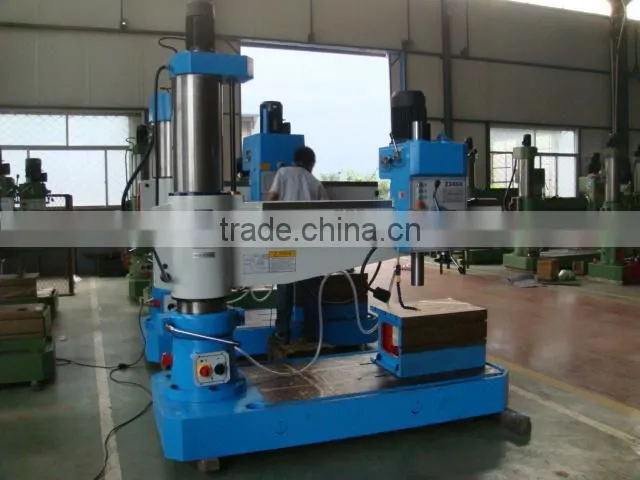

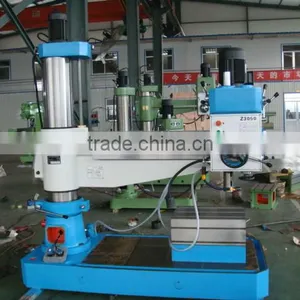

Radial Drilling Machine
Standard Accessories
Box shape worktable
Taper sleeve
Tool releasing Wrench
Drift
Eyelet bolts
Optional Accessories
Quick instead chuck
Tapping chuck
Grease gun
Foot stand (Z3032X7)
Model |
Z3040X16/2 Z3050X16/2 ZQ3050X20/2 |
Max.drilling capacity (mm) |
40,50,50, |
Distance spindle axis to column generating line (mm) |
350-1600,350-1600,350-2000 |
Diameter of column (mm) |
350 |
Spindle taper |
MT4,MT5,MT5 |
Spindle travel (mm) |
315 |
Spindle speeds range (r/min) |
25-2000 |
Spindle speeds series |
16 |
Range of Spindle feeds (mm/r) |
0.04-3.2 |
Mpindle Spindle feeds |
16 |
Distance spindle nose to working surface of base (mm) |
350-1250,320-1220,320-1220 |
Dimension of worktable (mm) |
630X500X500 |
Dimension of base (mm) |
2400X1000X200 |
|
Overall size (mm) |
2500X1060X2650 2500X1060X2650 2900X1060X2650 |
Power of Main motor (kw) |
3,4,4 |
G.W/NW (kg) |
3650/3400,3650/3400,3850/3550 |
|
Packing dimension (cm) |
260X112X260 260X112X260 300X112X260 |
Our service:
1.All of our goods will pass QUALITY INSPECTIONS before shipment. Best after sale service, customer can follow their order situation any time, no matter on product line, warehouse or shipment.
2.More than 10 years experience in exporting to make your order more smooth.Less than one container loading is accepted.
On time delivery, in general 30 days. Multimode payment:T/T,L/C.
3.Special dimensions available according to request.
4.We have many certificates of our Products.
5.Accessories replacement if our product itself has quality problems during one year after receiving.
Welcome to Almaco Machine Tool Co., Ltd
our company as the main partner member of China Jiangsu International Economic-Technical Cooperation Corporation,specializes in import & export of brand-new industrial machinery & tools.Our mechanical products with ISO9001 or CE certificate cover more than 80 kinds including lathe ,milling machine,grinding machine,power press,guillotine shearer,hydraulic press brake,CNC Machine and so on,which have been exported to 40 or more countries & areas.
We are looking forward to bulding sincere and long-term business relationship with you
