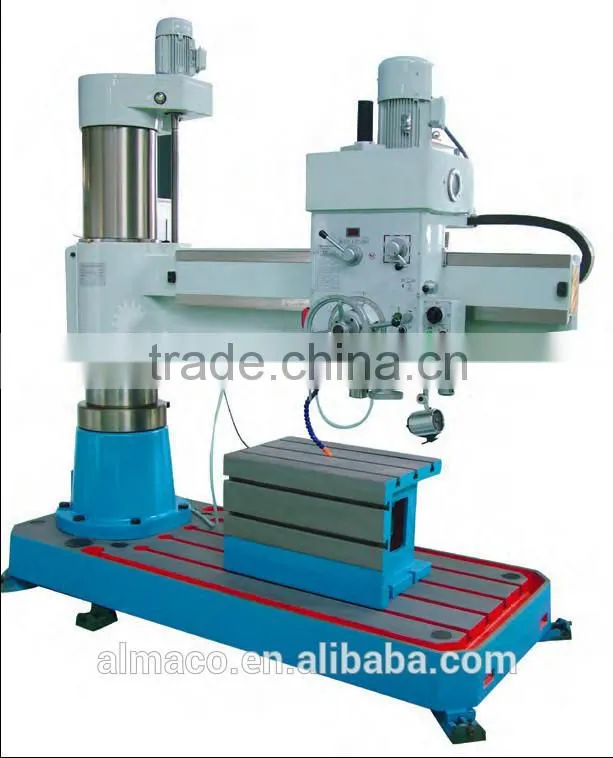

new frequency conversion radial drilling machine ZB3060*16
Specifications
1.multi-spindle drilling machine
2.flexible reliable
3.perfect feature
4.high precision
5.Z3080 raidal drilling machine

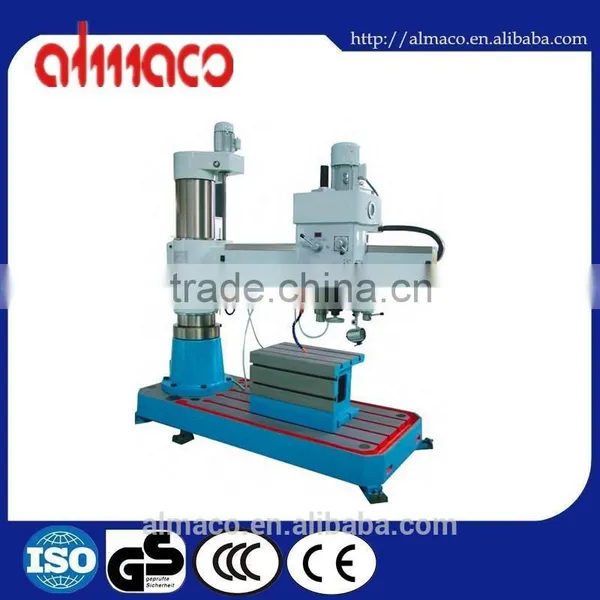

new frequency conversion radial drilling machine ZB3060*16
new frequency conversion radial drilling machine ZB3060*16
| Model | ZB3060x16 | ZB3080x20 | ZB3080x25 | |
| Max.drilling diameter(on Medium-carbon steel) | mm | Ø62 | Ø80 | |
| Max.drilling diameter(on cast iron) | mm | Ø72 | Ø105 | |
| Max.tapping diameter(on Medium-carbon steel) | M46 | M52 | ||
| Max.tpping diameter(on cast iron) | M52 | M60 | ||
| Max.distance from spindle to generating line of colum | mm | 350-1600 | 450-2050 | 450-2550 |
| Distance of horizontal movement for spindle box(manual) | mm | 1250 | 1600 | 2100 |
| Max.distance between spindle endto the worktable surface of the base | mm | 350-1250 | 400-1620 | |
| Max.travel of the spindle | mm | 315 | 400 | |
| Spindle taper bore | MT.5 | MT.6 | ||
| Spindle speed step | Stepless | Stepless | ||
| Spindle speed range | r/min | 38-275,275-2000 | 30-220 / 192-1400 | |
| Spindle feed steps | 8 | 8 | ||
| Spindle feed range | mm/r | 0.06-1.00 | 0.06, 0.09, 0.15, 0.23, 0.36, 0.60, 0.90, 1.38 | |
| Speed of rocker arm up and down movement | m/min | 1.2 | 1 | |
| Rotation angle of rocker arm. | degree | ±180 | ±180 | |
| Distance of spindle movement for calibrated dial each revolution | mm | 122 | 151 | |
| Power of main motor(tranducer motor) | KW | 4 | 7.5 | |
| Power of motor for rocker arm up and down movement | KW | 1.7 | 2.2 | |
| Power of oil pump motor for spindle box,column and rocker arm clamping | KW | 0.75 | 1.1 | |
| Weight of machine | Kg | 3800 | 6800 | 7400 |
| Machine dimension(LxWxH) | mm | 2490x1000x2508 | 3090x1250x3460 | 3590x1250x3530 |
Our service:
1.All of our goods will pass QUALITY INSPECTIONS before shipment. Best after sale service, customer can follow their order situation any time, no matter on product line, warehouse or shipment.
2.More than 10 years experience in exporting to make your order more smooth.Less than one container loading is accepted.
On time delivery, in general 30 days. Multimode payment:T/T,L/C.
3.Special dimensions available according to request.
4.We have many certificates of our Products.
5.Accessories replacement if our product itself has quality problems during one year after receiving.
Welcome to Almaco Machine Tool Co., Ltd
our company as the main partner member of China Jiangsu International Economic-Technical Cooperation Corporation,specializes in import & export of brand-new industrial machinery & tools.Our mechanical products with ISO9001 or CE certificate cover more than 80 kinds including lathe ,milling machine,grinding machine,power press,guillotine shearer,hydraulic press brake,CNC Machine and so on,which have been exported to 40 or more countries & areas.
We are looking forward to bulding sincere and long-term business relationship with you
