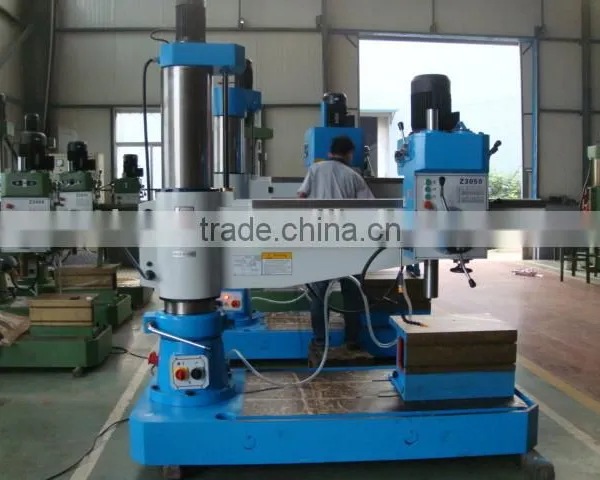

Radial Drilling Machine/Z3040*16 / Heavy Duty Type/good Quality

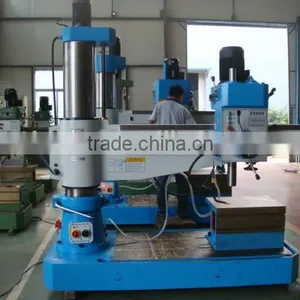

Radial Drilling Machine/Z3040*16 / Heavy Duty Type/good Quality thumbnail-1
Radial Drilling Machine/Z3040*16 / Heavy Duty Type/good Quality photo-1
US$ 6,000 - 12,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
CNC or Not:
Normal
Drilling Speed:
25-2000
Contact Supplier Request Quote Chat Now
Almaco Machine Tool Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
CNC or Not Normal
Drilling Speed 25-2000
Brand Name ALMACO
Model Number Z3050
Voltage 380
Power(W) 4000
Dimension(L*W*H) 292*123*288
Weight 3800
Certification ISO 9001
After-sales Service Provided Engineers available to service machinery overseas

  radial drilling machine/drilling machine/drilling machinery/drill
max. drilling capacity:40/50, spindle travel:315mm,



*radial drilling machine/drilling machine/drilling machinery/drill





max. drilling capacity:32/40, spindle travel:280mm,spindle speeds range:32-2500mm,spindle


speeds series: 16, power of main motor:2.2w



Radial Drilling Machine





Standard Accessories
Box shape worktable
Taper sleeve
Tool releasing Wrench
Drift
Eyelet bolts


Optional Accessories
Quick instead chuck
Tapping chuck
Grease gun
Foot stand (Z3032X7)

Model

                  Z3040X16/2

             Z3050X16/2                 ZQ3050X20/2

Max.drilling capacity                       (mm)

                  40,50,50,

Distance spindle axis to column generating line  (mm)

    350-1600,350-1600,350-2000

Diameter of column                         (mm)

                          350

Spindle taper

              MT4,MT5,MT5

Spindle travel                                  (mm)

                          315

Spindle speeds range                      (r/min)

                      25-2000

Spindle speeds series

                            16

Range of Spindle feeds                   (mm/r)

                       0.04-3.2

Mpindle Spindle feeds

                            16

Distance spindle nose to working surface of base (mm)

   350-1250,320-1220,320-1220

Dimension of worktable                  (mm)

                 630X500X500

Dimension of base                          (mm)

               2400X1000X200



Overall size                                    (mm)

            2500X1060X2650

            2500X1060X2650

            2900X1060X2650

Power of Main motor                     (kw)

                        3,4,4

G.W/NW                                       (kg)

3650/3400,3650/3400,3850/3550



Packing dimension                          (cm)

260X112X260

260X112X260

300X112X260

radial drilling machine/Z3040*16 / Heavy duty type/good qualityradial drilling machine/Z3040*16 / Heavy duty type/good qualityradial drilling machine/Z3040*16 / Heavy duty type/good qualityradial drilling machine/Z3040*16 / Heavy duty type/good qualityradial drilling machine/Z3040*16 / Heavy duty type/good qualityradial drilling machine/Z3040*16 / Heavy duty type/good qualityradial drilling machine/Z3040*16 / Heavy duty type/good qualityradial drilling machine/Z3040*16 / Heavy duty type/good qualityradial drilling machine/Z3040*16 / Heavy duty type/good qualityradial drilling machine/Z3040*16 / Heavy duty type/good quality
