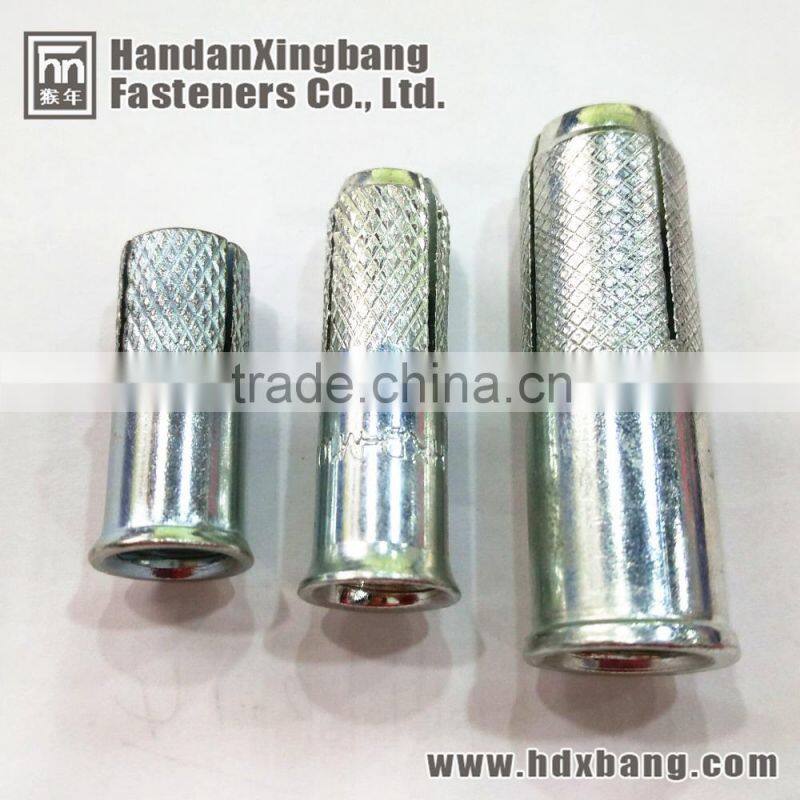

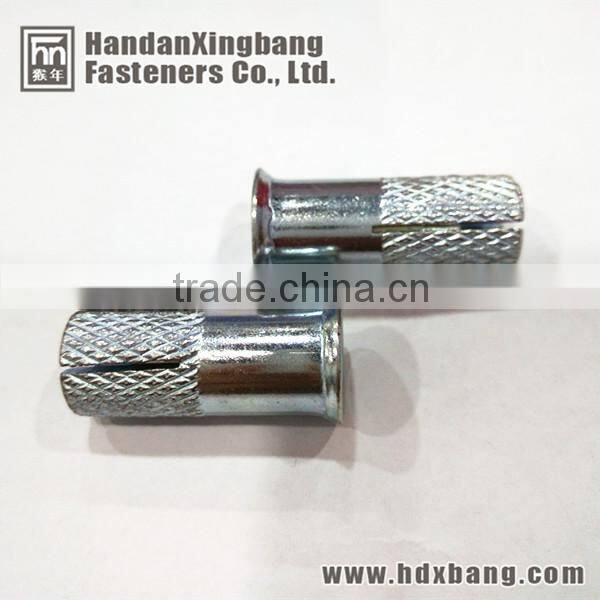

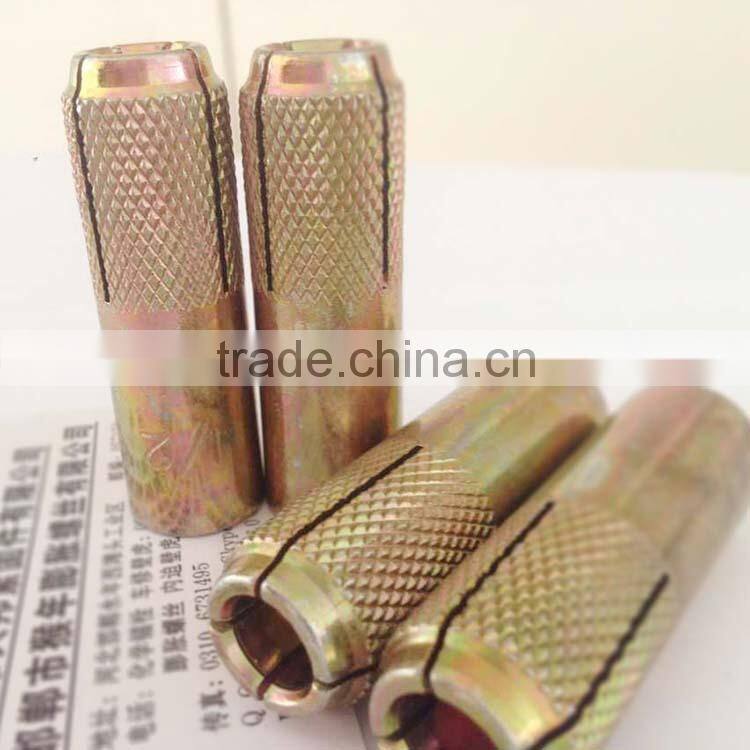

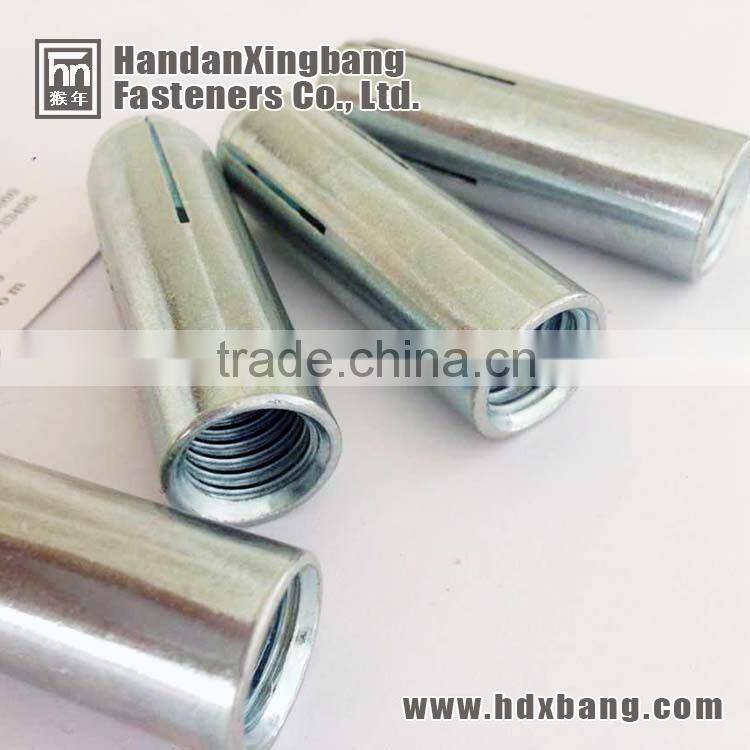

Carbon Steel 5/8*11*65 Drop in Anchor Made in China

Drop in anchor/ concrete anchor/ ground anchor

straight type/ lip type/ knurled/ half knurled/no knurled is all available.

material: carbon steel Q195 or Q235

standard: DIN, ANSI, BS

surface treatment: elector galvanizing /  hot dip galvanized

color: blue white or yellow

mark: according to your requirement

origin: Handan, Hebei, China

sizes:

DIN standard:

M6*8*25, M8*10*30, M10*12*40, M12*16*50, M14*18*55, M16*20*65, M20*24*80

ANSI standard:

1/4"*20*25, 5/16"*18*30, 3/8"*16*40, 1/2"*13*50, 5/8"*11*63, 3/4"*10*80

BS standard:

1/4"*20*25, 5/16"*18*30, 3/8"*16*40, 1/2"*13*50, 5/8"*11*63, 3/4"*11*80

Different weight has different price.

installation:

step1:Drill or core a hole to the recommended diameter and depth. Clean the hole thoroughly with a hole cleaning brush. Remove the debris with a hand pump, compressed air, or vacuum.

step2:Insert the drop in anchor into the hole. Using a hammer and the appropriate setting tool, drive the expansion plug into the anchor until the shoulder of the tool rests against the surface of the anchor.

step3. Position the fixture, insert the bolt or threaded rod and tighten with a spanner.

Packing:

Original packing: white boxes in plain cartons, then on pallets

Or on your requirement, OEM is also available.

Shipping:

Land transportation to Tianjin , Shanghai or Qingdao port, then sea transportation to the port of destination.

Handan Xingbang fastener limited company, located in Yongnian westsouth industrial area, is the wholly-owned subsidiary of Handan Hounian expand screw limited company, which is located in Yongnian Hebeipu industrial park, founded in 1992.

Our company has a 23 years history specializing in manufacturing expansion anchor bolts, and our brand Hounian (hn) gains great reputation across China.

Our main manufactured products : wedge anchor, drop in anchor, chemical anchor bolt, and types of sleeve anchor.

Bolts, nuts, washers and other fasteners also can be supplied.

Welcome new and old customers can increase contact and collaboration with us!
