Help CenterLED Light Source Aluminum Material IP65 Waterproof High Power UFO High Bay Lighting From Manufacturer
Related Products
-
LED Light Source CE Rohs UL Listed IP65 Factory Warehouse LED High Bay LightUS$ 120.00 - 135.00MOQ: 1 Piece -
LED Light Source Aluminum Lamp Fitting 100/150/200w Led Industrial Lights High Bay Light for WarehouseUS$ 120.00 - 135.00MOQ: 1 Piece
-
IP65 Waterproof LED High Bay Light,LED Industrial High Bay Light,UFO LED High Bay Light for LogisticsUS$ 120.00 - 135.00MOQ: 1 Piece
-
High Quality LED Industrial High Bay Light,high Bay LED Light,150/200W LED High Bay Lighhigh Bay Light for WarehouseUS$ 120.00 - 135.00MOQ: 1 Piece
-
Waterproof LED High Bay Light, UFO High Bay Light ,LED Industrial Light for Indoor and Outdoor StadiumUS$ 120.00 - 135.00MOQ: 1 Piece
Features Of 200w IP65 LED High Bay Light
1 high lumen efficiency from 100-120 lm/w, high efficiency and energy-saving.
2 Philips LED chip has good stability.
3 Impact and modern outlook,gives people a clear and bright impression.
4 Easy to package /shipment/maintenance,saving shippment cost.
5 Wall mount and dependent installation,more installation option.
6 IP rating 65,Waterproof. dust -proof and water-proof.
7 Dimmable function is optional,Cost-saving.
Parameter Of 200w IP65 LED High Bay Light
| Model number | EF-GKD01-50W | EK-GKC01-100W | EK-GKC02-200W |
| Power | 50w | 100w | IP 65 LED high bay 200w |
| Input voltage | AC85-265 | AC85-265 | AC85-265 |
| Frequency | 50/60HZ | 50/60HZ | 50/60HZ |
| Power factor | >0.95 | >0.95 | >0.95 |
| Luminous Efficiency(lm/w) | 140lm/w | 100lm/w | 100lm/w |
| Operating humidity | 10%--100% | 10%--100% | 10%--100% |
| Operating temperature | '-20-45°C | '-20-45°C | '-20-45°C |
| LED type | Citizen COB | SMD3030 Philips | SMD3030 with Lens |
| LED quantity | 1 | 105 | 182 |
| Luninous flux (lm) | 7000 | 10000 | 20000 |
| Color Temperature(CCT) | 3000K 4000K 5000K for optional | cold/pure/warm for optional | cold/pure/warm for optional |
| Color Index(Ra) | 70 | >80 | >80 |
| Beam angle | 120° | 120° | With Lens, 60° to 260° |
| Dimmable | 10-10V/ Pwm/ Silicon controlled | Optional | Optional |
| Material | Aluminum + glass | Aluminum + glass | Aluminum + glass |
| IP rating | IP65 | IP65 | IP65 |
| Dimension (mm) | 178*H210 | 300*H100 mm | 450*H130 mm |
| Lifespan (hours) | >50,000 | >50,000 | >50,000 |
| warranty | 3 years | 3 years | 3 years |
1 Front view and sideview of 200W IP65 LED High Bay Light
2 Design and Chip: The surface of 200W IP65 LED high bay light was made up with 182 pieces Philips SMD 3030 LED Chip. The phililips chip is stable and high efficiency. And the SMD chip was even spreaded ,which is very useful for heat dissipation. Meanwhile,the heatsink was the fish fin shape to achive a good air convection.
3 Lens reflecter design: The standard of the beam angle is 120°. We can adjust the angle by lens. the beam angle is optional from 60-260°.
Lens details
4 Installation of LED light 200W IP65 LED high bay light: The bracket adjust angle —180°. One-mitune installtion .
And Wall mount / hang way. It's very flexible to choose any way.
5 Details: stainless screws, IP65,dust-proof and waterproof,flame proof cable.
Dimmable optional is Available for energy-saving.
6 We also offer Lighting simulation if you need it.
Companyring with traditional light :
| Item | UFO LED HIGH BAY | Traditional high bay | HID |
| Switch instantaly | Yes | YES | No |
| Dimmable | YES | No | No |
| Waterproof | YES | No | No |
One-minutes quick installation:
Hang:
1:Hang the LED high bay light fixture;2 Connect the core or plug
Wall Mount:
1 cut off the power; 2 fix the LED light fixture to the wall with screws.

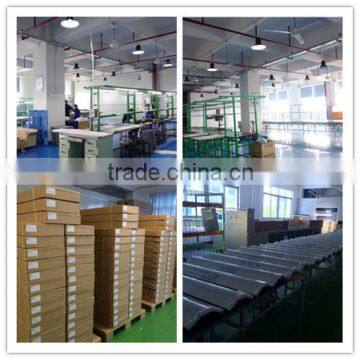

Located in Shenzhen,A new city,the base of LED products and techonology.
Founded in 2009, Shenzhen EKEFINE Lighting Technology CO., Ltd. is dedicated to the research and development of LED lighting products.
We specialized in Smart LED Tube, Smart LED Panel, LED High Bay, LED Flood Light and auxiliary lamps, such as LED Down Light, LED Spotlight.
“Best Quality from EKEFINE, Best Service to Customers” is our eternal corporate purposes; it will be illuminate at any stage of our company development!
Indoor Staduim, plant,warehouse, logistics area
If you are interested in this 200w IP65 LED high bay light, or need a lighting solution,please let me know:
Skype:vanessaglee1798
WhatsApp:+86--155 0755 9669
