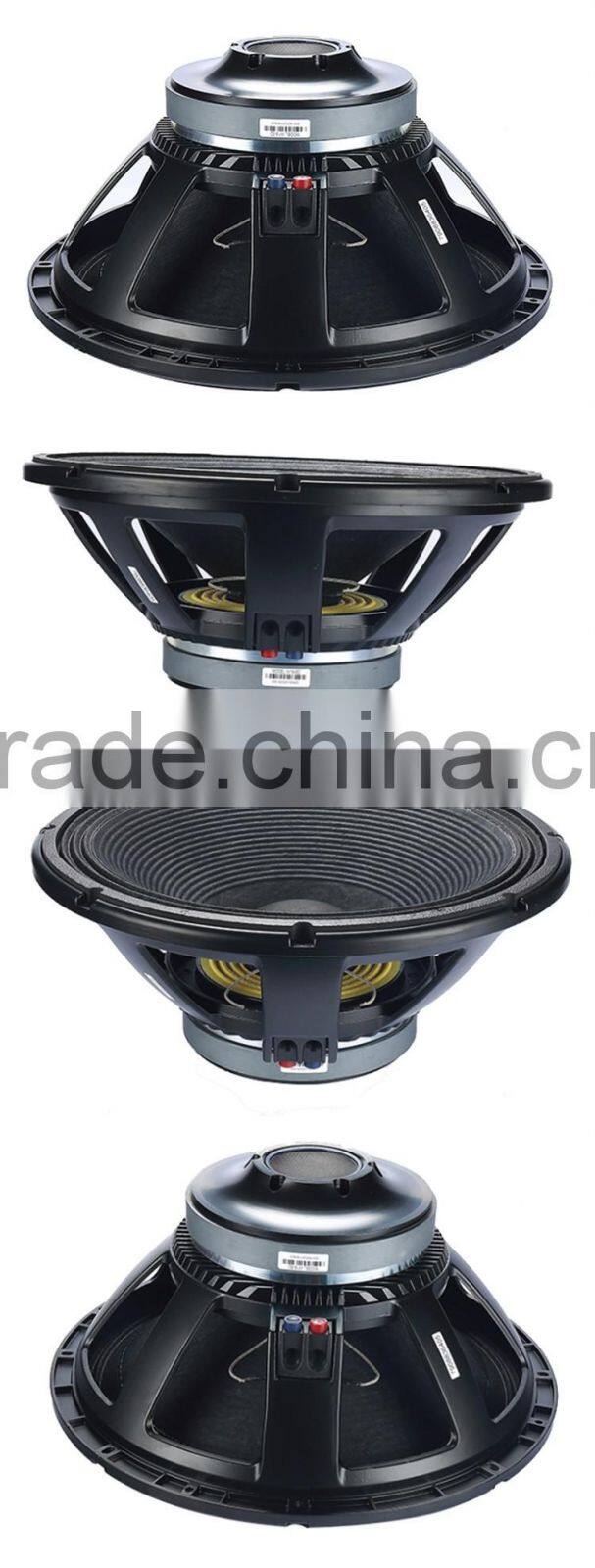

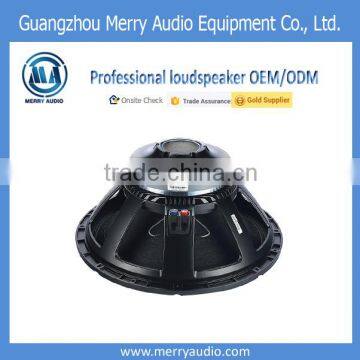

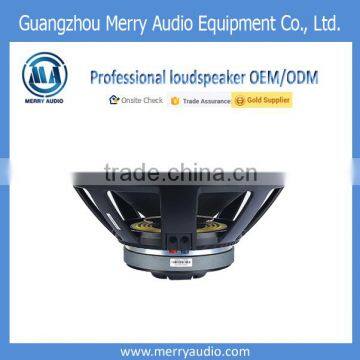

MR18-5D 750W 96dB stage using woofer speaker unit,18inch Ferrite Ring loudspeaker driver
| General Specifications | |
| Nominal Diameter | 460mm/18inch |
| Nominal Impedance | 8Ω |
| AES Power Handing | 750W |
| Continuous Program Power | 1500W |
| Sensitivity 1W/1M | 96dB |
| Frequency Range | 38.7Hz~2.5kHz |
| Voice Coil Diameter | 100mm/4 inch |
| Windinig Material | Copper |
| Former Material | Glass Fibre |
| Winding Depth | 23mm |
| Magnetic Gap Depth | 12mm |
| surround material | Polycotton |
| surround Design | Triple-roll |
| Magnet Φ220 | Ferrite Ring |
| Thiele & Small Parameters | |
| Resonance Frequency | 38.7Hz |
| DC Resistance | 5Ω |
| Mechanical Factor | 8.479 |
| Electrical Factor | 0.443 |
| Total Factor | 0.421 |
| BL Factor | 22.49T.m |
| Effective Moving Mass | 184.7gr |
| Compliance | 91.73μ M/N |
| Equivalent Cas Air Load | 195.6dm3 |
| Effettive Piston Area | 1225.4cm2 |
| η(Eta Zero) | 0.0247 |
| Mountiong & Shipping Information | |
| Overall Diameter | 466mm |
| Bolt circle diameter | 445mm |
| Baffle Cutout Diameter | 422dm |
| Depth | 219cm |
| Net Weight | 12.5kg |
| Shipping Weight | 14.2kg |
| Shipping Box(Single) | 49.5x49.5x25cm |
1- 4inch voice coil:
2- Ferrite Magnetics;
3- Model:MR18-5D;
4-750Watts peak power.
Packaging :
Common carton that protect speaker from damage, or as your OEM requirements.
Shipping:
Express/ Airlift / FCL(Full Container Load) or LCL, FOB / EXW / CIF or CNF. Our sales team are capable enough to
arrange the shipment if you want.
1.Any questions from you are welcome and will be replied in 24 working hours.
2.Experienced staff answer all your questions in fluent English.
3.Special discount and protection of sales area provided to our distributor.
4.Specialized in speakers over 11 years.
5.A team of designers and engineers are capable to create new items according to personal request.
6.Customized design is available.
- Welcome OEM and ODM.
Guangzhou Merry Audio Equipment Co., Ltd. was founded in 2005 with a concept of “Customer first, reputation premier” to specialize in developing, manufacturing and OEM speakers. With over 10 years development, Merry Audio has become a leading professional speaker manufacturer. We have a 5,000 square meter workshop, introduced world level Class A technical equipment for producing, established 3 modern production lines and a R&D team consisted of 10 professional acoustic engineers who focusing on technical development and quality control.
For future development, Merry Audio will continue to make progress in products and quality control, provide low frequency drivers that range from 6.5" to 21", as well as various line of high frequency drivers. We base on the “quality first, reasonable price” and develop the spirit "adopting the essence of all other company,strive for perfection", keep innovating to provide our customers speakers with more advance technology and better quality than other company.
