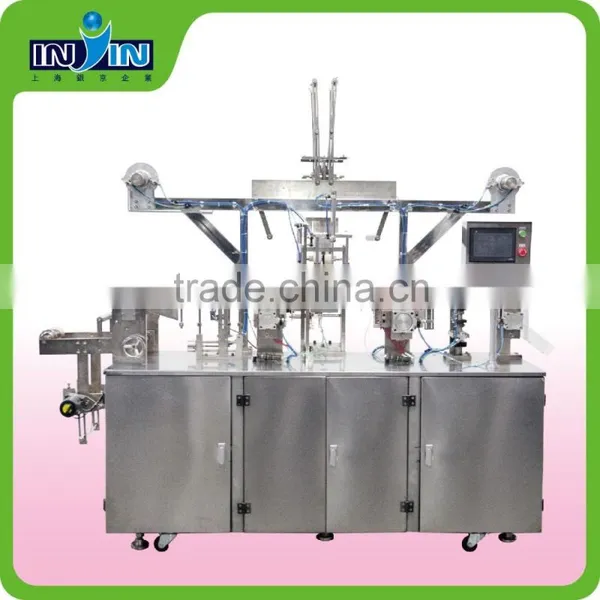

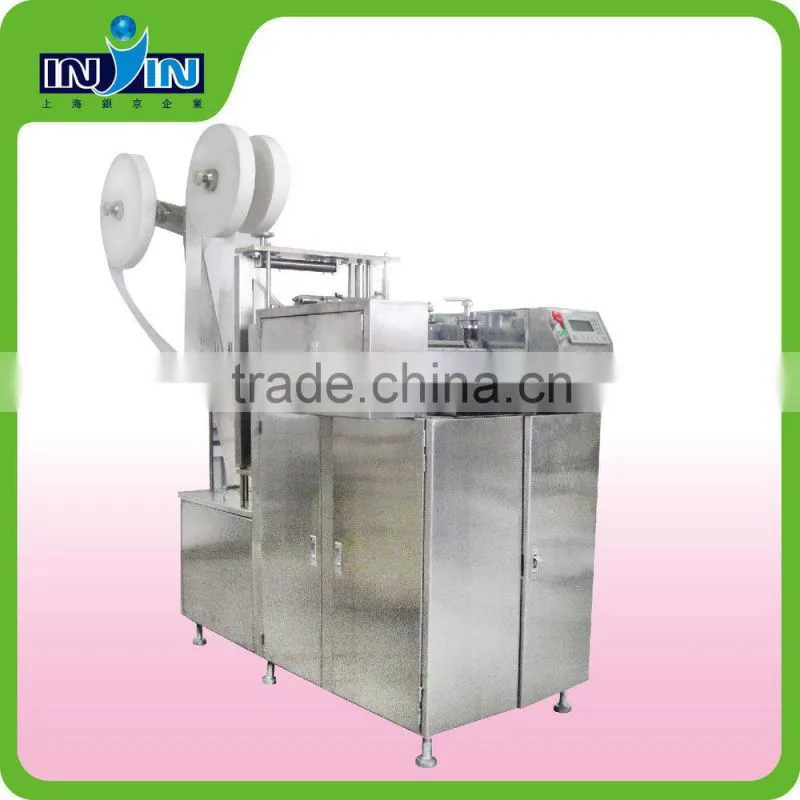

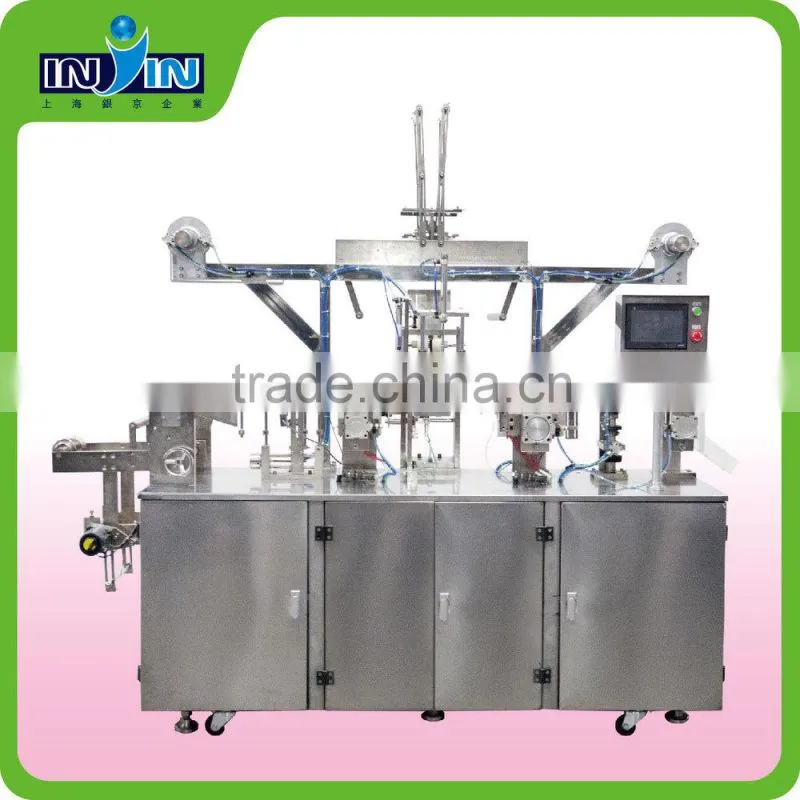

Automatic High-speed Alcohol Swab Packing Machine

As customers' requirement

Specifications

1. - PLC controlling system
2. - Stepless speed regulation
3. - Error +/- 0.02g
4. - Cursor positioning, stable operating



- Production Details Express

name	Automatic High-speed Alcohol Swab Packing Machine
Pouch Size	60x50mm (LxW)
Production Capacity	60-80 pcs/min
Voltage	220V 50Hz
Power	2.5KW
Barometric pressure	6-8Kg/m³
Temperature	10-35℃
Weight	800Kgs



- Main Features



1. This packaging machine is running stably and reliably controlled by Omron PLC Program. The full-color touch screen control panel is safe and reliable with no mechanic buttons on it which means it has great durability against breakage.



2. The heating system is powered by solid state relays and no contact relays which significantly enhanced the operational safety in cleanroom and high-risk environment.It runs with no sparks and electric arc.



3. The machine can seal three or four sides of the external package.Sealing length can be adjusted freely as needed.



4. The device operating parameters can be adjusted freely upon process requirements. e.g. Packaging speed, Fluid implant amount, Package length etc.

5.  Built on pneumatic structure.It can execute the whole packaging process like bag making, fabric folding and fabric loading automatically. Compact and reasonable designed with pleasant extrinsic feature.



- Application





Alcohol Prep Pad, Disinfection towel, Sanitary towel, Skin care towel, PVP prep pad, Lens towel, Nail Polish remover pad, BZK towel.



- Our Advantages

No.1 High Speed and Efficient in this industry

Save Energy and Labor

PLC controlling system

Mainframe analog stepless speed regulation

The accuracy of the liquid is up to 0.02g

Temperature module controls temperature accurately

the temperature accurately

Cursor positioning, stable operating



- Technical Parameters

Spec:WSH55-1(Left-to-Right Folding)

Alcohol Swab	Packet Size	L:50-60mm
		W:47-50mm
	Packet Material	Foil
	Pad Size	L:30-60mm
		W:30-60mm
	Pad Material	Non-woven



Spec:WSH6375-1(Left-to-Right Folding)

Alcohol Swab	Packet Size	L:60-75mm
		W:63mm
	Packet Material	Foil
	Pad Size	L:45-90mm
		W:45-90mm
	Pad Material	Non-woven

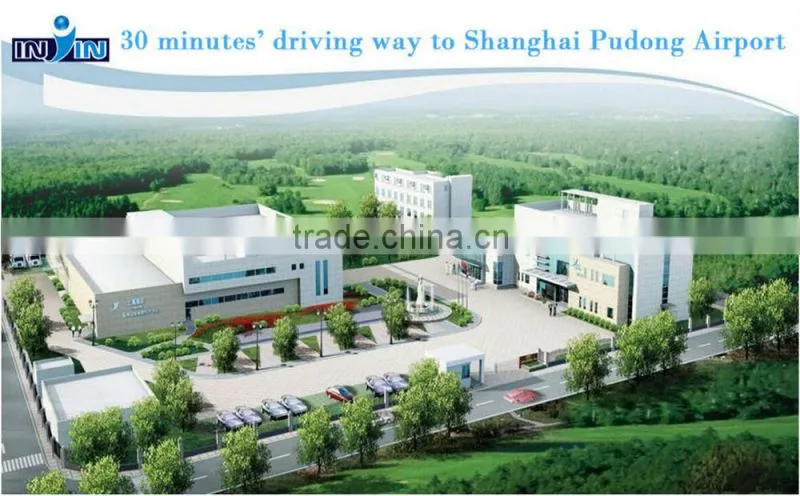

  - Yinjing Facility
