M700 very small size infrared thermal imaging camera/small thermal imager for sale

FOB Price

USD $1 - $2,000 / Piece

1 Piece(Min.Order)

Supply Ability 1000 Piece / Pieces per Month
Port Shanghai
Payment Terms:T/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:	Zhejiang, China	Brand Name:	SCTI	Model Number:	M700
Type:	Analog Camera	Style:	Mini Camera	Sensor:	Other, infrared sensor
Technology:	Infrared	Special Features:	Other, infrared

Product Description

M700 very small size infrared thermal imaging camera/small thermal imager for sale

Product features,

1. No shutting non-uniformity calibrating technology

2. Super lower power consumption: <0.65W

3. Instantaneous boot: <3S

4. Low working voltage: 2.5V-5.5V

5. Small size and light weight

6. High performance of temperature impact and environmental adapability

Applications,

Security and protection monitoring field, such as harbor, wharf, highway, coast defence and border defence, oil and gas field.

Technical parameters of M700 INFARAED TERMAL IMAGING MODULE

Items	Core	M700
Detector characteristic	Detector	Uncooled amorphous silicon FPA
	Array format/Pixel pitch	384×288 / 17um
	Sensitivity	≤60mk at f/1.0 300K
	Frame rate	50Hz
	Spectral range	8~14um
Imaging process	Shutter calibration	No shutter technology
	Booting time	<3s
	Noise reduction	Digital filter
	Image resolution	768×576
	Lens option	12mm,19mm,25mm,35mm,40mm,50mm,75mm,100mm
Thermal imaging adjustment	Polarity	White hot /Black hot
	Mirror image	Horizontal/Vertical
	Zoom	×2,×4
	Manual Gain	Cycle adjustment
	Auto Gain	Auto adjustment
Power	Working voltage range	DC: +2.5V~+5.5V
	Typical voltage	DC:3.6V
	Power consumption	<0.65W
	Anti reverse voltage	Yes
	Anti over voltage	Yes
Environmental parameters	Working temperature	-20ºC~+60ºC
	Working temperature	Optional:-40ºC~+60ºC
	Storage temperature	-45ºC~+65ºC
	Humidity	5%~95% Non condensing
	Vibration and shock	Vibration:GJB 150-16 2.3.1
		Axial:GJB 150-18 Experiment:7 100g/6ms
		Lateral:GJB 150-18 Experiment:5 40g/11ms
	Anti temperature impact	-5ºC/min(-40ºC~+60ºC)
Physical parameters	Weight	<40g
Physical parameters	Dimension	42.5mm×41mm×20mm
Interface	Power input port	Yes
	Serial port	RS-232
	Analog video output	BNC(75Ω);Support dual video output
	Digital video output	16Bit(50Hz)
	Keyboard	4 buttons keyboard

M700 very small size infrared thermal imaging camera/small thermal imager for sale

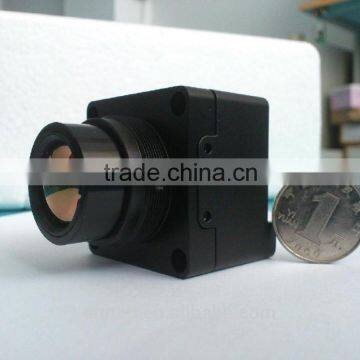

M700 infrared thermal imaging core

Analog video output

Plastic packing cases of different specifications

Company information

Established in the year of 2011 and headquarter located in Hangzhou, our company is mainly engaged in developing and producing thermal image technologies, thermal optical system. We have developed and built up long-term and trustworthy business relationship with our customers from all over the world.
