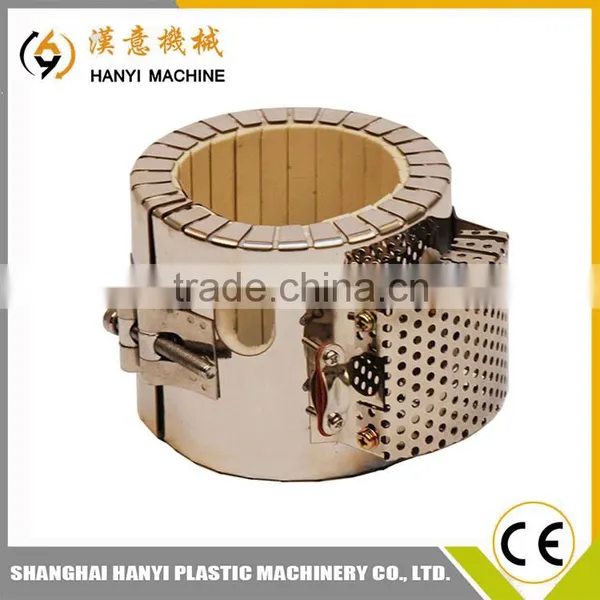

Hi-tech waterproof Immersion Bath Band Heater Element
- 5000 Set / Sets per Month
- Shanghai
- T/T
- Heater Core Heater Welding Gun Heater Element
- Industrial Diesel Heater /Agricultural Vegetable Planting/Aquaculture Industry Heater
- Preheating equipment for hardbandig welding
- Heater Core Heater Welding Gun Heater Element
- DL-3 model electric air heater with upper outlet and lower inlet
- DL-2 model electric air heater with Left-Right Circulation
Product Details
Condition: | New | Type: | Band Heater | Power Source: | Electric |
Place of Origin: | Shanghai, China | Brand Name: | Hanyi | Model Number: | ML-503 |
Dimension(L*W*H): | 125*208 | Weight: | 0.5kg-2kg | Voltage: | 220V/200V |
Power(W): | 200w--1500w | Certification: | CE | Warranty: | 1 Year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
(The Japanese customer visit in the factory!)
Feature:
1. High temperature/voltage resisting and good insulation provide by Belgium mica plates.
2. Fast & even heat-dissipation and perfect high temperature/voltage resisting provide by imported heating filament from Europe.
3. Using inner hexagonal screws for tight fixing and easy setting.
4. Japan stainless steel of good quality gives good appearance, homogeneous heat-dissipation and high temperature resisting to the heaters.
5. Comprising imported magnetic connection base and Japan heatproof cover protective wire.
Technical Specification:
1. Working condition: environment temperature: -20℃~+60℃
2. Electric field strength: last for 1 min without any penetrating while being test with electrified sine AC (1500V/50HZ).
3. Leakage current: <5mA
4. Insulation resistance: >50MΩ
5. Ground resistance: <10Ω
6. Temperature durability: surface temperature can reach 500℃ without any burnt phenomena when working.
7. Power deviation: ±10%
Installation and Operation Notes:
1. The contact surface of the installing position should be flat without any accidented phenomena.
2. To keep the best insulation, this electric heating device should be kept in dry condition and from dipping into water.
3. Check before installation whether the specifications of the installing position and the working voltage matches this electric heating device or not.
4. To avoid expansion and shrinkage affect the working life, check after installation whether the inner hexagonal screws, the screws of connect base and the wire-connecting screws are screwed up firmly or not.
5. This electric heating device should work under appointed voltage and a transformer should be a plus.
1.Professional after-sale service team can provide distant service guidance of video etc.
2.The ability of researching and designing independently can provide customized productions according to the customer’s requirements.
3.Can provide OME.
4.Can provide small quantities of productions.
Q:What types of heaters can your company currently provide?
A: The types of heaters we provide currently are band heater and ceramic heater.
Q: How many years has your company produced the electric heater? What is your annual output?
A: We produce the electric heater with more than 20 years’ experiences. The annual output is up to 60 thousand pieces.
Q: How to ensure the quality of the electric heater?
A: Our electric heaters use the Japanese "Sliver" brand heating wire and the "VONROIL" brand mica plate, the quality of raw materials is stable, the quality of the electric heater can be guaranteed.
Q: What are the differences between our electric heaters with the other brand products?
A: 1.Long life. 2 Heating up fast
Q: How long can the electric heaters use for?
A: Normally for more than 8000 hours of continuous use.
Q: What are the main customers?
A: Our main customers are Japanese companies, such as: TOSIBA, NISSEI, SUMITOMO, JSW etc.
