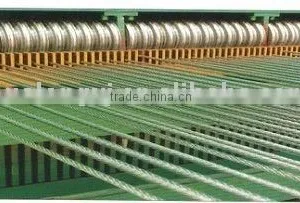

GX Steel Cord Conveyor Belt

Name: GX Steel Cord Conveyor Belt
Brand: JUHANG
SKU: 115128915

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Place of Origin:

Shandong, China

Brand Name:

JUHANG

Qingdao Shenghualong Rubber Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

QINGDAO PORT

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Shandong, China

Brand Name JUHANG

Model Number GX

Specifications

1.quality management system certification of conformity.
2.safety certificate of approcal.for mining products.

Technical data for GX steel cord conveyor belt

Reference data thickness specification n	GX630	GX800	GX1000	GX1250	GX1600	GX2000
Reference data thickness specification n	6+7+6	6+7+6	6+7+6	6+7+6	7+9+7	7+9+7
Elongation tensile strngth (N/mm)	630	800	1000	1250	1600	2000
Max.diameter of cord(mm)	4.5	4.5	4.5	4.5	6.0	6.0
Pitch of cord(mm)	20	17	13.5	11	20	16
Thickness (mm)	19	19	19	19	23	23
Reference weight t(kg/m2)	23.9	21.3	25	25.7	32.2	33.7
Width (mm)	Cord number
800	38	45	56	69	38	47
1000	48	56	70	87	48	60
1200		68	86	104	58	72
1400			100	122	66	84
1600			116	140	76	95
1800			127	157	86	108
2000			142	173	96	120
2200						132
2400						146
2600						158
2800						170

Reference data thickness specification n	GX2500	GX3000	GX3500	GX4000	GX4500	GX5000
Reference data thickness specification n	8+11+8	8+12+8	8+12+8	8+13+8	8+14+8	8+14+8
Elongation tensile strngth (N/mm)	2500	3000	3500	4000	4500	5000
Max.diameter of cord(mm)	7.2	8.3	8.7	9.1	9.7	10.9
Pitch of cord(mm)	17	18	18	17	16	17
Thickness (mm)	27	28	28	29	30	30
Reference weight t(kg/m2)	40.2	41.9	43.6	46.6	49.8	51.8
Width (mm)	Cord number
800	44	43
1000	56	53	53	56	60	56
1200	68	64	64	68	72	68
1400	78	74	74	79	84	79
1600	90	85	85	90	96	91
1800	102	96	96	101	107	103
2000	113	107	107	113	120	114
2200	125	118	118	125	133	125
2400	177	129	129	137	146	137
2600	148	140	140	148	158	148
2800	160	151	151	160	170	160
