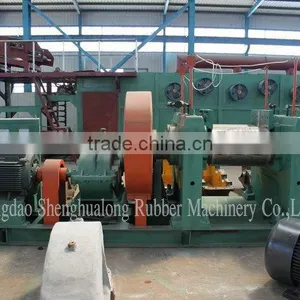

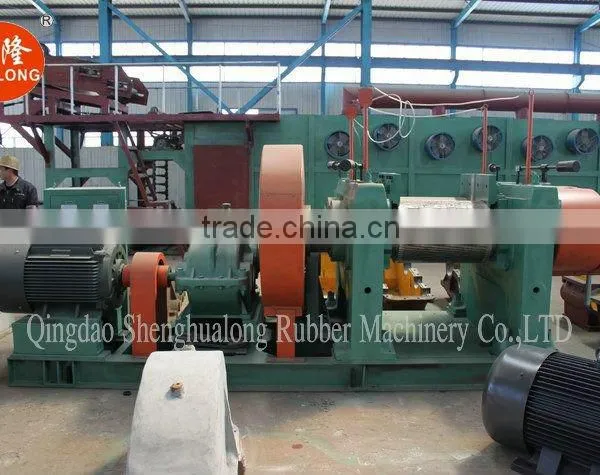

Help CenterDouble Roller Rubber Crushing Mill / Used Rubber Recycling Machine
Related Products
-
XKP Rubber Crushing Mill With High Quality//With Good ReputationNegotiableMOQ: 1 -
Rubber Crushing Mill/rubber Cracker MillNegotiableMOQ: 1
-
XKP Series Rubber Crushing Mill With ISO9001 and CENegotiableMOQ: 1
-
XKP-560 Rubber Cracker Mill /rubber Crusher With High Capacity and EffectiveNegotiableMOQ: 1
-
XK-660 Rubber Mixing Mill/open Mixing Mill/two Roll MillNegotiableMOQ: 1
Specifications
Rubber crusher
The roll is made of chilled cast iron with spun casting.The roll face is hard and anti-wear.
Rubber crusher
1) The roll is made of chilled cast iron with spun casting.The roll face is hard and anti-wear.(Rolls of G mode are made of high grade steel with hard alloy welded on the surface)The back roll is fluted.The internal cavity of the roll is processed to make temperature well poportioned on the roll surface.
2) The machine is equipped with and overload protection device to prevent the major components from being damaged due to overloading.
3) The machine is also equipped with an emergency device.when an emergent accident happens,just draw the safety pull-rod,and the machine will stop immediately.it is safe and reliable.
|
Type Technical parameter |
XKP-560 |
Front roll diameter(mm) |
560(510) |
Rear roll diameter(mm) |
510(560)(Groove roller) |
Working length of rolls(mm) |
800 |
Front roll surface speed(m/min) |
25.56 |
Friction ratio |
1:1.30 |
Max.nip(mm0 |
15 |
Motor power |
75(90) |
Overall dimension: length×Width×Height(mm) |
5064×2284×1978 |
