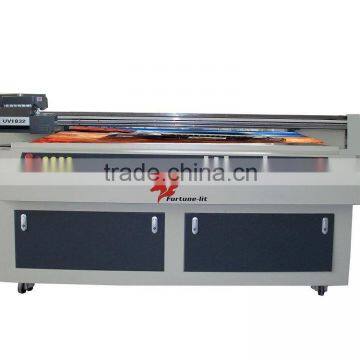

UV Flatbed Printer

FOB Price

Negotiable / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Plate Type	Flatbed Printer
Place of Origin	Jiangsu, China	Brand Name	smart colour
Usage	Other, Rigid media include corrugated , foam core,gatorboards , sintra(PVC) ,	Automatic Grade	Automatic

Basic Characteristics
Print technology	Piezo continuous drop-on demand(DOD)
Locating Mode	raster/servo
Print Height Adjustment	automatic
Ink Barrel	Refillable on the fly while printing/ 4000ml per color
Ink Feature	UV curable inks
Print Head Controls	Temperature and head voltage control by software
Cleaning System	automatic cleaning system
Media Handling	Sheet to Sheet
Heating system	UV lamp
RIP Software	PHOTOPRINT5FLORA Edition( WINDOWS 2000 , WINDOWS XP PRO SP2 )
Color management	ICG based color,adjustment curves,density adjustment
File Formats	TIFF,JPEG,POSTSCRIPT3,EPS,PDF,etc.
Electrical Requirements	50HZ/60HZ 220V-240V, 30A Max.
Operation Environment	temperature :18-28 / humidity : 40-70
Technical specifications
Model	FTL1432-4/5/7/10
Printing Heads	KONICA/512/14pL printhead
Quantity of Head	4/5/7/10(KONICA/512)
Color	CMYK/CMYK+W/CMYK +LC +LM +W
Resolution option	360 × 360dpi,720360dpi, 720 × 720 dpi ,7201440dpi,1440 × 1440DPI
Printing Speed	Stand speed: 18sqm/h Working speed:11sqm/h High resolution speed:8sqm/h
Media Width	140cm × 320cm
Media Height	15cm Max
Media Types	Rigid media include corrugated , foam core,gatorboards , sintra(PVC) , ceramic tiles , glass , plexiglass , wood , sheet metal , roll to roll include paper , vinlys,adhesive back vinyls,fabrics,etc.
Dimension	140X320CM
Weight	1000kg
