Rubber Kneader
1 Quickly and effciency fluxing.
2 PLC Control.
3 Great Start Torque.
Application:

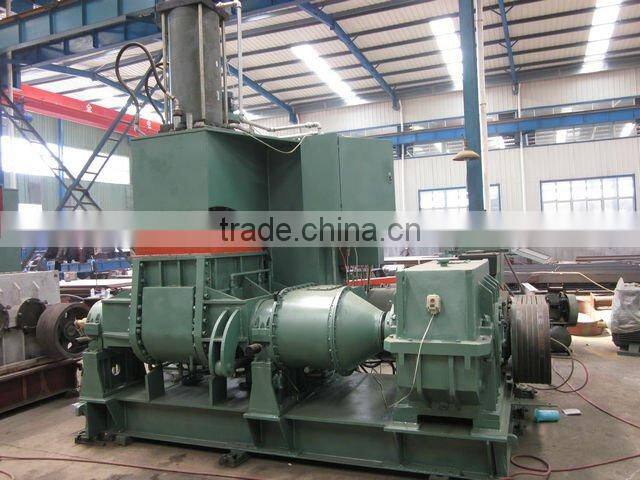

This intensive mixer has a wide range of applications, including in mixing and refining Raw materials, such as synthetic rubber, raw rubber, asphalt, resin, PVC or EVA into even mixed stock.
Features:
1. Rubber kneader with completely sealed condition,materials are mixed or plasticated under certain pressure,controllable temperature ,which makes high production effciency and obtains excellent quality.

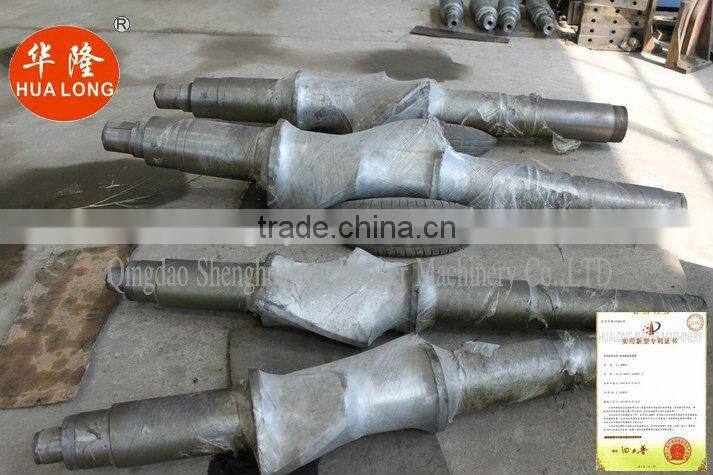

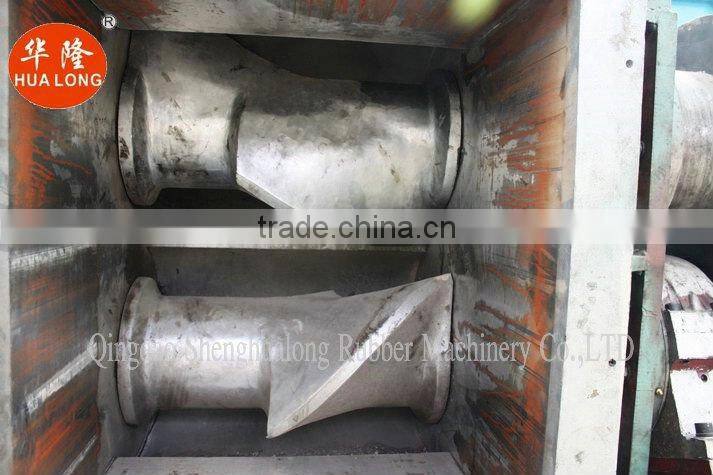

2. Spiral angle and over lapping length of the blades of the rotors are of reasonable design and make the materials to bedispersed uniformly.
3. Surface where is contacted with the materials are all platedwith hard chromium and polished,which is corrosion-resistantand wear-resistant.
4. Jacket construction is adopted in parts that surfaces contactwith materials to achieve excellent water-cooling or steamheating effect and fit in with the needs of plastics and rubberprocessing technology.
5. Feeding from back door on the frame (or a separate top door)is convenient for continuous process operation in aproduction line. The mixing chamber is able to turn forward by 140 aroud the frond rotors to discharge and is easy for changingpigments and cleaning the chamer.
6.Programmable logic controller (PLC) is adopted in theelectric-control system,which has reliable control function andalarm function,and interlock safety-protection function and itis procded with serial interface of net.
Main Technical Parameters:
Type |
X (S)N35 |
X(S)N55 |
X(S)N75 |
X(S)N110 |
Total Volume of mixing chamber(L) |
75 |
125 |
180 |
250 |
Working Volume of mixing chamber(L) |
35 |
55 |
75 |
110 |
Driving motor power(KW) |
55 |
75 |
110 |
185 |
Tilting motor power(KW) |
5.5 |
5.5 |
5.5 |
7.5 |
Tilting angle |
110 |
110 |
110 |
110 |
Rotational speed of the rotor(front/rear) |
36/30 |
36/30 |
36/30 |
30/24.5 |
Pressure of compressed air(Mpa) |
0.6-0.8 |
0.6-0.8 |
0.6-0.8 |
0.6-0.8 |
Cooling wate presssure (Mpa) |
0.3~0.4 |
0.3~0.4 |
0.3~0.4 |
0.2~0.4 |
Size:length×Width×Height |
3150×1900×2880 |
3280×2120×3090 |
3250×2210×3250 |
4075×2712×3580 |
