12V 170 Degree Mini Color CCD Reverse Car Camera Rear View Camera Night Vision

12V 170 Degree Mini Color CCD Reverse Car Camera Rear View Camera Night Vision photo-1
US$ 6.6 - 7.55 MOQ: 40 Sets
Key Specifications
Get Latest Price
Type:
Reverse Camera
Voltage:
DC 12V
Place of Origin:
Guangdong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Type Reverse Camera
Voltage DC 12V
Place of Origin Guangdong, China
Model Number SV002782

Specifications

1.12V CCD Reverse Car Camera
2.Resolution: 756(H)x720(V) Pixel
3.Horizontal resolution: 480TVL

12V 170° Mini Color CCD Reverse Car Camera Rear View Camera Night Vision



12V 170 Degree Mini Color CCD Reverse Car Camera Rear View Camera Night Vision12V 170 Degree Mini Color CCD Reverse Car Camera Rear View Camera Night Vision12V 170 Degree Mini Color CCD Reverse Car Camera Rear View Camera Night Vision12V 170 Degree Mini Color CCD Reverse Car Camera Rear View Camera Night Vision12V 170 Degree Mini Color CCD Reverse Car Camera Rear View Camera Night Vision12V 170 Degree Mini Color CCD Reverse Car Camera Rear View Camera Night Vision

Features:

  • 100% Brand New.

  • Dimensions with bracket : ca. 24mm x 29mm x 38mm

  • Dimensions only camera : ca. 18mm x 18mm x 22mm

  • Waterproof, Can be used both in car and home

  • 170° wide viewing angle

  • Applicable to variety of Vehicles: car, truck, RV, mini-van etc

  • Can help avoid incidents and accidents abrasion well

  • Compact design and easy to install

Specifications:



  • Image sensor: Color 1/3" Sensor CCD

  • TV system: NTSC/PAL

  • Resolution: 756(H)×720(V) Pixel

  • Horizontal resolution: 480TVL

  • (Front) No mirror function/(Rear) mirror function

  • Automatic White Balance

  • automatic backlight compensation

  • Minimum illumination 0.2 lux only

  • RCA video output Vpp/75Ohm

  • Operating on 12V DC / ca. 200mA

  • Operating Temperature: -20°C~ 60°C, RH95% Max

  • Storage temperature: -30°C ~ 60°C, RH95% Max

  • Video cable length: 6m

  • Power supply cable length: 1.5m

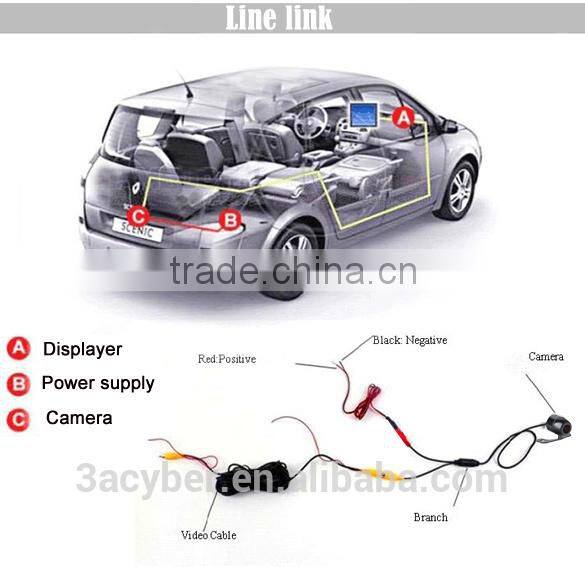

Installation:

    • Use the hole driller to mount the camera at the back of the car (on the license plate back window or other suitable place)



  • Connect the power of the camera to your reverse lights - red wire to positive and black wire to negative.

  • Connect the video cable of the camera to the extension cord.

  • Connect the extension cord to your car monitor.

  • You will see the images when your car is in reverse shift.

  • NOTE: it can  support NTSC and PAL system!

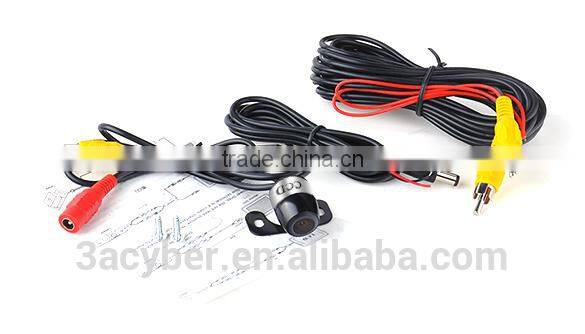

Package Content:

  • 1 x Car Rear View Camera

  • 1 x Video Cable

  • 1 x Power Cable

  • 2 x Screws

  • 1 x English user manual
