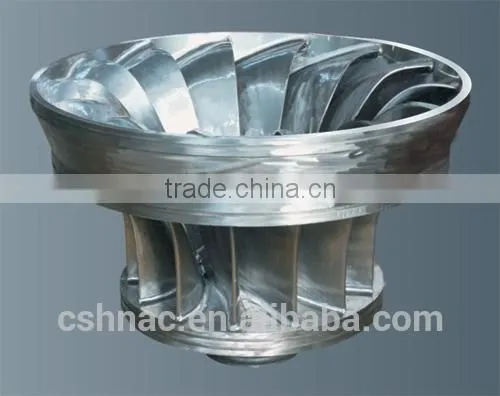

Francis Water Turbine
Francis turbine is a kind of turbine suit to water head 20-300meters and with certain suitable flow.
It could be divided into vertical and horizontal arrangement. Francis turbine have the advantage of high efficiency, small size and reliable structure.

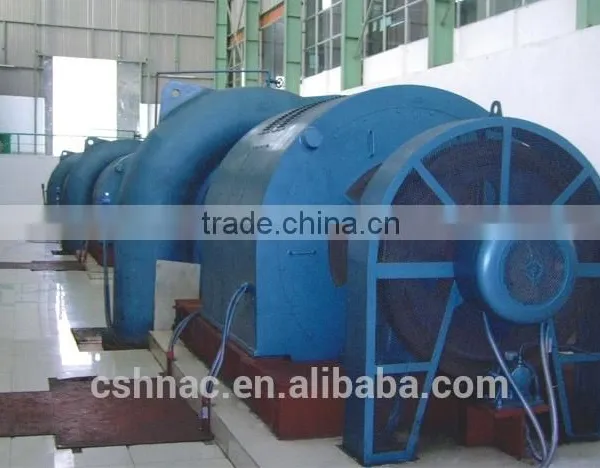

1. Horizontal Francis turbine unit, with horizontal shaft, could be two or three supports. It is normally simple in structure and easy for operation and maintainence.
2. Vertical Francis turbine unit, with vertical shaft, metal spiral case or concrete spiral case. With adjustable guide vane, and stay ring etc parts, it is suitful for the runner with diameter bigger than 1000mm. Our engineer will select the most suitable Francis turbine for your hydro power project.
- Power: 20kw~200Mw
- Frequency: 50hz or 60hz
- Output Type: AC three phase
- Lifespan: 30~50years
- Water head range:15~700m
- Voltage:400v, 3.3KV, 6.3KV, 10.5KV or 13.8K
HNAC Advantages
1. HNAC is the complete Chinese hydropower equipment supply, consulting and engineering design venture in the field of hydropower equipment. We provide the high quality Chinese hydropower equipment with advanced technologies and integrated services to meet the global hydropower markets.
2. With our Integrated Services concept, we provide you with customized support from project planning through implementation to plant commissioning and service. Our principle: Customer’s project is our project , customer’s success is our success.
3. HNAC covers the services, complete equipment supply, economic solution of the global hydropower projects and aims to be the best global supplier of hydropower equipment as well as the best integrated services provider on the hydropower markets.
