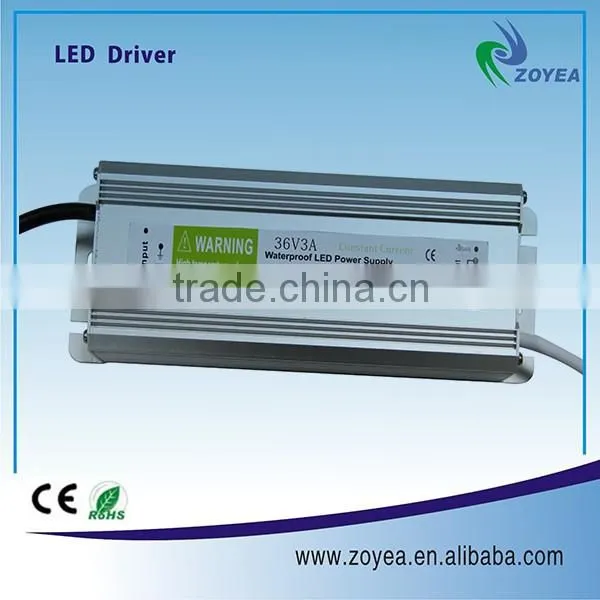

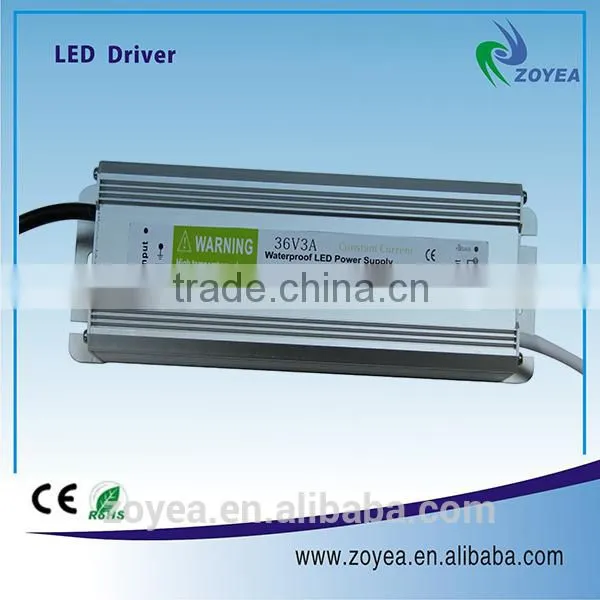

Help CenterChina Waterproof Constant Current Led Driver for Led Street Lighting 100w
Related Products
-
150w 4500ma Waterproof Constant Current Led Power Supply With CE and RoHs ApprovedUS$ 20.1 - 24.5MOQ: 1 Piece -
120w 1800ma Constant Current Waterproof Led Driver for Led Lighting With CE and RoHs ApprovedUS$ 13.5 - 16.7MOQ: 1 Piece
-
120w 2500ma Waterproof Constant Current Led Power Driver With CE and RoHs ApprovedUS$ 13.5 - 16.7MOQ: 1 Piece
-
120w 3600ma Waterproof Constant Current Led Driver With CE and RoHs ApprovedUS$ 13.5 - 18.6MOQ: 1 Piece
-
120w 4300ma Waterproof Constant Current Led Driver for Led Lighting With CE and RoHs ApprovedUS$ 13.5 - 16.7MOQ: 1 Piece
Features:
1. Constant current mode power supply
2. Universal AC input(100-240V)
3.Withstand 300VAC surge input for 5seconds
4. Protections:Short circuit/Over load/Over current
5. Cooling by free air convection
6. 100% full load burn-in test
7. High Reliability
8. Meet RoHS/CE
9. 2 year warranty
Specification: transformer led
| Model | FSC-100 | |||
| Output | Dc Voltage | 18-34V | ||
| Rated Current | 3A | |||
| Voltage Range | 85-265V | |||
| Rated Power | 100W | |||
| Ripple&Noise(Max) | 150mV | |||
| Voltage Tolerance | ±4% | |||
| Setup,Rise Time | 100ms/220VAC | |||
| Hold Up Time(Typ.) | 80ms/220VAC | |||
| Input | Voltage Range | 170~250VAC | ||
| Frequency Range | 47~60Hz | |||
| Power Factor(Typ) | PF>0.68/220VAC | |||
| Efficiency(Typ) | 89% | |||
| Protection | Short Circuit | Protection type recovers automatically after fault conditions is removed | ||
| Overlaod | Overload protection@145~160%above peak rating | |||
| Over Temperature | protection typer shut down o/p voltage.re-power on to recover | |||
| Environment | Working Temp | -30~ +60°C(Refer to output load derating curve) | ||
| Working Humidity | 20~90%RH no-condensing (Waterproof) | |||
| Storage Temp Humidity | -40~ +80°C,10~90%RH | |||
| Safety&Emc | Safety Standards | CE Mark(LVD),IP67 | ||
| Withstand Voltage | I/P-O/P 1.5KVAC IP-GND 1.5KVAC | |||
| Emc Test Standards | EN 55015 2006; EN 61547 1995+A1 2000 ;EN 61000-3-2 2006; EN61000-3-2 1995+A2 2005 EN 61347-1 2008 EN 61347-2-13 2006 |
|||
| Connect the line request | Input:H03VV-F 3G*0.75mm Brown&blue&kelly VDE(200mm) Output:H03VV-F 2*0.75mm Black & Red VDE(200mm) | |||
| NOTE | 1.All parameters NOT specially mentioned are measured at 220VAC input,rated laod and 25°C of ambient temperature. | |||
| 2.Ripple&noise are measured at 20MHz of bandwidth by using a12''twisted pair-wire terminated with a 0.1uf&10uf parallel capacitor. | ||||
| 3.Tolerance:includes set up tolerance,line regulation and load regulation. | ||||
| shiOthers | Dimension | 180*70*40(mm)(L*W*H) | ||
| Carton Quantity | 20PCS/Carton | |||
| Carton Size | 430*210*265mm | |||
| Weight | 0.87kg/pcs | |||
Shenzhen Zoyea LED Technology Co., Ltd. is mainly engaged in manufacturing LED waterproof power supply,LED switching power supply,Led rainproof power supply and LED strips. We have factory of about 10000 square meters and an office of about 300 square meters in the beautiful seaport city - Shenzhen City, Guangdong, China.

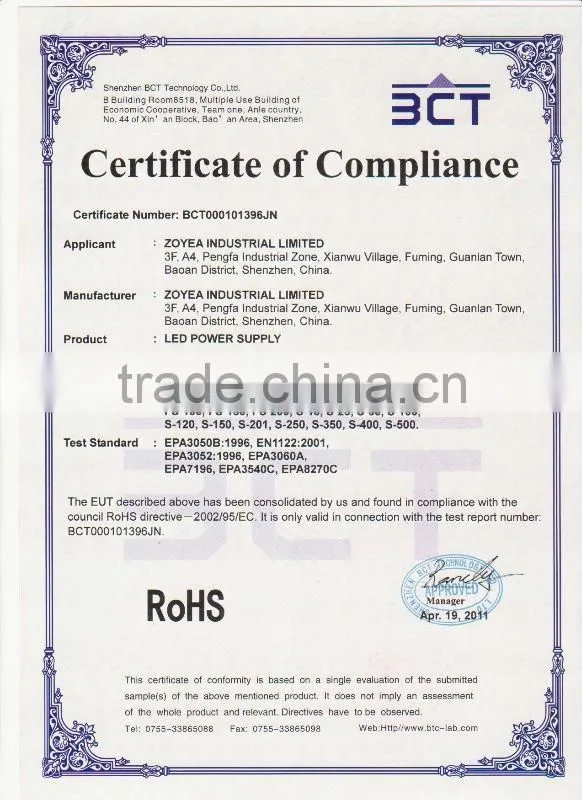

Our company with maturity QA system and reliable QC ability, owning leading production equipments and processes, as well as full ranges of testing and inspection equipments.Our company operates under the management of ISO9001:2000 system, all of our products have passed the CE certificate and ROHS requirement .Products have been exported to more than thirty countries and regions, such as the USA, Europe, Southeast Asia, South America, etc.
Our Aim: Continually developing new and innovative products
Our Commitment: remaining at the forefront in product quality and service
Our Advantages: advanced manufacturing technologies, the best & competitive price
Our Slogan: the quality of Zoyea,all loved in the world.
We can provie OEM and ODM service. We trust we are a good partner with you and hope to establish long-term cooperative relationships with customers.
We are looking forward to hearing from you ! Your inquiries will be promptly replied!
