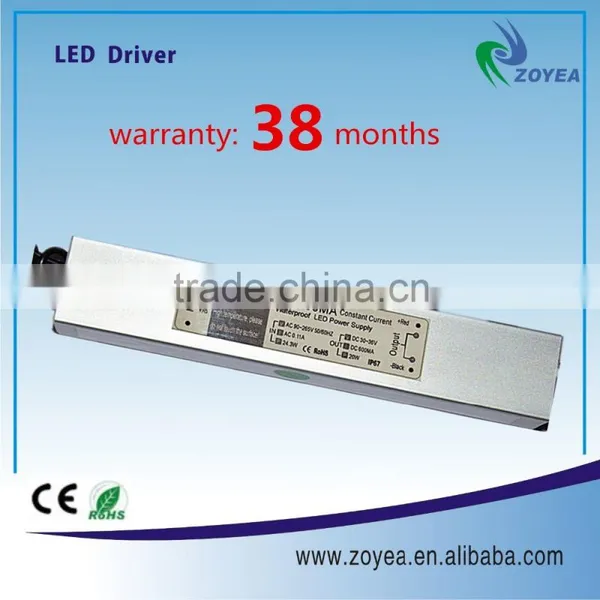

20w 600ma Switch Led Power Supply for Led Light Supplier's Choice

Name: 20w 600ma Switch Led Power Supply for Led Light Supplier's Choice
Brand: Zoyea
SKU: 115103183
Availability: InStock

US$ 1.02 - 3.87 MOQ: 1 Piece

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

Zoyea

Model Number:

FS-20

Shenzhen Zoyea LED Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name Zoyea

Model Number FS-20

Output Power Other, 20w

Output Type Single

Input Voltage Other, 85V-277V

Output Voltage 18-34V

Output Frequency 47~60Hz

Output Current 600mA

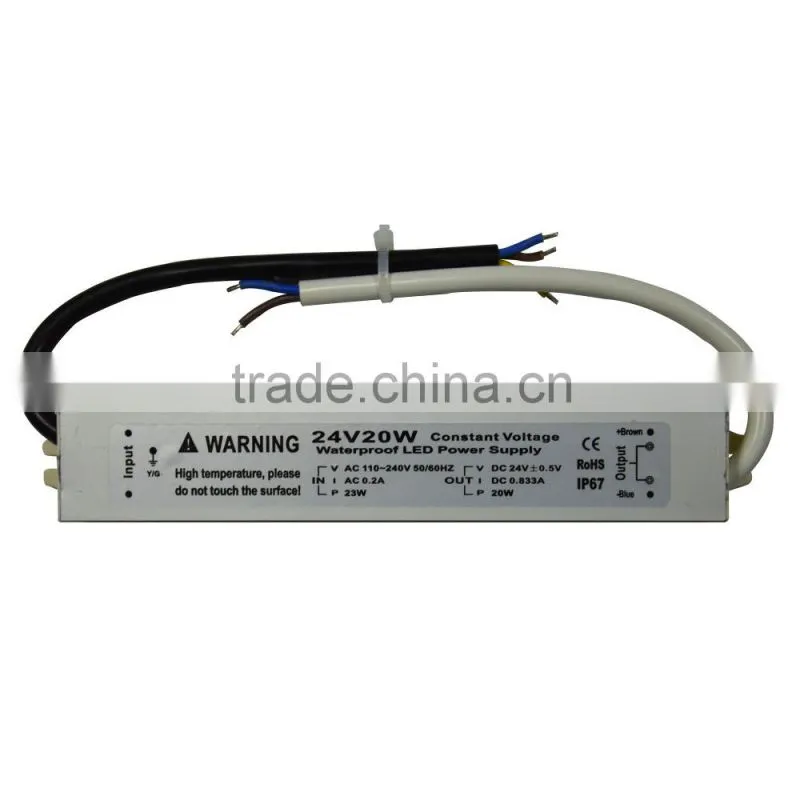

20w 600ma switch led power supply for led light

More Products:

20w 0.3A led driver 20w 0.6A led transformer 120w 24v standard led driver

20w 12v led power supply 20w ip67 led driver

Product Description

Specification

Model		FSC-20
Output	Dc Voltage	18-34V
	Rated Current	0.6A
	Voltage Range	18~34V
	Rated Power	20
	Ripple&Noise(Max)	150mV
	Current Tolerance	±4%
	Setup,Rise Time	100ms/220VAC
	Hold Up Time(Typ.)	80ms/220VAC
Input	Voltage Range	85~277VAC
	Frequency Range	47~60Hz
	Power Factor(Typ)	PF>0.95
	Efficiency(Typ)	88%
Protection	Short Circuit	Protection type,recovers automatically after fault conditions is removed
	Overlaod	Overload protection@145~160%above peak rating
	Over Temperature	protection typer, shut down o/p voltage.re-power on to recover
Environment	Working Temp	-30~ +60°C(Refer to output load derating curve)
	Working Humidity	20~90%RH no-condensing (Waterproof)
	Storage Temp Humidity	-40~ +80°C,10~90%RH
Safety&Emc	Safety Standards	CE Mark(LVD),IP67
	Withstand Voltage	I/P-O/P;.5KVAC IP-GND;.5KVAC
	Emc Test Standards	EN 550152006; EN 615471995+A12000 ;EN 61000-3-22006; EN61000-3-21995+A22005 EN 61347-12008 EN 61347-2-132006
Connect the line request	Input:H03VV-F 3G0.75mm Brown&blue&kelly VDE(200mm) Output:H03VV-F 20.75mm Black & Red VDE(300mm*2)
NOTE	1.All parameters NOT specially mentioned are measured at 220VAC input,rated laod and 25°C of ambient temperature.
	2.Ripple&noise are measured at 20MHz of bandwidth by using a12''twisted pair-wire terminated with a 0.1uf&10uf parallel capacitor.
	3.Tolerance:includes set up tolerance,line regulation and load regulation.
Others	Dimension	1695131(mm)(LWH)
	Carton Quantity	20PCS/Carton
	Carton Size	802521mm
	Weight	0.02kg/pcs
