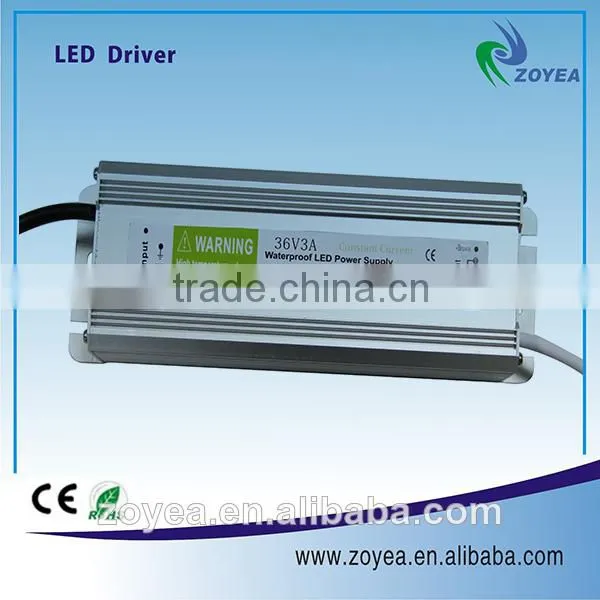

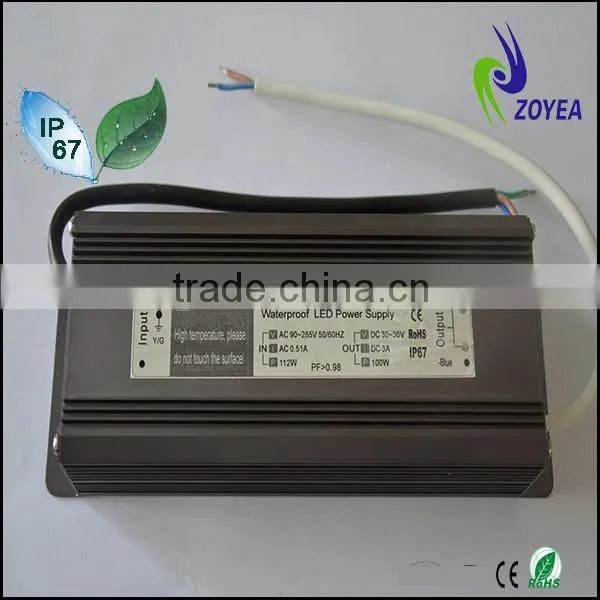

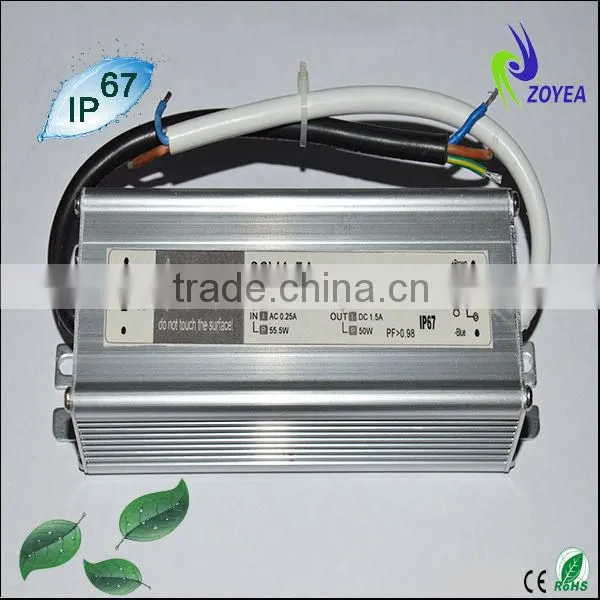

China Manufacturer Waterproof Constant Current Dimmable Led Driver

Name: China Manufacturer Waterproof Constant Current Dimmable Led Driver
Brand: ZOYEA
SKU: 115098807

US$ 23.31 - 23.4 MOQ: 1 Piece

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

ZOYEA

Model Number:

FSC-100D

Shenzhen Zoyea LED Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name ZOYEA

Model Number FSC-100D

Output Power Other, 100

Output Type Single

Input Voltage Other, 90V-265V

Output Voltage 30V-36V

Output Frequency 47-63HZ

Output Current 3A

Specifications

nstant current dimmable led driver
2. Input Voltage: 90V-264V

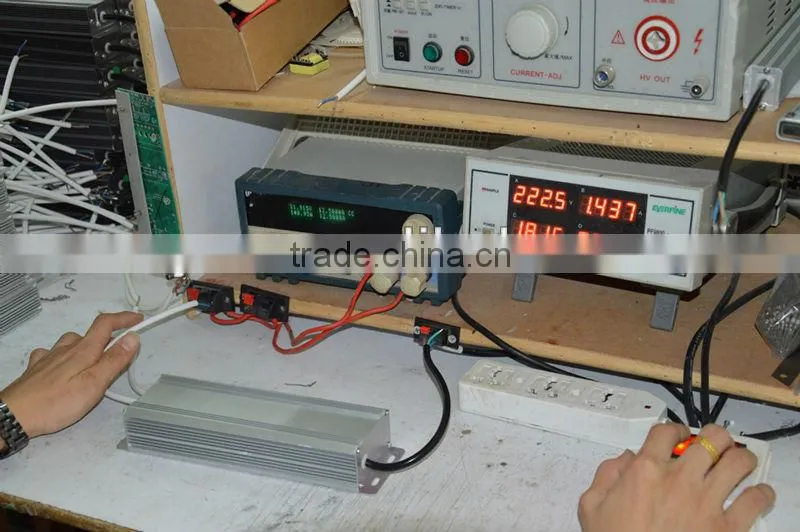

3. 100% load test
4. 2 years warranty
5. CE&ROHS

China manufacturer waterproof constant current dimmable led driver

Product Description

Product Electric Parameters
Input specification	Input voltage	AC90V---264V
	Input frequency	47-63Hz
	Input surge	20A@120VAC 40A@230VAC
Output specification	Start-up time	leq1S (230V Input,Io=100%)
	keep time	more than or equal to 20mS (230V Input,Io=100%)
	Voltage regulation	(full)leq0.5%
Protection function	Overload protection	105% - 150% rated power, automatic recovery
	Over-voltage protection	105% - 150% of the rated voltage
Insulation intensity	Input---output	1500VAC/1min
	Input--ground	1500VAC/1min
	Output---ground	500VAC/1min
Safety standards	According with GB4943, UL60950-1,EN60950-1 standards.
E M C standards	According with GB9254, EN55022 class A EN61347-2-13:2008 standards
Environmental	working temperature	- 20 ° ~ 60 ° c / 20% ~ 90% RH (no frost)
	Storage temperature	- 40 ° ~ 85 ° c / 10% ~ 95% RH (no frost)
	height above sea level	leq2000M
Structure	Size (mm)	160(L)70(W)*40(H)
Cooling method	Cooling method	Natural cooling air convection
Weight	0.93KG/PCS
