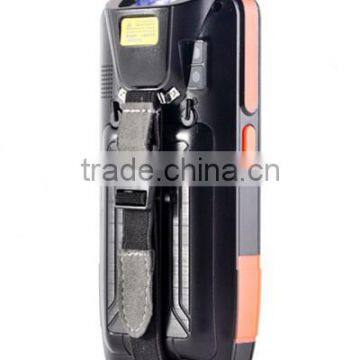

Help CenterCARIBE PL-40L Aa101 Cost-effective Mobile Data Collector Gsm Station Scanner With GPRS/GPS
Related Products
-
CARIBE PL-40L Aa100 Handheld Computer Data Collector Wireless Mobile Smart Card Reader With GPRS/3G/GPSUS$ 250 - 500MOQ: 1 Piece -
CARIBE PL-40L Aa098 Wireless Portable Barcode Scanner Data Capture Machine With Memory,GPRS/3G,GPSUS$ 250 - 500MOQ: 1 Piece
-
CARIBE PL-40L Aa097 Touch Screen Rugged Handheld PDA Smartphone Rfid Reader With GPS/3G/WifiUS$ 250 - 500MOQ: 1 Piece
-
CARIBE PL-40L Aa094 Wireless Portable Barcode Scanner Industrial Terminal With Memory,GPRS/3G,GPSUS$ 250 - 500MOQ: 1 Piece
-
CARIBE PL-40L Aa093 Rugged Smartphone Barcode With SIM Card Slot/GPRS/3G/GSM/Phone FeaturesUS$ 250 - 500MOQ: 1 Piece
4.0inch android data terminal pda with wifi,bluetooth,3G,GPRS,GPS and barcode scanner
Product data sheet
PL-40L technical specifications
Physical Parameter |
|
Size |
152mm(L)×77mm(H)×29mm(W) |
Weight |
<300g |
Display Screen |
Color 4.0 inch QVGA imitative glass durable touch screen TFT-LCD, 650000 colors, 480*800 (QVGA size) The brightness of LED Backlight is adjustable |
Expand Port |
SIM card, PSAM card(optional), Micro SD (TF) Card |
Communication Interface |
USB2.0 Device, RS-232(Optional) |
Input Mode |
Standard Stylus, Handwriting, touching input or keyboard input |
Battery Capacity |
Rechargeable Li-polymer Battery 3.7V 4000mAh Optional |
Frequency |
8Ω 1W speaker |
Key |
21pcs soft silicon key |
Performance Parameter |
|
CPU |
Dual-Core ARM Cortex-A9 Dual-core 1.5G |
RAM |
1G RAM(2G is optional) |
Flash ROM |
Standard 4G NAND Flash Storage Micro SD/TF port (Max up to 32G) |
Data Communication |
|
WI-FI |
Support IEEE802.11b/g protocol, it need effective wireless LAN signal cover |
WCDMA |
UMTS2100/900MHz UMTS1900/850MHz GSM850/900/1800/1900MHz |
CDMA2000 |
CDMA2000 1x,CDMA2000 EV-DO Rev 0,CDMA2000 EV-DO Rev A Supports BC0(800MHz band),BC1(1900MHz band) |
Bluetooth |
Support Bluetooth 2.0+EDR, transmission distance is 5-10m |
Operating Environment |
|
Operating Temperature |
—20℃ to 50℃ |
Storage Temperature |
—25℃ to 70℃ |
Environment Humidity |
5%RH--95%RH(no condensation) |
Drop Specifications |
6 sides can bear impact from 1.5m drop to cement floor in the range of operating temperature |
Roll Specifications |
1000 times/0.5m, roll on 6 sides contact area |
Sealed Environment |
IP65 |
Development Environment |
|
Operating System |
Android4.1 |
SDK |
exclusive use software development kit |
Supported Language |
JAVA |
Development Tool |
Eclipse |
A one-dimensional bar code collect |
|
One dimensional CCD scanners |
Symbol SE655 |
Resolution |
5Mil minimum width |
Ambient Light |
0ft.candles-10000ft.candles |
Scanning Speed |
50/sec |
Scanning Angle |
53º±3º |
Support Bar Code Type |
UPC/EAN, Bookland EAN, Code 128, Code39, Code 93,Code 11, Interleaved 2 of 5,Discrete 2 of 5, Chinese 2 of5, Matrix 2 of 5,Inverse 1D, MSI, Gs1 DataBar, etc. |
One dimensional laser scanner |
Minde 966(standard),Symbol SE955 |
Resolution |
4Mil minimum width |
Ambient Light |
10000ft.candles(107640 lux) |
Scanning Speed |
104(±)12/sec (bothway) |
Scanning Angle |
47º±35º(Standard) / 35º±3º(narrow angle) |
Support Bar Code Type |
UPC/EAN, Code128, Code39, Code93,Code11, Interleaved 2 of 5, Discrete 2 of 5,Chinese 2 of 5, Codabar, MSI, RSS |
Two-dimensional bar code acquisition |
|
CMOS Scanner |
Honeywell 3680/Newland EM3095 |
The Sensor Resolution |
752(level)×480(vertical)pels(gray level) |
Ambient Light |
All dark 9000ft.candles/96900 lux |
Focus element (VLD) |
655nm ± 10nm |
Support bar code type |
PDF417,MicroPDF417,Composite, RSS,TLC-39, Datamatrix, QR code, Micro QR code,Aztec, MaxiCode; Postal Codes: US PostNet,US Planet, UK Postal, Australian Postal, JapanPostal Dutch Postal (KIX)3 |
RFID |
|
LF |
125K/134K;ISO11784/ISO11785 protocol |
HF |
13.56MHz;ISO14443A/B protocol |
Camera |
Hd 5 million pixels, with LED, automatic focusing |
GPS |
Support A-GPS |
