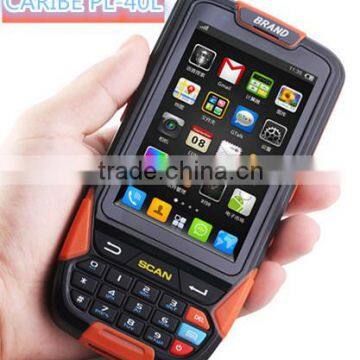

CARIBE PL-40L Ac022 Good Quality Wireless Rfid Reader Android Personal Digital Assistant

Physical Parameter

Size

152mm(L)×77mm(H)×29mm(W)

Weight

<300g

Display Screen

Color 4.0 inch QVGA imitative glass durable touch screen

TFT-LCD, 650000 colors, 480*800 (QVGA size)

The brightness of LED Backlight is adjustable

Expand Port

SIM card, PSAM card(optional), Micro SD (TF) Card

Communication Interface

USB2.0 Device, RS-232(Optional)

Input Mode

Standard Stylus, Handwriting, touching input or keyboard input

Battery Capacity

Rechargeable Li-polymer Battery 3.7V 4000mAh Optional

Frequency

8Ω 1W speaker

Key

21pcs soft silicon key

Performance Parameter

CPU

Dual-Core ARM Cortex-A9 Dual-core 1.5G

RAM

1G RAM(2G is optional)

Flash ROM

Standard 4G NAND Flash Storage

Micro SD/TF port (Max up to 32G)

Data Communication

WI-FI

Support IEEE802.11b/g protocol, it need effective wireless LAN signal cover

WCDMA

UMTS2100/900MHz

UMTS1900/850MHz

GSM850/900/1800/1900MHz

CDMA2000

CDMA2000 1x,CDMA2000 EV-DO Rev 0,CDMA2000 EV-DO Rev A

Supports BC0(800MHz band),BC1(1900MHz band)

Bluetooth

Support Bluetooth 2.0+EDR, transmission distance is 5-10m

Operating Environment

Operating Temperature

—20℃ to 50℃

Storage Temperature

—25℃ to 70℃

Environment Humidity

5%RH--95%RH(no condensation)

Drop Specifications

6 sides can bear impact from 1.5m drop to cement floor in the range of operating temperature

Roll Specifications

1000 times/0.5m, roll on 6 sides contact area

Sealed Environment

IP65

Development Environment

Operating System

Android4.1

SDK

exclusive use software development kit

Supported Language

JAVA

Development Tool

Eclipse

A one-dimensional bar code collect

One dimensional CCD scanners

Symbol SE655

Resolution

5Mil minimum width

Ambient Light

0ft.candles-10000ft.candles

Scanning Speed

50/sec

Scanning Angle

53º±3º

Support Bar Code Type

UPC/EAN, Bookland EAN, Code 128, Code39, Code 93,Code 11, Interleaved 2 of 5,Discrete 2 of 5, Chinese 2 of5, Matrix 2 of 5,Inverse 1D, MSI, Gs1 DataBar, etc.

One dimensional laser scanner

Minde 966(standard),Symbol SE955

Resolution

4Mil minimum width

Ambient Light

10000ft.candles(107640 lux)

Scanning Speed

104(±)12/sec (bothway)

Scanning Angle

47º±35º(Standard) / 35º±3º(narrow angle)

Support Bar Code Type

UPC/EAN, Code128, Code39, Code93,Code11, Interleaved 2 of 5, Discrete 2 of 5,Chinese 2 of 5, Codabar, MSI, RSS

Two-dimensional bar code acquisition

CMOS Scanner

Honeywell 3680/Newland EM3095

The Sensor Resolution

752(level)×480(vertical)pels(gray level)

Ambient Light

All dark 9000ft.candles/96900 lux

Focus element (VLD)

655nm ± 10nm

Support bar code type

PDF417,MicroPDF417,Composite, RSS,TLC-39, Datamatrix, QR code, Micro QR code,Aztec, MaxiCode; Postal Codes: US PostNet,US Planet, UK Postal, Australian Postal, JapanPostal Dutch Postal (KIX)3

RFID

LF

125K/134K;ISO11784/ISO11785 protocol

HF

13.56MHz;ISO14443A/B protocol

Camera

Hd 5 million pixels, with LED, automatic focusing

GPS

Support A-GPS
