Help CenterZhuzhou OriginCemented Carbide Brazed Tips for the Machining of Hardening Steel
Related Products
-
Tungsten Carbide Welded Tipped Tools for Nonferrous MetalsUS$ 40 - 85MOQ: 10 Kilograms -
Ss10 Cemented Carbide TipsUS$ 40 - 85MOQ: 10 Kilograms
-
SS10 Tungsten Carbide Tips for IndiaUS$ 40 - 90MOQ: 10 Kilograms
-
SS10 Tungsten Carbide Tips for Cutting ToolsUS$ 40 - 90MOQ: 10 Kilograms
-
Ss10 Tungsten Carbide Material Carbide Teeth for Tricone BitUS$ 55 - 70MOQ: 5 Kilograms
Specifications
Cemented carbide brazed tips for processing heat resistant stainless steel1.good wear resistance
2.high abrasion resistance
Zhuzhou originCemented carbide brazed tips for the machining of hardening steel
General information
A kind of hot process composite material for surface refurbishing and making,capable to provide comprehensive coatings to enhance the wear resistance,thermal resistance,corrosion resistance and impact resistance of prot surface and special coatings of sealing,insulation and super-condution.
Advantages of our products:
1. high abrasion resistance
2. corrosion resistance
3. A comprehensive range of types
4. reasonable price
Grade & application for welding tips
Grade |
ISO Code |
Density |
Hardness |
T.R.S |
Applications recommended |
YG3 |
K05 |
15.10 |
92.0 |
1400 |
Suitable for finishing of cast iron and nonferrous metal. |
YG6X |
K10 |
14.95 |
91.5 |
1800 |
The finishing & semi-finishing of cast iron and nonferrous metals and also for the machining of manganese steel and hardening steel. |
YG6 |
K15 |
14.95 |
90.5 |
1900 |
Suitable for the roughing of cast iron and light alloys and also for the milling of cast iron and low-alloy steel. |
YG8 |
K20 |
14.80 |
89.5 |
2200 |
|
YW1 |
M10 |
13.10 |
91.6 |
1600 |
Suitable for finishing and semi-finishing of stainless steel and conventional alloy steel. |
YW2 |
M20 |
13.00 |
90.6 |
1800 |
The grade can be used for the semi-finishing of stainless steel and low-alloy steel and it is mainly used for the machining of railway wheel hubs. |
YT15 |
P10 |
11.4 |
91.5 |
1600 |
Suitable for the finishing and semi-finishing for steel and cast steel with a moderate feed rate and rather high cutting speed. |
YT14 |
P20 |
11.6 |
90.8 |
1700 |
Suitable for the finishing and semi-finishing of steel and cast steel. |
YT5 |
P30 |
12.9 |
90.5 |
2200 |
Suitable for the heavy duty rough turning of and cast steel with a big feed rate at a medium and low speed under unfavorable working conditions. |

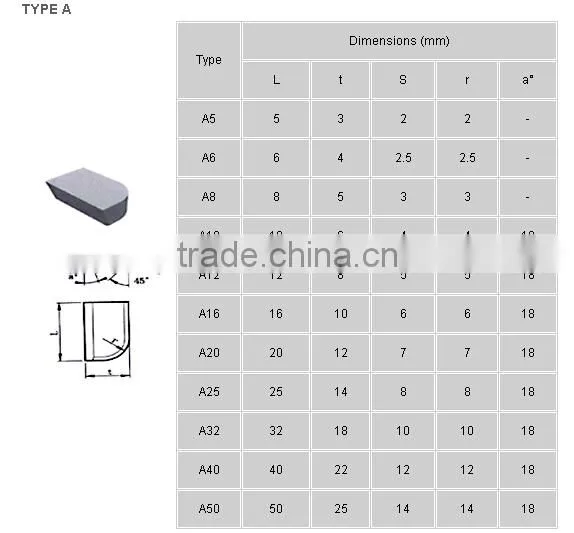

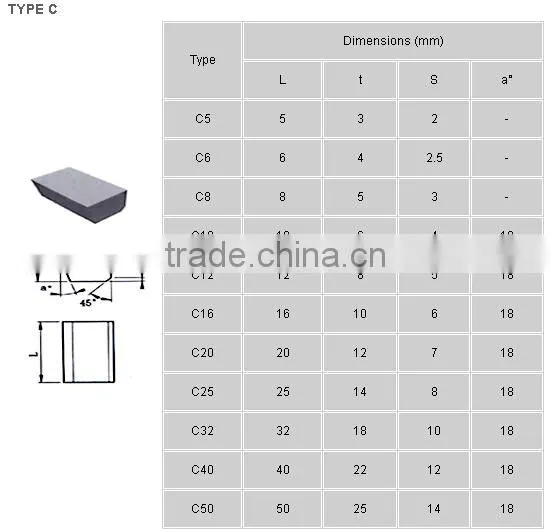

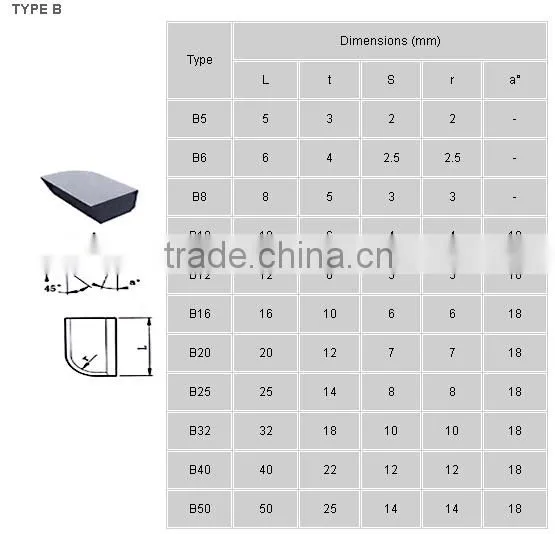

Types & sizes of
Zhuzhou Mingri Cemented Carbide Co., Ltd was established in 2001 with the investment of RMB 40 million. We own up-to-date production line, advanced equipment, and technicians.
We specialize in cold forging die cores, brazed tips, disc cutters, plates and boards, saw tips, round rods, rock drilling bits and buttons, milling tools, geological exploration drill tool, etc.
Our main overseas markets:
1. Europe,UK, North Europe, Russia,
2. Latin America, Brazil, America,
3. South Asia, India, South-east Asia, Japan, Taiwan, etc
Advantages of our factory are as follows:
1. Focusing on manufacturing tungsten carbide products over 13 years.
2. Specialist manufacturer equipped with advanced processing machines and over160
technicians
3. Over 50 tons/month productivity to assure sustainable supply of products
4. Owing mould workshop to design & produce moulds for nonstandard products, and with
mould stocks over 10 thousand sets for different products.
5. Full ability to accept OEM & ODM orders
6. Stringent quality control and quality consistency.
7. Professional mechanical & chemical inspecting labs to control the quality of raw material and
inspect physical & mechanical properties of finished products.
Quality of our products:
1. Mingri has been awarded ISO9001:2008 and ISO14001Environment Management
Certificate
2. Strict quality control system to make sure it can match your needs.
3. We own a factory, products manufactured by ourselves and OEM products available
according to your drawings or samples.
Welcome to have a visit to our factory!
Advantages of services:
1. free technical support online, provide you with expert help
2. fast feedback on your quotation and much better after-sale services
3. cooperating with excellent express delivery companies such as DHL, EMS etc to ensure swift
delivery
4. quality and quantity assured
5. sample or trail order available
6. fluent and comfortable English speaker
Should you be interested in our products, welcome to contact me! You will surely get a satisfactory response with both speaking and writing in fluent English
