Good heat dissipation 4w led bulb light for both overseas and domestic market

Specifications

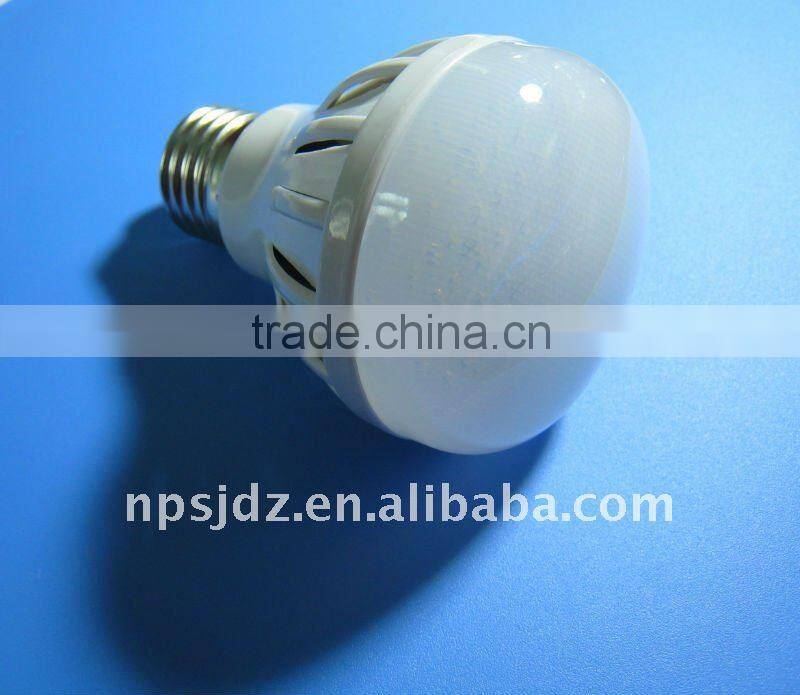

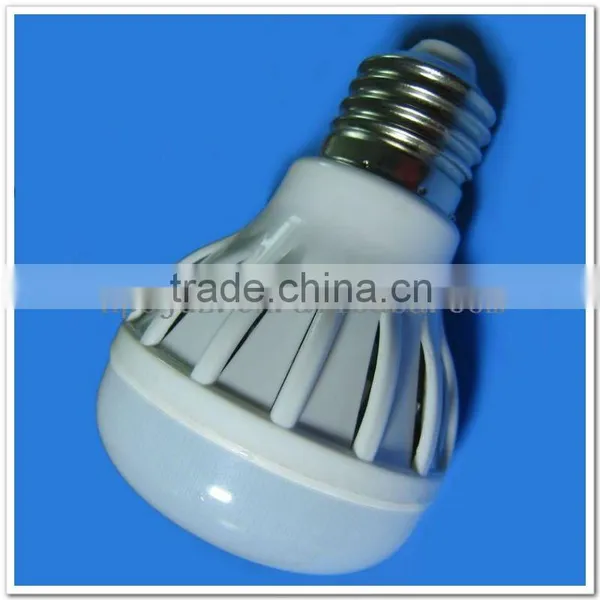

Good heat dissipation led bulb light
1.High brightness,low power consumption
2.Long lifetime,
3.Elegant
4.98% no light decay



Good heat dissipation 4w led bulb light for both overseas and domestic market   Specification

(1)Type: SJ-DPW-04-004

(2)Lifetime:50000 H
(3)Power:4.0W(Equivalent to 60W incandescent)

(4)Dimension:61×H92mm

(5)Light case material:milky  PC flame retardant and ABS Matte

(6)Light source: POWER LED

(7)Total flux: white 330Lm warm white 300Lm
(8)Base type:      E27

(9)Color render index:  (CRI) White, Ra≥ 80; Warm white, Ra≥ 85
(10)Power factor: >0.5 White,4000K~8000K; Warm white,3000K~4000K
(11)Input voltage: AC85-264V

(12)Temperature rise: ≤50°C°
(13)Work efficiency:  50-60HZ

(14)Operating Humidity:  ≤90%
(15)Viewing angle:  150°

(16)Work temperature:  -20-65 °C

(17)Storage temperature: -40~+80°C
(18)Ambient temperature: 15- +38°C

(19)Quality Guarantee :    three years



Feature

(1)This 4w bulb light is using high quality thermal dissipation design to maximize heat dissipation area; its unique look is based on the modern streamline, which is in line with the popular aesthetic and also create a perfect and classic shape. So it can replace conventional incandescent lamps and energy-saving lamps.

(2)Adopting high quality and low light failure, low power, high efficiency, high antistatic 3014 lamp beads as light source, the bulb light is energy saving and environmental protection, long life, up to 50,000 hours or more, impact resistance and anti-vibration. It is a new generation green high-tech products with large angle, colorful light effects.

(3)The bulb light has unique assembly and high-strength acrylic cover design. The bulb light case adopts PC flame retardant and ABS Matte , fine extruding. The reasonable optical design and the use of light shade material whose transmittance has been up to 90%  effectively improve the illuminance and brightness.

(4)Thermal RMS ≤ 5.99 °C / w (2h/Trth),good heat dissipation. The temperature of the bulb light case is below 65°(Working temperature under ambient temperature 25°-30°), it is secure to use .

(5)The drive power adopts high efficiency constant current driver circuit, the conversion efficiency is ≥ 90%, it can be suitable for the traditional mains voltage with stable and reliable performance .

(6)The bulb light does not have infrared light and ultraviolet light, no glare, no radiation, no harm to the human body. The light is soft and pure with colorful light effects. Using electromagnetic compatibility design, it is a good way for decoration because of its environmental protection, which will help recovery and utilization.

(7)Color index is high with good color. The presentation of colors is more real and more vivid, and the identification of colors is also very good. Its viewing angle is 150 °, which is more in line with the application requirements of traditional lighting.

(8)The size and the installation method is consistent with the traditional lamp, so it can be installed directly on the lighthouse which is for the traditional lamp. It can also match the E27 lights.



Trade Terms

1. Payment: T/T,30% deposits before production,70% balance to be paid before delivering

2. Sample can be delivered in 7days

3. Shipping freight are quoted under your requests

4. Shipping port: Fuzhou Mainland China

5. Discounts are offered based on other quantities



Notes:

1.Cut off the power before installation to prevent electrical shock

2.Avoid installing the heat source and thermal steam, corrosive gas, so as not to affect the life

3.Please use voltage in strict accordance with label use may cause incorrect connection of voltage lamps permanent damage

4.Make sure that the installation location can take 10 times the weight of the product. Installed in the no vibration, no swing, no fire hazards flat areas.

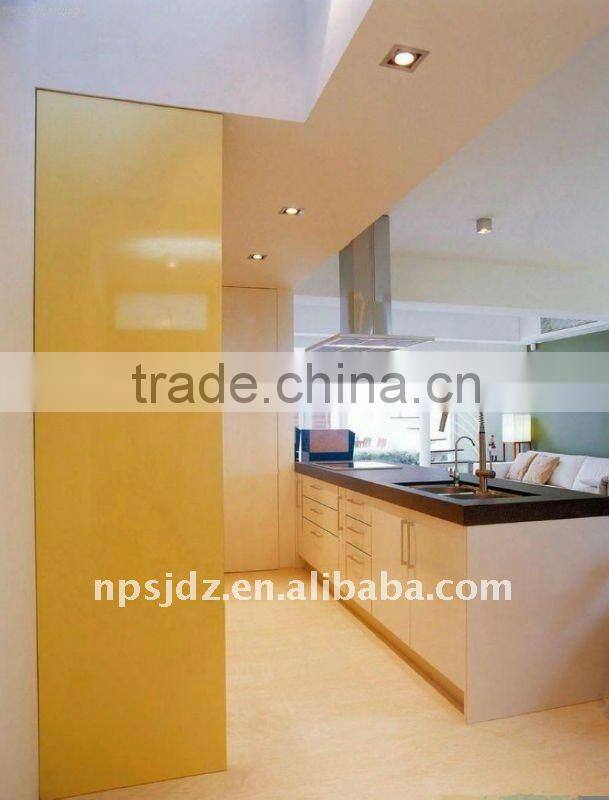

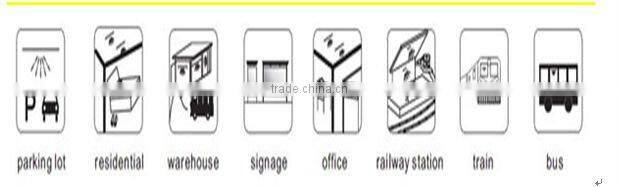

Application:
