Specifications

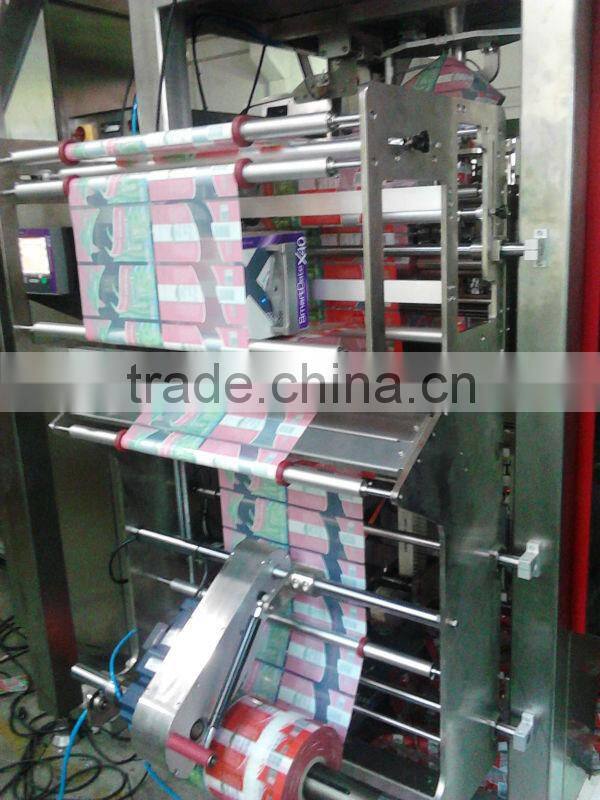

vertical packaging machine for "Doypack"

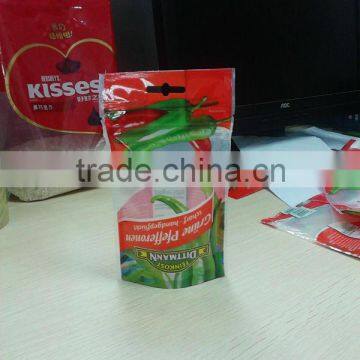

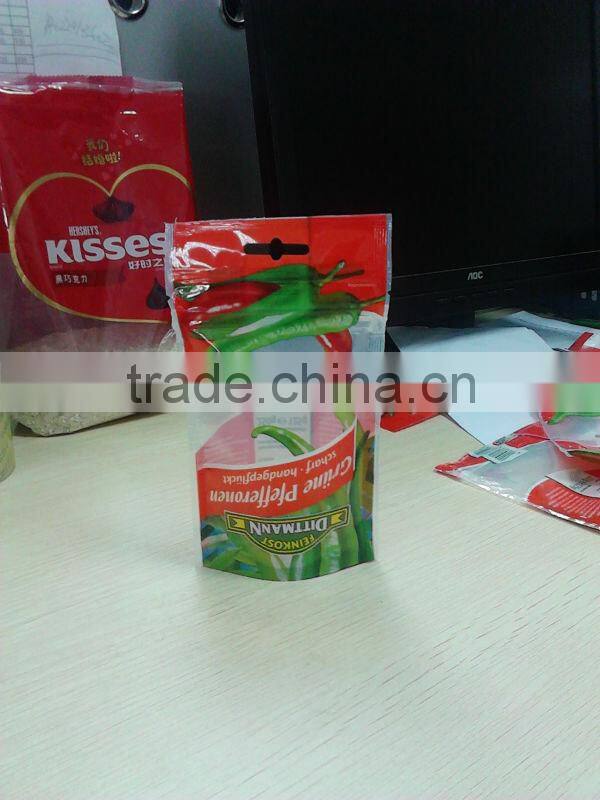

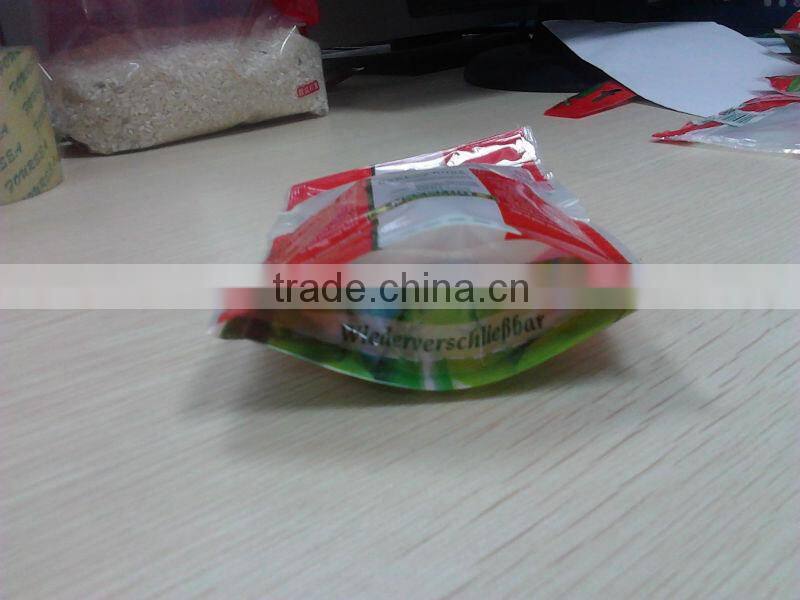

produce stand-up doypack , standard pillow bags and flat bottom bags,etc.
doypack packaging machine
Description:
1)Highlights the product with great effect and real cost saving in comparison with the traditional premade bag
packaging machine and carton packers.
2)Produce stand -up doypack, standard pillow bags and flat bottom bags, 3-side and 4-side sealling possible .
3)Former changes take only a few minutes .
4)Automatics PLC program set-up and interactive touch screen panel.
5)Dual vacuum adsorption film pulling belts controlled by servo motor, film draw with tension control.
6)zipper application optional possible.
Application:
The automatic vertical form fill seal packaging machine pack almost all granule, powder and liquid material ,such as: sweets, puff snack food, potato chips, crispy rice, jelly, candy,, dumpling, small cookie, milk powder, liquid and non-food, etc
Machines parts and system accessaries :
Material feeding funnel

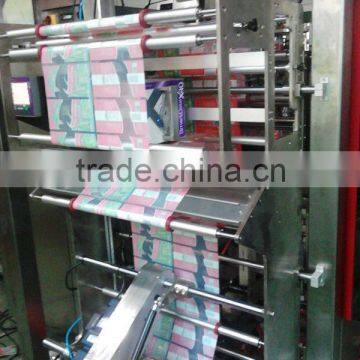

Film roll unwinding system with motorize control

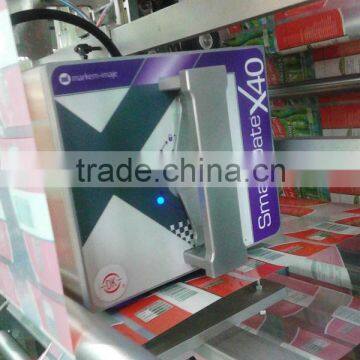

Date printing device
Encoder bag length control and eye-mark tracking

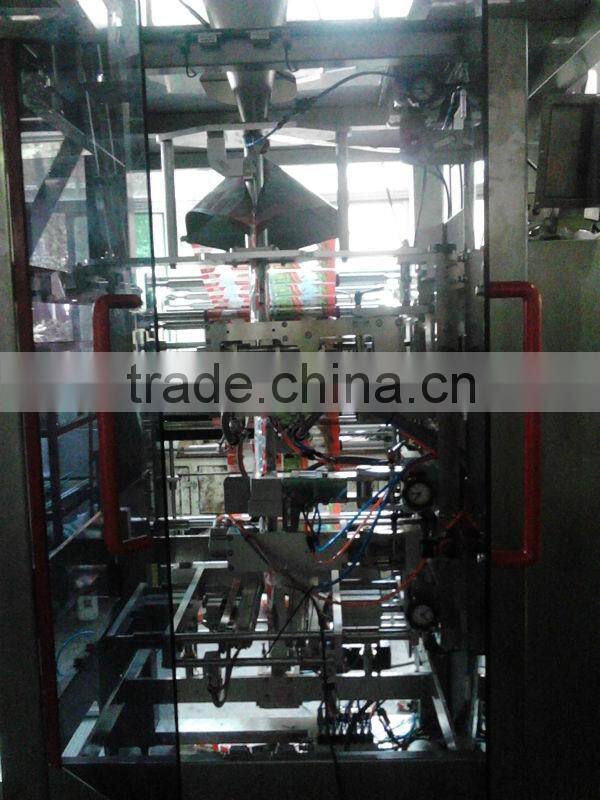

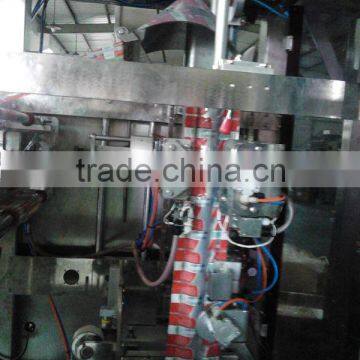

Bag forming, filling and sealing
Bag cutting and finish bag exit
Key Features of VFFS:
♦Servo motor driven pull belts
♦PLC based, 7 inch touch screen parameter adjustment
♦Pneumatically operated horizontal sealing jaws
♦PID digital temperature control
♦Motorized film unwinding system
♦Encoder bag length control Photo cell for bag eye-mark registration
♦One forming assembly for fast changeover bag size, no tools need.
♦Safety guard with safety switch
♦Air regulator, filter and lubricator
♦Automatic pneumatic air purge
Benefits and Advantages for packing machine:
♦Solid performance, excellent packing quality, great user experience
♦Reliable and compact, the simple design of the baggers make them easy to set-up, operate, and maintain.
♦One of the most affordable baggers on the market, the series offer great value with an excellent ROI.
♦Designed for low cost of maintenance using off-the-shelf parts. Interfaces easily with auxiliary equipment.
Technical data :
| Model | VFFS 700W/FZ |
| Capacity(bags/min) | ≤40 |
| Film Width(mm) | ≤700 |
| Power supply | AC220,50/60HZ,1-phase |
| Weight | 30 | 100 | 150 | 500 | 1000 |
| Width(mm) | 80 | 120 | 160 | 190 | 240 |
| Length(mm) | 130 | 200 | 230 | 265 | 335 |
| Bottom Gusset(mm) | 40 | 60 | 70 | 90 | 100 |
