double films packaging machineTwo laminated films can be different material, printing,character...
Double films packaging machine
Application:
The automatic vertical form fill seal packaging machine pack almost all granule, powder and liquid material ,such as: sweets, puff snack food, potato chips, crispy rice, jelly, candy,, dumpling, small cookie, milk powder, liquid and non-food, etc
Features:
l Programable PLC control system with touch screen interface

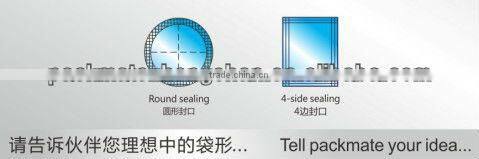

l Flexible and customized bag shape at 4-side seal and round seal
l Innovation design of 2 reels set on both sides of a vertical packing machine.
l Two laminated films can be different material, printing, character
l Mechanical film matching device
l Automatic eye-mark tracking by fiber sensor
l Automatic synchronization on both films unwind system
l No traditional collar former is needed to form the bag
l Servo motor driven pull belts at D motion sealing jaw without drawing belt
Technical data :
| Model | VFFS80F-D | VFFS-350F-D |
| Bag size(mm) | W≤80,L≤100 | W≤175,L≤200 |
| Film Width (mm) | ≤80 | ≤350 |
| Capacity(bags/min) | ≤50 | ≤30 |
| Sealing Style | 4-sides,round seal | 4-sides,round seal |
| Power Supply | AC220,50/60HZ,1-phase | AC220,50/60HZ,1-phase |
Machines parts and system accessaries :
- Material feeding funnel
- Film roll unwinding system with motorize control
- Date printing device
- Photo sensor eye-mark tracking
- Bag forming, filling and sealing
- Bag cutting and finish bag exit
Key Features of VFFS:
- Servo motor driven pull belts at D motion sealing jaw without drawing belt
- PLC based, 7 inch touch screen parameter adjustment
- Pneumatically operated horizontal sealing jaws
- PID digital temperature control
- Motorized film unwinding system
- Photo cell for bag eye-mark registration
- Safety guard with safety switch
- Air regulator, filter and lubricator
- Automatic pneumatic air purge
Benefits and Advantages for Complete system:
- Solid performance, excellent packing quality, great user experience
- Reliable and compact, the simple design of the baggers make them easy to set-up, operate, and maintain.
- One of the most affordable baggers on the market, the series offer great value with an excellent ROI.
- Designed for low cost of maintenance using off-the-shelf parts. Interfaces easily with auxiliary equipment.

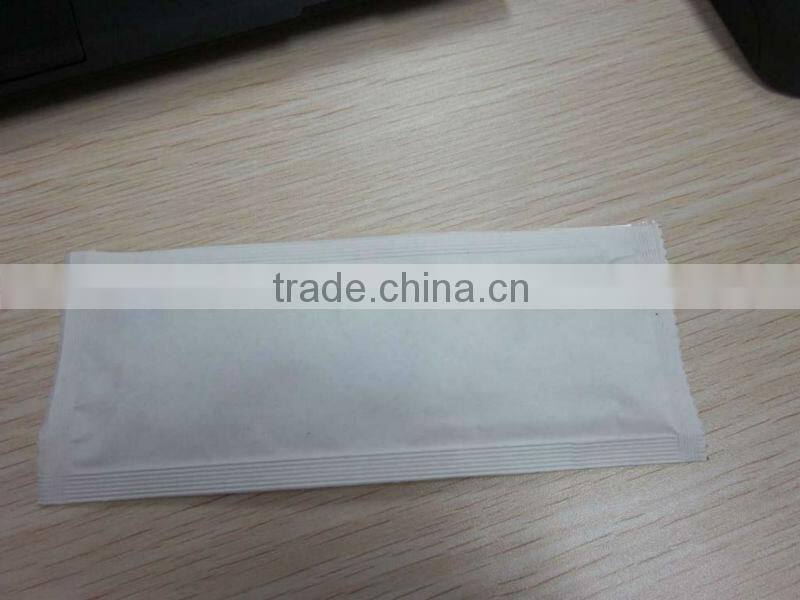

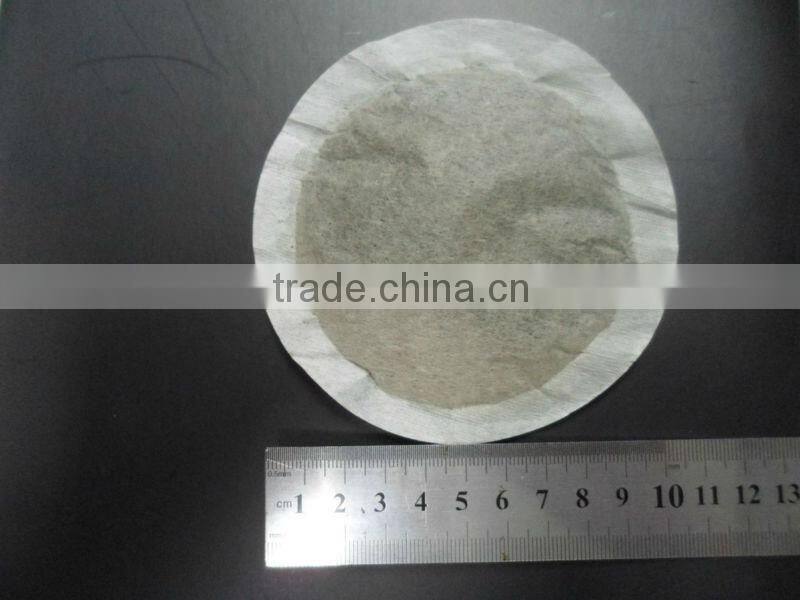

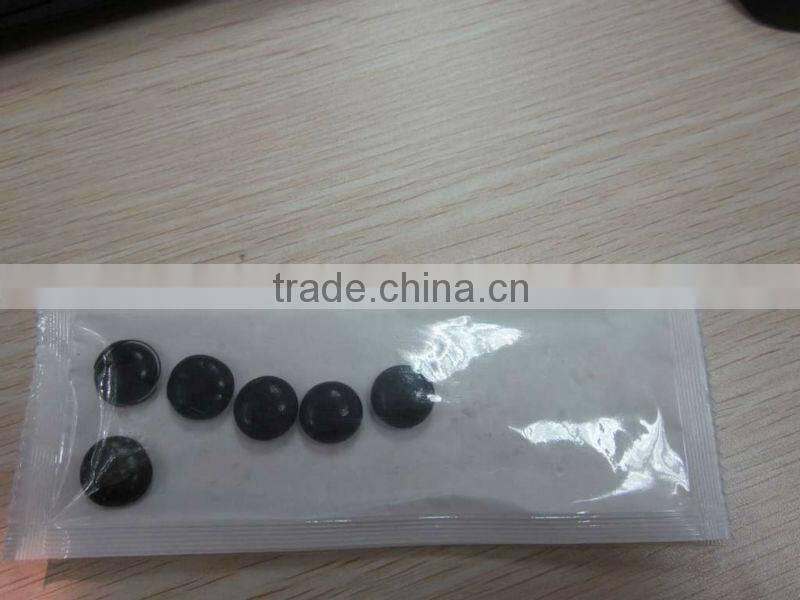

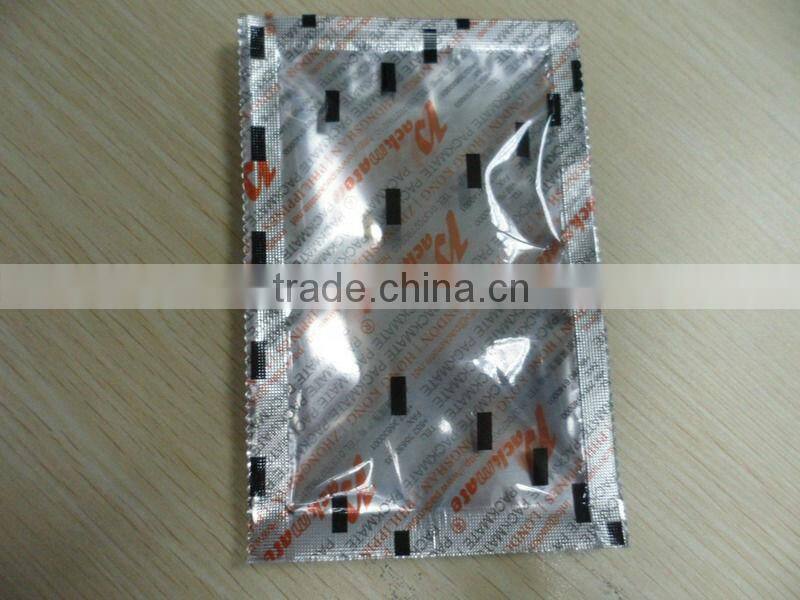

The bag sample :

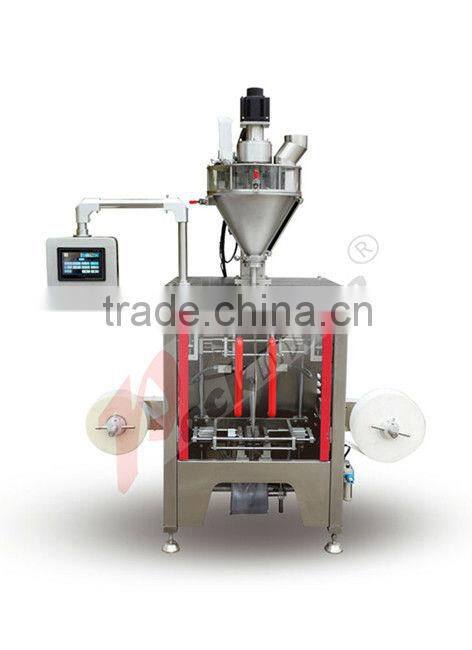

PACKMATE HIGH QUALITY MACHINE PHOTOS:
