Specifications
Cold Forging Dies/tungsten carbide mold1) Corrosion and abrasion resistant
2) Dimensionally precise
3) High functionality

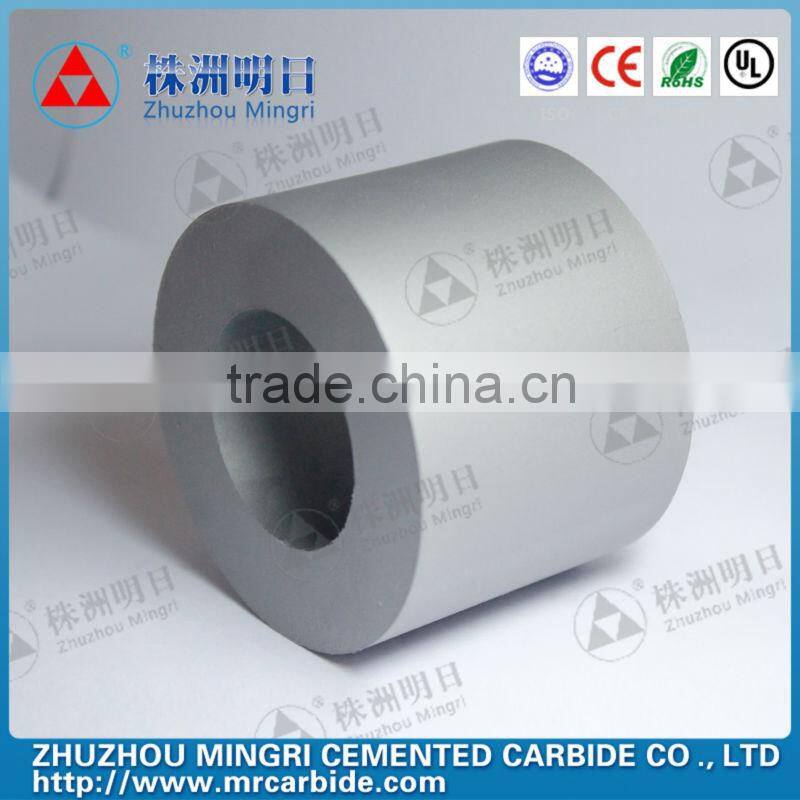

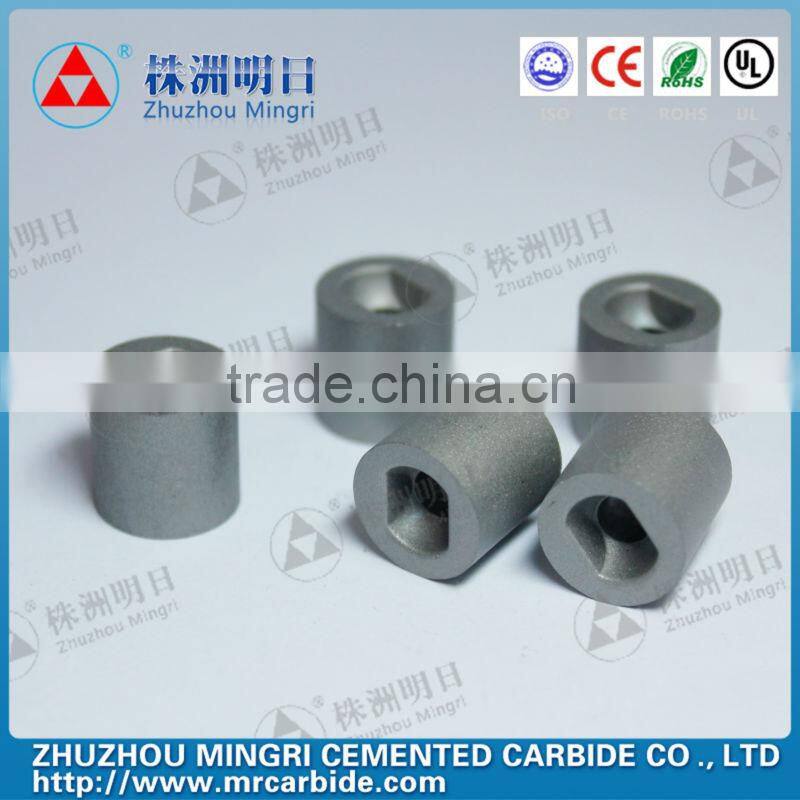

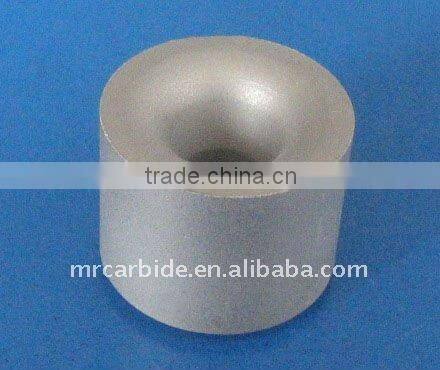

Cold Forging Dies/ tungsten carbide mold
Cold Forging Dies
1) Corrosion and abrasion resistant
2) Dimensionally precise
3) High functionality
4) Durability
Tungsten carbide cold heading die for cold punching and heading of screws and nuts. High impact resistance .Toughness ,wear resistance,and quality consistency.You are encouraged to use our professional carbide grades for cold heading &punching die nibs. Power metallurgical Compacting dies and other industries.For stable performance and high-cost-effectiveness.They have been proved to be ideal in making non-ferrous metal , ferrous metal and their alloys.
we can offer different size by customer's design.
| TYPE | fundamental dimensions | ||
| d | D | L | |
| BD0101015 | 10 | 1 | 15 |
| BD0131015 | 10 | 1.3 | 15 |
| BD0171020 | 10 | 1.7 | 20 |
| BD0171230 | 12 | 1.7 | 30 |
| BD0211015 | 10 | 2.1 | 15 |
| BD0211230 | 12 | 2.1 | 30 |
| BD0211630 | 16 | 2.1 | 30 |
| BD0241015 | 10 | 2.4 | 15 |
| BD0241225 | 12 | 2.4 | 25 |
| BD0291215 | 12 | 2.9 | 15 |
| BD0291425 | 14 | 2.9 | 35 |
| BD0291640 | 16 | 2.9 | 40 |
| BD0341225 | 12 | 3.4 | 25 |
| BD0341435 | 14 | 3.4 | 35 |
| BD0341637 | 16 | 3.4 | 37 |
| BD0391420 | 14 | 3.9 | 20 |
| BD0391625 | 16 | 3.9 | 25 |
| BD0391630 | 16 | 3.9 | 30 |
| BD0392255 | 22 | 3.9 | 55 |
| BD0431425 | 14 | 4.3 | 25 |
| BD0431640 | 16 | 4.3 | 40 |
| BD0432230 | 22 | 4.3 | 30 |
| BD0471615 | 16 | 4.7 | 15 |
| BD0471840 | 18 | 4.7 | 40 |
| BD0472225 | 22 | 4.7 | 25 |
| BD0642242 | 22 | 6.4 | 42 |
| BD0722255 | 22 | 7.2 | 55 |
There are different grades with different properties and applications. Of course the price will be different. When purchasing, please first choose your decisioin of the grade!
Grades and applications:
| Grade | Density | T.R.S MPa | Hardness HRA | Performance & application recommended |
| YM11 | 14.4 | 2600 | 88.5 | Forming or stamping dies for metal powders and nonmetal powders. |
| YM15 | 14 | 2800 | 87.5 | For fabricating drawing dies of steel tubes and rods under High compressibility ratio; punching,stamping,forging tools under large stress. |
| YM20 | 13.5 | 3200 | 85.5 | For fabricating of stamping dies for watch parts, spring plates of musical instruments, battery jars, small sized steel balls, screws, screw caps. |
| ML32 | 13.9 | 2900 | 85.5 | Impact resistance forging dies. |
| ML35 | 13.7 | 3100 | 84.5 | Impact resistance forging dies, hot-press forging dies and rollers. |
| ML40 | 13.5 | 3300 | 83.5 | Dies for wear resistant or impact resistant application. |
| ML50 | 13.3 | 3500 | 83 | Nut forming dies and high impact resistance forging dies. |
| ML60 | 13.1 | 3600 | 82.5 | Stainless bolt header dies and rollers. |
Various models for selecting!
Tight Packing
About us:

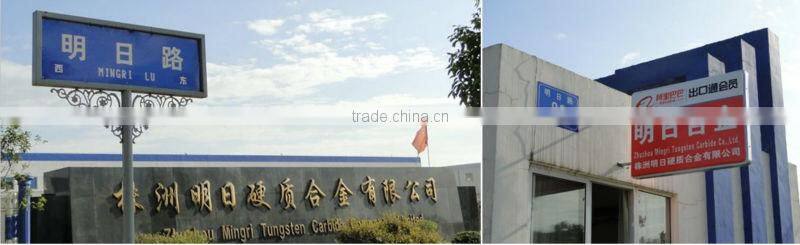

Located in Liyu Industrial Area, Zhuzhou City, Tianyuan District, Hunan Province, Zhuzhou Mingri Cemented Carbide Co., Ltd was established in May of 2001 with the investment of RMB 40 million. We own up-to-date production line, advanced equipment, lots of technicians. We have passed ISO 9001:2000 in the year of 2003. And we have been always trying our best to provide our customers with high quality, best price and satisfactory services.
We specialize in series of tungsten carbide products, such as cold forging die cores, brazed tips, disc cutters, plates and boards, saw tips, round rods, rock drilling bits and buttons, milling tools, geological exploration drill tools and so on. Our products are exported to UK, European, Japan, Taiwan and South-east Asia etc.
You’re welcome to have a visit to our factory!
We are manufacturer, not just trade.
Welcome to visit our factory ,address No:88 Mingri Road,Liyu Industrail Area,Tianyuan District,Zhuzhou City,Hunan Province,China.
