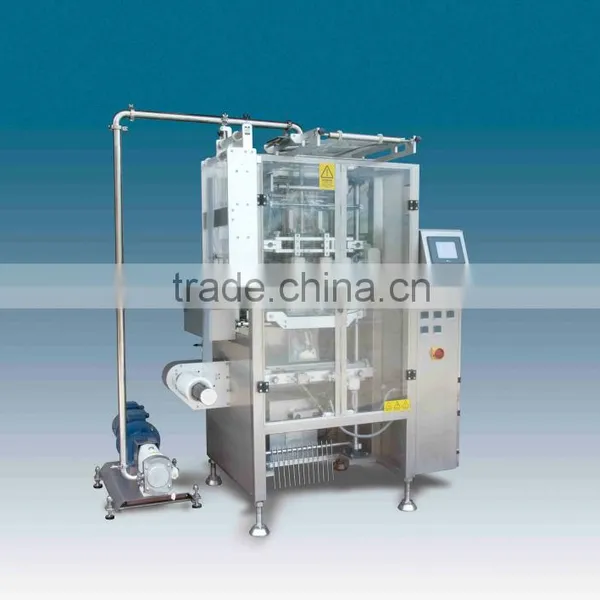

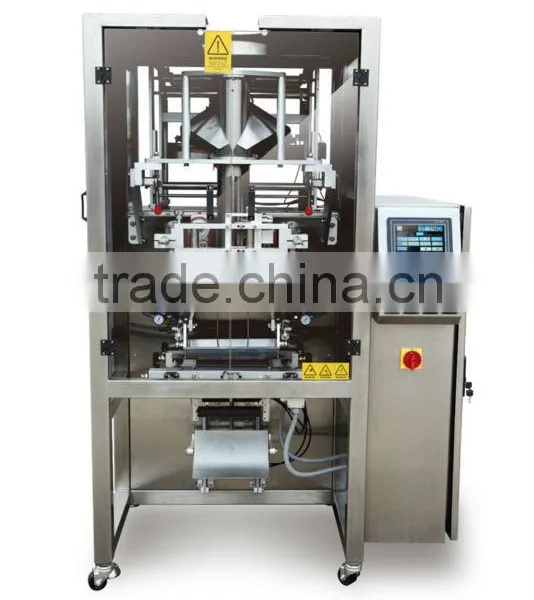

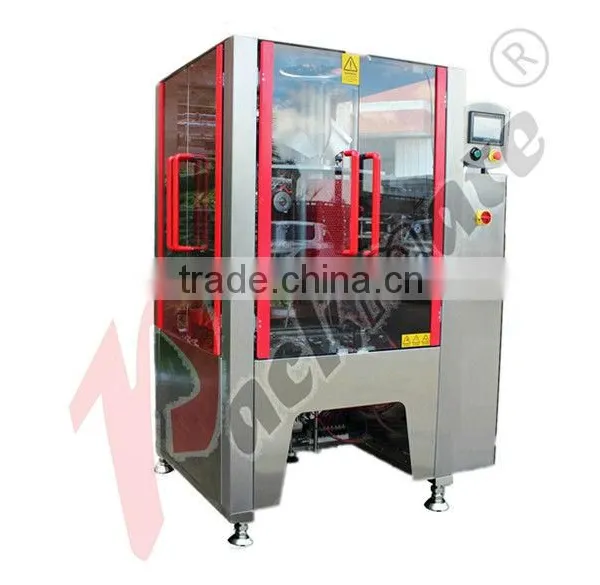

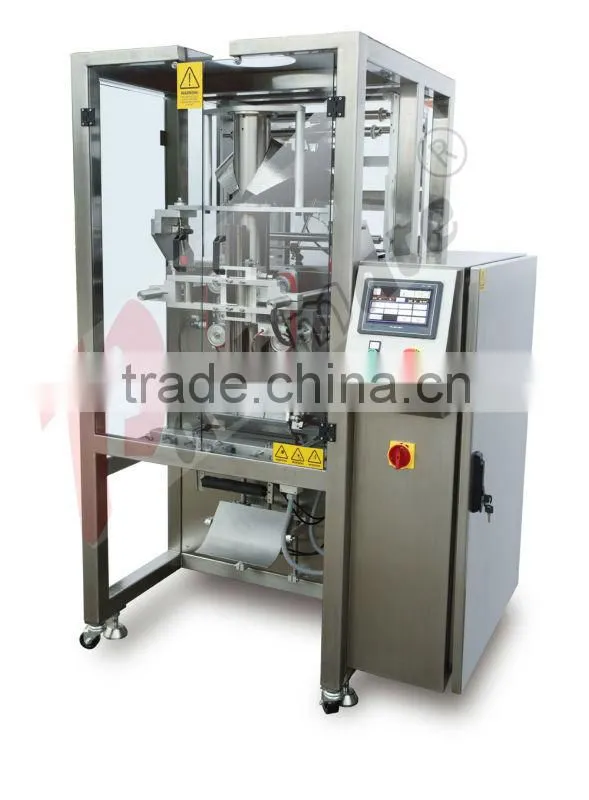

Help CenterAutomatic Back Seal Bags of Liquid Materials Packaging Machine
Related Products
-
Large Back Seal Bags Coffee Packaging MachineUS$ 12,800 - 19,800MOQ: 1 Set -
Automatic Large Back Sealing Bag Vertical Packaging MachineryUS$ 13,500 - 25,500MOQ: 1 Set
-
Check Weigher CW10NegotiableMOQ: 1 Set
-
Stainless Steel 304 Metal Detector for Food, Pharmaceutical ProductsNegotiableMOQ: 1 Set
-
Automatic Check Weigher CW250NegotiableMOQ: 1 Set
Production Rate:
Speed 10-80 packages per Minute
Package Range (pillow bag):
Min Width: 80mm
Max Width: 200mm
Power Requirements:
220V, Single phase, 50~60Hz, 4KW
Air requirements:
0.2m3 (Normal)/min, 0.6Mpa
Film type (Normal):
Laminated film, such as OPP/CPP, OPP/PE, MST/PE, PET/PE, N/PE,
Packing Speed |
10-80bag/min (depend on the materials) |
Install power |
AC220V |
Bag size |
L=50- 300mm,W=80-200mm |
Total power |
4KW |
Packing range |
5-1000g (depend on the materials) |
Air consumption |
0.2m3/min, 0.6Mpa |
Fill roll |
OPP/CPP,OPP/PE,MST/PE,PET/PE |
Weight |
600kg |
Thickness |
0.04-0.08mm |
Outer dimension |
1280x1110x1570mm |
Main features:
1.Servo-drive film transport system
2.Servo-drive, intermittent motion end seal jaws
3.PLC and touch screen operation interface with choice of languages and access restriction feature.
4.Simple and fast bag size changeover with one-piece forming sets.
5.Exact alerting to prevent product to be jammed between jaws.
6.Photocell for centering of printing.
7.Data printer (hot stamp) is automatically set.
8.Stainless steel as standard version for excellent durability and sanitation.
Specifications & Index
Electronic control
1.Control panel: Screen interface, Weinview –Taiwan
2.PLC: Panasonic – Japan
3.Servo: Schneider - France
4.Photo sensor: Sick-Germany
5.Alarm device: Auto stop when film run out or door open or product caught, etc.
6.Power supply: 220V – 50 HZ/4KW
Mechanic part
1.Film pulling: Schneider, Servo motor.
2.Film pulling belt: Double belt
3.Cutting device: Zigzag cutting knife controlled by air
4.Hole punch: Optional
5.Gusseted device: Optional
6.Compressed air: 0.2m3 (Normal)/min, 0.6Mpa
7.Machine construct: S.S, construction & fasteners
8.Forming tube: One set as requested size included
Printer
1.Operating speed: Synchronal with packing machine
2.Printer method: Hot-die stamping with air
3.Printer type: Hot Printer
4.Printing area: 3 lines, 35(w)x10(L)mm
5.Characters of per line: Max. 12 characters
6.Printing position: Changeable
Spares kit included with machine:
1.Horizontal seal heaters (4)
2.Vertical seal heaters (2)
3.Printing tape (2)
4.Printing symbol (2 box)
5.Film pulling belt (2)
6.T – type knife (1)
7.Copper brush (1)
8.Inner hexagon spanner (1)
9.Movement spanner (1)
