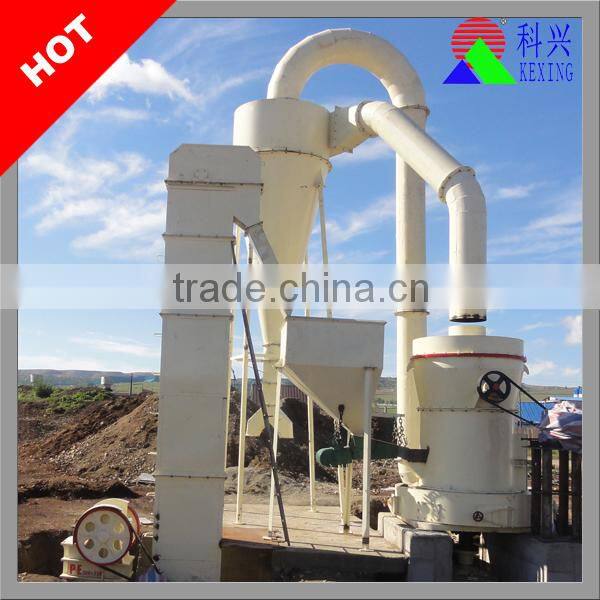

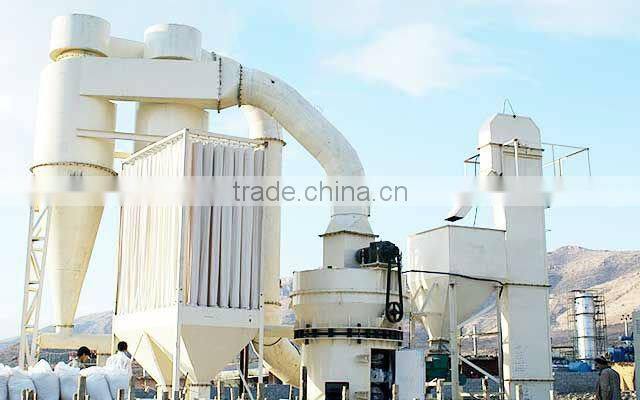

Stone Mill Machine with High Ration and Favorable Price
The Raymond Mill’s Use
The raymond mill to grind the following non-inflammable and non-explosive materials with the hardness below Scale 9.3 of Moh’s and the moisture content below 6%,such as: quartzite, feldspar, calcite, speckstone, bolongnian stone, cann, tombarthite, marble, potter’s clay, tauxite, manganese-ore, garnet, ferric-oxide(yollow), bean-coal, magnetite, fertilizer, compound fertilizer, flyash, softcoal, coke coal, ligniteous coal, gold-mine, red earth, clay-mineral, kaolin, coke, gangue, porcelain-clay, kyanite, fluorspar, rhyolite, pyrophyllite, shale, amethyst, basalt, plaster-stone, graystone, multiple stone, graphite, silicon-carbide, thermal insulation materials, and etc.
Stone Mill Machine with High Ration and Favorable Price

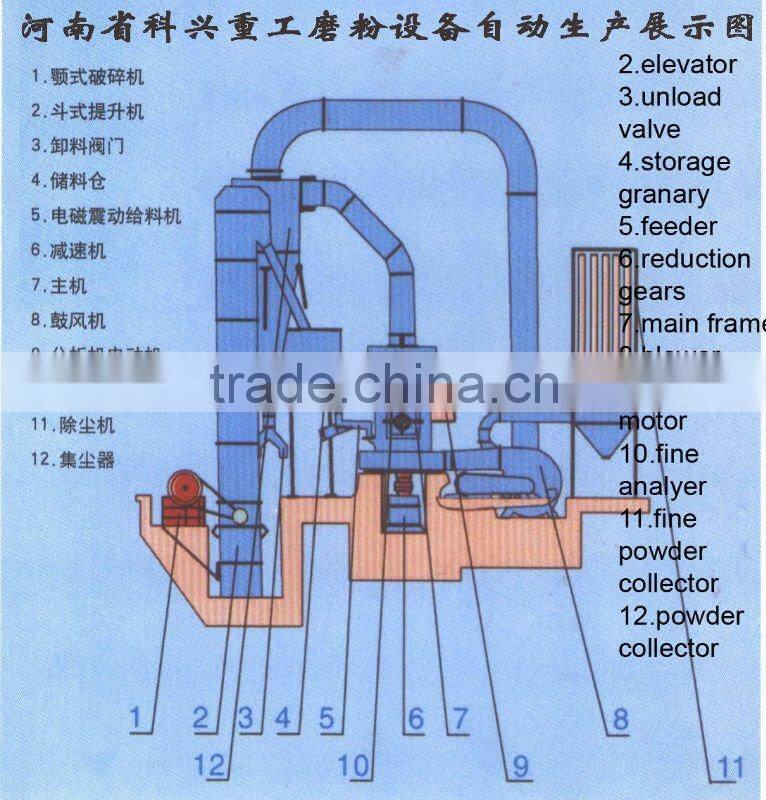

Working Principle of Ultrafine raymond grinding
Firstly, raw material is crushed by jaw crusher to the size required, then elevated into a hopper from which the material is transported through the electro-magnetic vibrating feeder evenly and continuously into the grinding chamber for powder-processing. The rollers oscillate outward to press the ring because of the centrifugal force and the shovel scoops up the materials, send to the middle between the ring and rollers to accomplish the grinding.After grinding, the rough materials will be recycled by the air from the fan back into the grinding chamber for regrinding and the fine powders are blew into the cyclone and poured out through the output-powder pipe as the final products.
Stone Mill Machine with High Ration and Favorable Price
The Raymond Mill’s Characteristics
1.Mineral that Moh’s hardness is smaller 9.3 stages can process, crush.
2.Completed product that particle sphere that diameter maximum is very extensive, particle is 0.613mm (30 mesh), the normal particle is 0.033mm and the smallest particle is 0.013mm. (1000mesh)
3.The effect of the elimination dust attains the national standard.
4.The accommodation of the analyzer is very convenient.
5.Grinding apparatus adopt lap multistage seal, and the seal is effective.
Stone Mill Machine with High Ration and Favorable Price
Technical Parameter
Model | Roller Number | Roller Size | Maximum Feed Size(mm) | Fineness of final product(mm) | Output(t/h) | Main Frame power (kW) | Fan power (kw) |
Overall Dimension(mm)
|
5R4119 | 5 | 410×190 | 20-25 | 0.613-0.044 | 5-12 | 75 | 55 | 7850×8000×9700 |
4R3216 | 4 | 320×160 | 20-25 | 0.28-0.047 | 1.0-8.0 | 37 | 30 | 9900×5800×10580 |
4R2715 | 4 | 270×150 | 15-25 | 0.28-0.047 | 0.8-4.0 | 22 | 18.5 | 8700×5000×7819 |
3R2715 | 3 | 270×150 | 15-20 | 0.28-0.047 | 0.7-3 | 22 | 18.5 | 8700×5000×7819 |
3R2615 | 3 | 260×150 | 15-20 | 0.28-0.047 | 0.5-2.7 | 18.5 | 15 | 5650×3305×5950 |
3R2115 | 3 | 210×150 | 15-20 | 0.28-0.047 | 0.4-1.6 | 15 | 11 | 4500×2800×5800 |
3R1410 | 3 | 140×100 | 5-10 | 0.28-0.047 | 0.1-1.0 | 7.5 | 5 | 3200×2100×4500 |
Stone Mill Machine with High Ration and Favorable Price
Our services
Pre-sale:
(1) According to customer's special requirements, design and manufacture of products.
(2) the company free of charge to the user on-site engineering and technical personnel planning site for the user to design the best processes and programs.
Sale:
(1) product acceptance.
(2) to help customers develop construction programs.
After-sale:
(1) free to assign a dedicated service personnel, arrived at the scene and guide customers installation.
(2) equipment installation.
(3)complete sets of equipment installed
Stone Mill Machine with High Ration and Favorable Price
Package and shipping
Our products are usually packed by plywood case,wooden case,nylon coth, etc. And we will change packing ways by the real situation.
The goods will be delivred from Qingdao port and we will take buyers requirements into consider,too.
Stone Mill Machine with High Ration and Favorable Price
Delivering photo
Stone Mill Machine with High Ration and Favorable Price

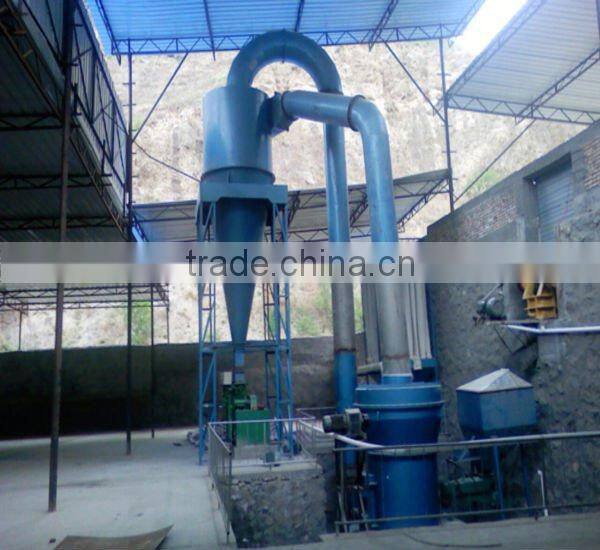

Cooperation with foreign customers
Stone Mill Machine with High Ration and Favorable Price
Our main certification
