Professional High Efficiency Industry Flour Grinding Mill/Milling
Brief introduction
Raymond mill produced by our company is mainly used to grind non-inflammable and non-explosive materials with Moh’s hardness below 7 and moisture content below 6% such as barite, calcite, potash feldspar, talcum, marble, limestone, ceramic, glass, etc Raymond grinder can be used in mining, chemical industry, construction materials, metallurgy and so on. The final products can be adjusted freely from 100 mesh to 425 mesh.
Working Principle

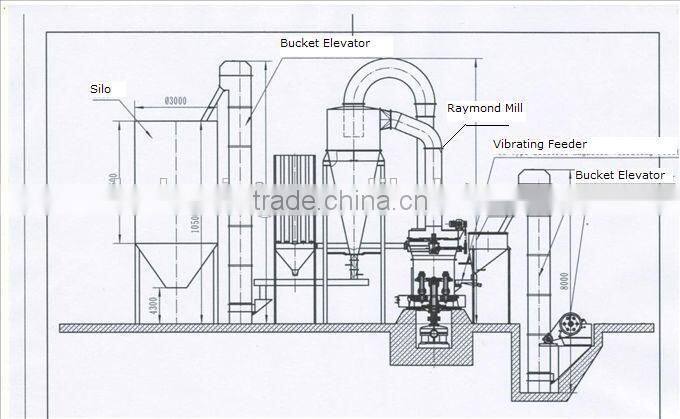

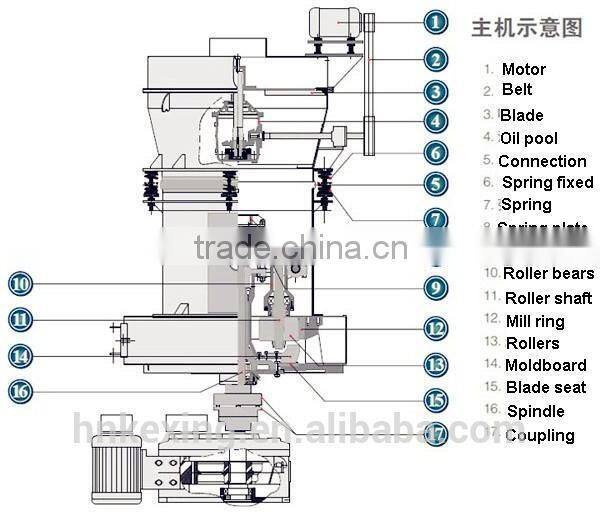

Firstly, raw material is crushed by jaw crusher to the size required, then elevated into a hopper from which the material is transported through the electro magnetic vibrating feeder evenly and continuously into the grinding chamber for powder-processing. The rollers oscillate outward to press the ring because of the centrifugal force and the shovel scoops up the materials, send to the middle between the ring and rollers to accomplish the grinding.After grinding, the rough materials will be recycled by the air from the fan back into the grinding chamber for regrinding and the fine powders are blew into the cyclone and poured out through the output powder pipe as the final products.
Technical Parameter
Model | Roller Number | Roller Size | Maximum Feed Size(mm) | Fineness of final product(mm) | Output(t/h) | Main Frame power (kW) | Fan power (kw) |
Overall Dimension(mm)
|
5R4119 | 5 | 410×190 | 20-25 | 0.613-0.044 | 5-12 | 75 | 55 | 7850×8000×9700 |
4R3216 | 4 | 320×160 | 20-25 | 0.28-0.047 | 1.0-8.0 | 37 | 30 | 9900×5800×10580 |
4R2715 | 4 | 270×150 | 15-25 | 0.28-0.047 | 0.8-4.0 | 22 | 18.5 | 8700×5000×7819 |
3R2715 | 3 | 270×150 | 15-20 | 0.28-0.047 | 0.7-3 | 22 | 18.5 | 8700×5000×7819 |
3R2615 | 3 | 260×150 | 15-20 | 0.28-0.047 | 0.5-2.7 | 18.5 | 15 | 5650×3305×5950 |
3R2115 | 3 | 210×150 | 15-20 | 0.28-0.047 | 0.4-1.6 | 15 | 11 | 4500×2800×5800 |
3R1410 | 3 | 140×100 | 5-10 | 0.28-0.047 | 0.1-1.0 | 7.5 | 5 | 3200×2100×4500 |
Notice: This specification is just reference, any changes are subject to the products.
Our Services
Pre-sale:
(1) According to customer's special requirements, design and manufacture of products.
(2) the company free of charge to the user onsite engineering and technical personnel planning site for the user to design the best processes and programs.
Sale:
(1) product acceptance.
(2) to help customers develop construction programs.
After-sale:(1) free to assign a dedicated service personnel, arrived at the scene and guide customers installation.
(2) equipment installation.
(3)complete sets of equipment installed
Packaging & Shipping
Our products are usually packed by plywood case,wooden case,nylon coth, etc. And we will change packing ways by the real situation.The goods will be delivred from Qingdao port and we will take buyers requirements into consider,too.
Our certificates
Cooperation with foreign customers
Order Online:
If you're interested in the product, please submit your requirements and contacts and then we will contact you in two days. We promise that all your informations won't be leaked to anyone.
