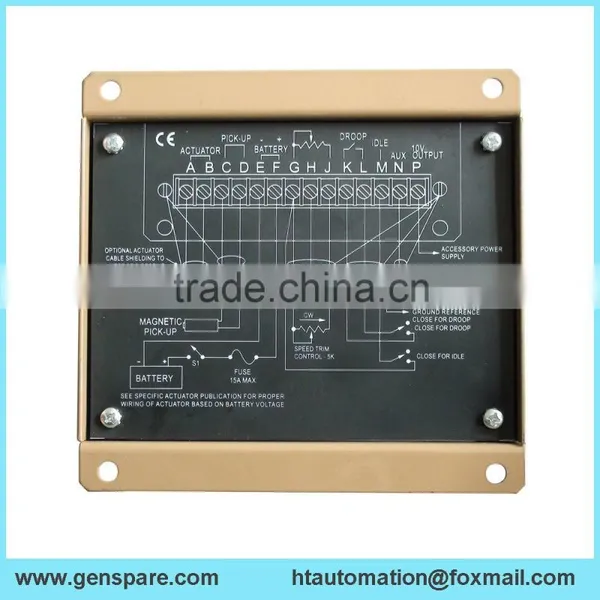

Speed Controller ESD5520E (Universal Module for any generator) (Replacement)
We provide good quality replacement model for ESD5520E Speed Controller with very reasonable price:
The Brands mentioned here are for reference purpose only, our parts can exactly replace the original ones.
We not only provide products, but also professional services:
² One year Quality Warranty completely free( You even do not need to pay for freight charge);
² Customer appointed Express Delivery: DHL/ UPS/ TNT/ FEDEX/ EMS/ SF/ ARMEX and etc.;
² Customer appointed shipping value: saving customs taxes when making customs clearance;
² On-line Service: Skype / Yahoo Messenger / WhatsApp / Wechat;
² Other services: multitudinous customized services.
SPEED CONTROLLERS:
1) Most Popular Modules:ESD5111, ESD5500E
2) Over Speed Alarm Modules: ESD5221, ESD5550E, ESD5570E, ESD5330
3) Other Modules: ESD5220, ESD5520E, ESD5522E, ESD5525E
4) Synchronizer: SYC6714
5) Load Sharing Module: LSM672N
3044196; 3062322; 3037359; 3098693;
4914090; 4914091; 3032733; 3044195.
The ESD5520E Series Speed Control Unit is rugged enough to be placed in a control cabinet or engine mounted enclosure with other dedicated control equipment. If water, mist, or condensation may come in contact with controller, it should be mounted vertically. This will allow the fluid to drain away from the speed control unit.
TECHNICAL SPECIFICATIONS: | ||
Isochronous Operation/Steady State Stability |
± 0.25% or better |
|
Speed Range/Governor |
1K-7.5K Hz continuous |
|
Speed Drift with Temperature |
± 1% Maximun |
|
IDLE Adjustment |
160 ± 20Hz ~ 60% of set speed |
|
Droop adjustment Min.(K-L Jumpered) |
15Hz. ± 6Hz. per 1.0 A change |
|
Droop adjustment Max.(K-L Jumpered) |
400Hz. ± 75Hz. per 1.0 A change |
|
Droop Adj. Max. (K-L Jumpered) |
875Hz., ± 75Hz. per 1.0 A change |
|
Droop Adj. Min. (K-L Jumpered) |
15Hz., ± 6Hz. per 1.0 A change |
|
Speed Trim Range |
± 200Hz. |
|
Remote Variable Speed Range |
500 -7.5Hz. or any part thereof |
|
Terminal Sensitivity |
J: 100Hz., ± 15Hz/Volt @ 5.0 K Impedance |
|
L: 735Hz., ± 60Hz/Volt @ 65 K Impedance |
||
N: 148Hz., ± 10Hz/Volt @ 1Meg. Impedance |
||
P: 10V DC Provide @ 20ma Max. |
||
Speed Switch Adjustment Range |
1000-10000Hz. |
|
ENVIRONMENTAL: | ||
Ambient Operating Temperature Range |
-40°c to +85°c |
|
Relative Humidity |
up to 95% |
|
Storage Temperature |
-55°c ~ 90°c |
|
Shock |
20-100HZ 500mm/Sec. |
|
INPUT POWER: | ||
Provide |
12 or 24V DC Battery Systems(Transient and Reverse Voltage Protected) |
|
Polarity |
Negative Ground(Case Isolated) |
|
Power Consumption |
50mA continuous plus actuator current |
|
Actuator Current Range @ 25°c-(Inductive Load) |
Min. 2.5 Amps, Max. 10 Amps continuous |
|
Speed Sensor Signal |
0.5-120 V RMS |
|
Speed Switch Relay Contacts(N.O.and N.C.) |
10Amp |
|
PHYSICAL |
|
|
Weight |
650g |
|
Note: The performance parameters in the frequency when measuring 4000Hz
