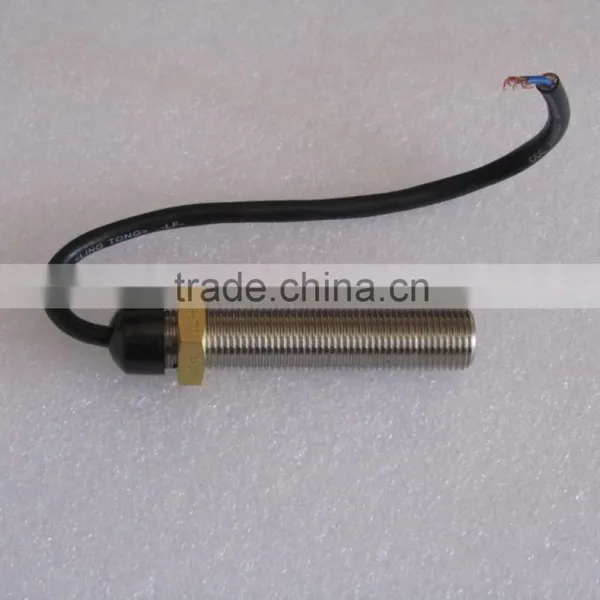

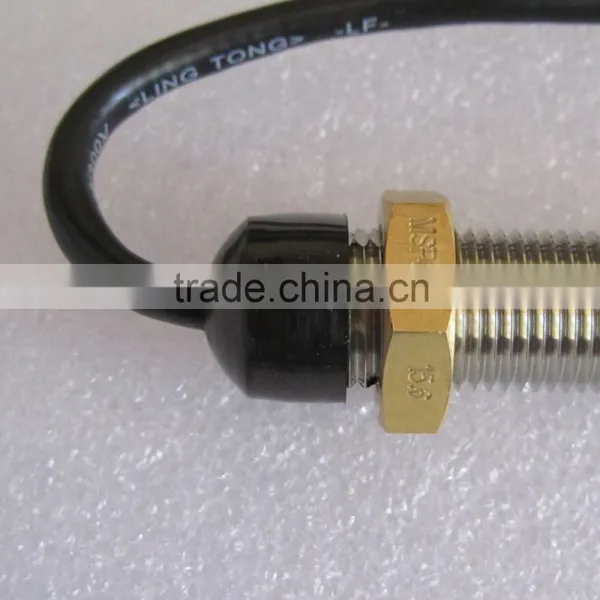

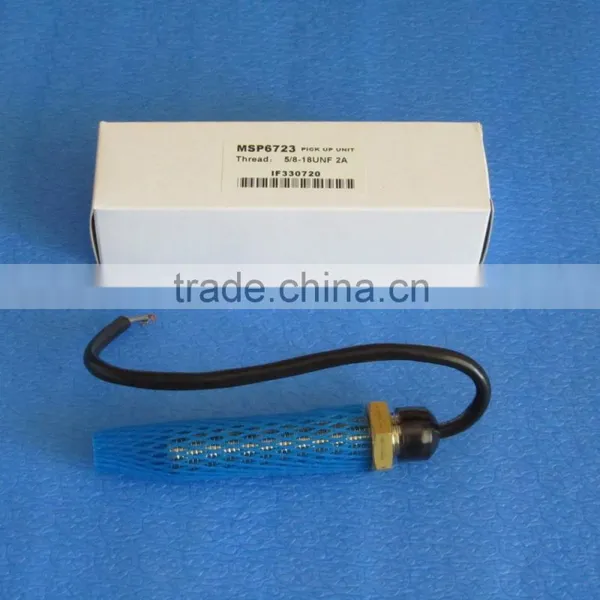

Magnetic Speed Sensor MSP6723 MPU Magnetic Pickup (Replacement)
We provide good quality replacement model for MSP6723 Magnetic Pickup with very reasonable price.
The Brands mentioned here are for reference purpose only, our parts can exactly replace the original ones.
The Magnetic Speed Sensor detects when ring gear teeth, or other ferrous projections, pass the tip of the sensor. Electrical impulses are produced by the sensor’s internal coil and sent to the speed control unit. The signal from the magnetic speed sensor, teeth per second (Hz.), is directly proportional to engine speed. Speed sensors are available in various lengths in both U.S. and metric threads. Wire leads, military connectors, automotive connectors or stud terminals are also available. Over 15 styles currently available.
Magnetic Pickups | ||||
3/8 - 24 UNF Threaded | ||||
Product # |
Thread Length |
Harness Length |
Connector |
With Mating Connector |
MSP6729 |
2.7in [69mm] |
6ft [1.8m] |
Flying Leads |
No |
MSP6731 |
4.0in [102mm] |
6ft [1.8m] |
Flying Leads |
No |
5/8 - 18 UNF Threaded | ||||
Product # |
Thread Length |
Harness Length |
Connector |
With Mating Connector |
MSP675 |
3.19in [81mm] |
7in [178mm] |
Flying Leads |
No |
MSP676 |
5in [127mm] |
1ft [0.3m] |
Flying Leads |
No |
MSP677 |
3in [76mm] |
na |
Military |
No |
MSP678 |
4.86in [123.4mm] |
na |
Military |
No |
MSP679 |
3in [76.2mm] |
na |
Military |
Yes |
MSP6719 |
2.37in [60.2mm] |
1ft [0.3m] Harness |
Flying Leads |
No |
MSP6720 |
3.86in [98.1mm] |
1ft [0.3m] Harness |
Flying Leads |
No |
MSP6728 |
3.19in [81mm] |
6.25in [159mm] |
Packard |
No |
MSP6732C |
3.16in [80.3mm] |
3.25in [82.6mm] |
Dual Packard |
Yes |
3/4 - 16 UNF Threaded | ||||
Product # |
Thread Length |
Harness Length |
Connector |
With Mating Connector |
MSP6724 |
3.45in [88mm] |
3in [76mm] |
Automotive |
No |
M16 x 1.5 Threaded | ||||
Product # |
Thread Length |
Harness Length |
Connector |
With Mating Connector |
MSP6714 |
3.0in [76.2mm] |
na |
Military |
No |
MSP6715 |
3.0in [76.2mm] |
na |
Military |
Yes |
MSP6723 |
3.13in [79.4mm] |
3in [76mm] |
Automotive |
No |
