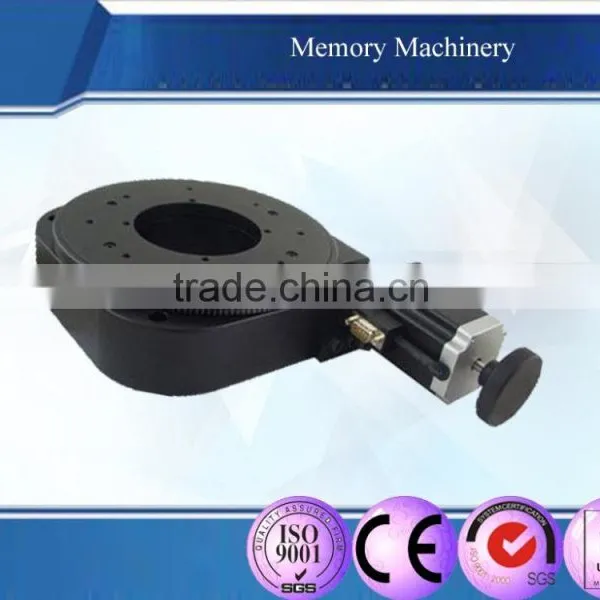

Help CenterMini Motorized Rotation Stage(diameter 60mm)
Related Products
-
Rotary Stage, Motorized Rotary Stage, Manual Rotary StageUS$ 500.00 - 500.00MOQ: 1 Set -
Heavy Loading Motorized Rotation Stage (diameter 200mm With 90mm Through Hole)US$ 3000.00 - 3000.00MOQ: 1 Set
-
Precision Motorized Rotation StagesUS$ 3500.00 - 3500.00MOQ: 1 Set
-
High Quality Heavy Loading Motorized Rotary Stage (diameter 300mm)US$ 200 - 3,000MOQ: 1 Set
-
Black- Anodized Aluminum Alloy Motorized Rotary Stage,OD300MMUS$ 200 - 3,000MOQ: 1 Set
Item Number |
01DX60 |
Angle Range |
360° |
Dimension |
diameter 60mm |
Worm Gear Ratio |
90:1 |
Drive Mechanism |
Worm Gear |
Guide |
Bearing |
Stepper Motor(1.8°) |
SST4202121 |
Material |
Aluminum |
Surface Treatment |
Black- Anodized |
Loading |
30kg |
Weight |
1.2kg |
Resolution |
0.02°non-driver 0.01°20 MS driver |
Speed |
25°/sec |
Repeatability |
0.005° |
Accuracy |
0.01° |
Run Out of Top |
15μm |
Backlash |
0.005° |
Eccentricity |
5μm |
Degree of Parallelization |
80μm |
Feature
*Regular stage set with stepper motor and RS232 interface, could connect with motion controller easily
*High precision Worm gear design for high accuracy, loading and long working time.
*Forward and reverse rotate are possible
*The stage could use in vertical and assemble with other stages
*60mm diameter dimension but without through hole
*The regular stage without limit switch and home position, but can add according to requirements
