Laboratory Used Motorized Lab Jack, Travel 90mm
US$ 100 - 3,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
MEMORY
Model Number:
02DS90
Payment & Shipping
Payment Methods:
Port of Shipment:
XINGANG
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Precision Motorized Motorized Lab Jack, Travel 90mmUS$ 100 - 3,000MOQ: 1 Set -
Best Price Motorized Lab Jack, 5mm TravelUS$ 399 - 3,999MOQ: 1 Set
-
Best Price Motorized Electric Lab Jack, , Travel 100mmUS$ 99 - 1,499MOQ: 1 Piece
-
Precision Motorized Lab Jack, Travel 100mmUS$ 99 - 1,499MOQ: 1 Piece
-
Aluminum Alloy High Performance Motorized Lab Jack, Travel 100mm Quality ChoiceUS$ 99 - 1,499MOQ: 1 Piece
Place of Origin
Hebei, China
Brand Name
MEMORY
Model Number
02DS90
Laboratory Used Motorized Lab Jack, Travel 90mm
1. Specification:
Model Number |
02DS90 |
Travel |
90+/-2mm |
Dimension |
220mmx140mm |
Driver |
Lead screw |
Guide |
Sliding Guide |
Stepper Motor(1.8°) |
SST42D2121 |
Material |
Aluminum |
Surface Treatment |
Black-Anodized |
Loading |
5kg |
Weight |
10kg |
Min Adjustment |
5μm(non-MS drive) 0.25μm(20-MS drive) |
Max Speed |
5mm/sec |
Repeatability |
10μm |
Backlash |
4μm |
2. Features:
*Regular stage sets with stepper motor and RS232 interface, can connect with motion controller conveniently.
*Fork type mechanical structure for lifting with high stability.
*High accuracy lead screw for high performance and smooth moving
*Mounting holes both on the top and bottom of table for combine with other stages easily
*The stages can be redesigned.

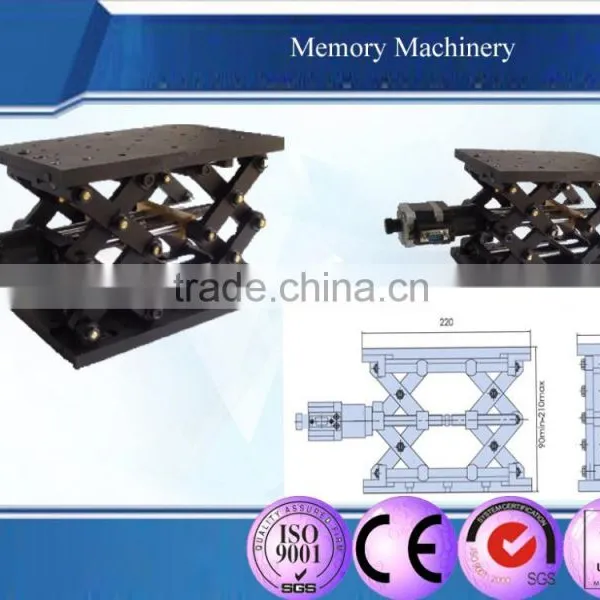

3. Drawing:
4. Product:
