wood briquette machine, wood charcoal briquette machine, sawdust briquette machine

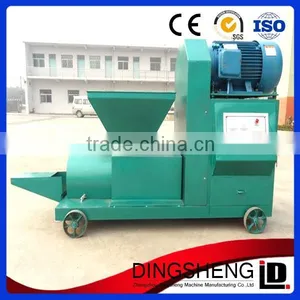

Biomass Charcoal briquette machine

Specifications

DS biomass charcoal briquette machine
1.stick shape with different diameter
2.raw like sawdust,corn cob,peanut shell

Introduction

Briquettes are made by grinding Biomass and sawdust into a homogeneous pulp and forming this into a briquette under very high pressure. High pressure & pressing releases one of the natural components of wood - lignin which has the property of becoming liquid at high pressure (temperature) and, as it subsequently cools, it binds the wood together in its new form Briquettes.

Requirment of the raw material

1. For using material of two or more types, It should be mixed in suitable form.
2. size:  less than 5mm , if the material can not accheive the reuirment, it should be crush first.
3. moisture :8-12%,If raw material has high moisture it should be reduced by Sun drying or using flash drie
4. the feed material should be even

The flowchart of the production line

 Raw material:

Any types of Agro-forestry waste Such as maize stalks, soybean stalks, broomcorn stalks, cotton stalks, rape stalks, peanut plants, sunflower stalks, bamboo saw dust, bagasse, wood chips, rice husk, coffee husk,coir pith, jute sticks, groundnut shells, Bamboo , wood , strawdust, Mustard stalk and cotton stalks .etc

finished product:

The final bio-fuel briquette is made by the advanced biomass briquetting machine.  After the processing of drying, compressing under the high pressure and temperature, the biomass briquette is characterized by high density, small in size, better combustion, capable as the substitute for the superior coal or firewood. This bio-fuel briquette is 45-80mm in diameter, occurs in the hollow quadrangular or hexagonal cylinde or hollow hexagonal with a 15-20mm hole through the body. The bio-fuel carbon maintains the cleanliness and hygiene, and is suitable for family heating and barbecuing. There is a huge need in the international market, for it is capable as the substitute for the superior coal or heavy oil to the Industrial steam boiler, or the industrial raw material for the further processing into the activated carbon, mosquito coils and explosives

Application:

As the need of pollution free environment, the product has a large scope of marketing. The briquettes can be used as a substitute of any fuel in following fields

Boilers : It can be used in the boilers of Paper Mills, Sugar Mills, Dyeing houses, leather, lamination industries, Vanaspati units, Food Processing Units, Oil Extraction Units, Solvent Extraction Plant and many other plants and industries..

Furnace & Foundries : It can be used for metal heating & melting (where melting point is less than 1000d/cel.)

Brick Kilns It is the total, substitute of steam coal.

Residential & Commercial Heating  For winter heating in Cold areas and Hotels, Canteens, Cafeterias and house hold kitchen appliances etc.

 Data:  (the most popular types
