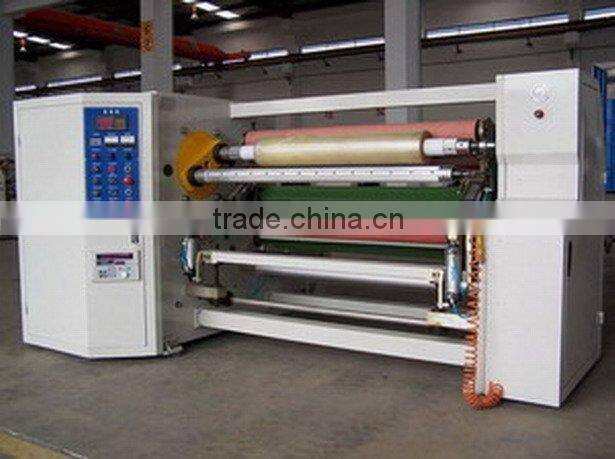

Help Center1300mm or 1600mm Industry Tape Auto Rewinding Machine
Related Products
-
Large Roll Single Shaft Automatic Rewinding MachineUS$ 7,300 - 7,500MOQ: 1 Set -
Super Clear BOPP Tape /stationery Tapes Slitting and Rewinding MachineNegotiableMOQ: 1 Set
-
(1600mm) Double Sided Tape CutterUS$ 19,000 - 22,000MOQ: 1 Set
-
Sigle Shalf Cutting MachineUS$ 19,000 - 22,000MOQ: 1 Set
-
(1300mm) Adhesive Tape Cutting MachineUS$ 19,000 - 22,000MOQ: 1 Set
Specifications
Suitable for rewind various electric tape, industry tape, BOPP adhesive tape, foil film,paper.Valid width: 1.3/1,6M
1. Application field:
Suitable for rewind various electric tape, industry tape, BOPP adhesive tape, foil film.
2. Features:
1.Automatic length setting: the two-step length counter provides accurate rewinding length control. Once the length is reached, so that the shaft will instantly and automatically changes, ensuring easy operation and efficient performance.
2.Programmable controller: the high performance programmable controller offers convenient control of the entire rewinding operation. Both length and tension are accurately displayed by LED panel.

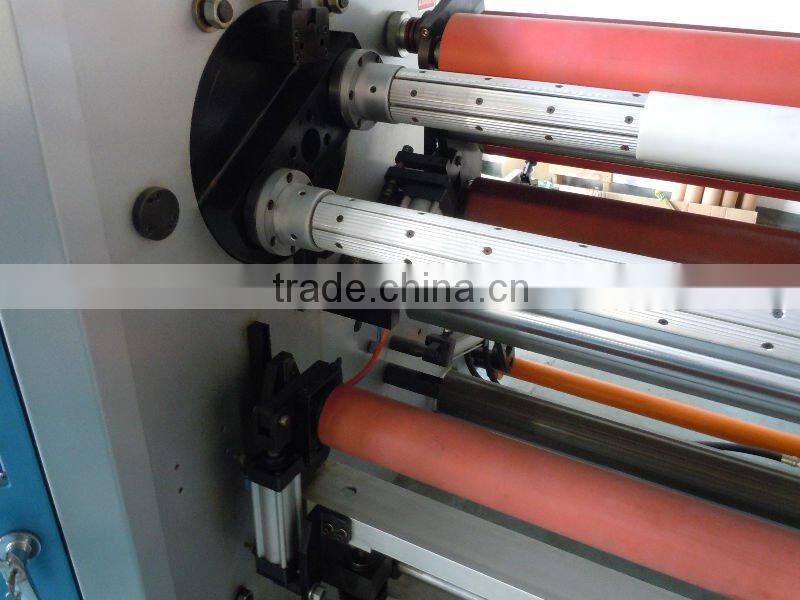

3.The paper core is held firmly on the pneumatic shaft. With easy, fast loading and unloading, it greatly improves efficiency.
4.Automatic smoothing device: this wipe down device fully eliminates the problem of wrinkling and air bubbles in the product after rewinding. This device further ensures the smoothness of product.
5.Oil pressure material loading device (optional): this device offers easy material loading for operational convenience and improves efficiency.
6.The pressing roller is controlled by the cylinder and the pressure is adjustable. The semi-finished products are properly pressed to ensure smooth, stable running during rewinding.
7.All functions are operated under LCD touch panel control, which is operator friendly and easy for data setting.
3. Technical parameter:
valid width |
1.3M/1.6M |
Max. material diameter |
600mm |
Max. rewinding diameter |
300mm |
inside diameter of paper core |
25.4mm/76.2mm |
Max. rewinding speed |
180M/min |
main motor |
5Hp*2 |
Air pressure |
6bar |
Send Inquiry to This Supplier
