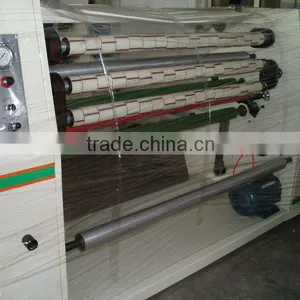

Help CenterBOPP Tape Slitting Rewinding Machine/stationery Tape Slitting and Rewinding Machine.
Related Products
-
Double-side Tape Log Roll Double Shafts Cutting MachineUS$ 21,000 - 23,000MOQ: 1 Set -
Masking Tape Single Shaft Cutting Machine/plastic Film Cutting MachineUS$ 19,000 - 22,000MOQ: 1 Set
-
pe Large Roll Rewinding Machine/masking Paper Rewinding Machine.US$ 7,200 - 8,000MOQ: 1 Set
-
Reflective Cloth Film Coating MachineUS$ 70,000 - 300,000MOQ: 1 Set
-
PVC Manual Cutting Machine/manual Tape Cutting MachineNegotiableMOQ: 1 Unit
Specifications
Mini slitting width: 12mmrewinding shaft: 4 shafts rewind
working width:1300mm,1600mm
1.Features :
1. Automatic four-shaft exchange is adopted. Once rewinding operation is completed, the machine will automatically perform shaft changes.
2. The unwinding tension is adopted with pneumatic braking control. The rewinding tension is adopted with the dual control equipped with the clutch and the independent slide setting for free adjustment of the tensile force.
3. Pneumatic braking is to control the unwind tension. The rewind tension is controlled by the clutch and independent slide setting for free adjustment of the tensile force.
4. Pneumatic brake: bring the machine to an immediate halt and accurate positioning.
2.Technical parameters:
valid width |
1000mm/1300mm/1600mm |
|
Max. unwinding diameter |
800mm |
|
slitting width |
12-1280mm |
|
rewind paper core |
Φ77mm(3”) |
|
rewinding O.D |
four shafts rewind |
76.2-150mm |
two shafts rewind |
76.2-300mm |
|
blade |
0.2*22*60mm |
|
machine speed |
0-180M/Min |
|
main motor |
5HP |
|
