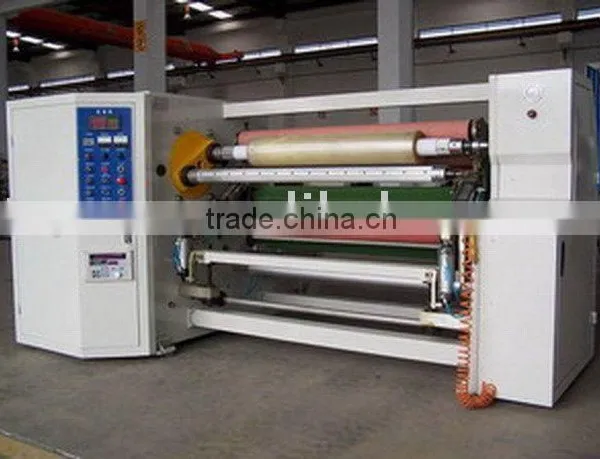

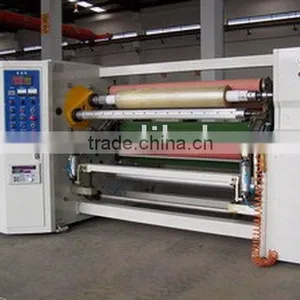

YU-802 Stretch Film Rewinding Machine

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Application:

Other, Machinery & Hardware

Packaging Type:

Other, Wooden case

Taicang Yuyu Plastic Products Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Application Other, Machinery & Hardware

Packaging Type Other, Wooden case

Packaging Material Plastic

Automatic Grade Automatic

Driven Type Hydraulic

Power 5HP*2

Place of Origin Jiangsu, China

Brand Name YU

Model Number 802

Specifications

Suitable for rewind various electric tape, industry tape, BOPP adhesive tape, foil film,paper.
Valid width: 1.3/1,6M

1. Application field:

Suitable for rewind various electric tape, industry tape, BOPP adhesive tape, foil film.

2. Features:

Automatic length setting: the two-step length counter provides accurate rewinding length control. Once the length is reached, so that the shaft will instantly and automatically changes, ensuring easy operation and efficient performance.
Programmable controller: the high performance programmable controller offers convenient control of the entire rewinding operation. Both length and tension are accurately displayed by LED panel.
The paper core is held firmly on the pneumatic shaft. With easy, fast loading and unloading, it greatly improves efficiency.
Automatic smoothing device: this wipe down device fully eliminates the problem of wrinkling and air bubbles in the product after rewinding. This device further ensures the smoothness of product.
Oil pressure material loading device (optional): this device offers easy material loading for operational convenience and improves efficiency.
The pressing roller is controlled by the cylinder and the pressure is adjustable. The semi-finished products are properly pressed to ensure smooth, stable running during rewinding.
All functions are operated under LCD touch panel control, which is operator friendly and easy for data setting.

3. Technical parameter:

valid width	1.3M/1.6M
Max. material diameter	600mm
Max. rewinding diameter	300mm
inside diameter of paper core	25.4mm/76.2mm
Max. rewinding speed	180M/min
main motor	5Hp*2
Air pressure	6bar
