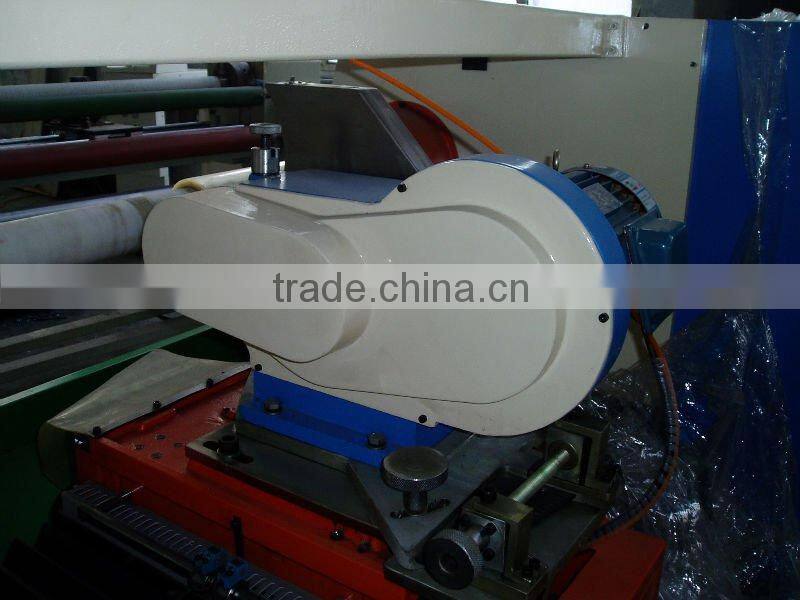

PE Adhesive Tape Cutting Machine

Name: PE Adhesive Tape Cutting Machine
Brand: YUYU
SKU: 115029771
Availability: InStock

PE Adhesive Tape Cutting Machine thumbnail-1

PE Adhesive Tape Cutting Machine photo-1

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Condition:

New

Application:

Other, Machinery & Hardware

Packaging Type:

Other, Wooden case

Contact Supplier Request Quote Chat Now

Taicang Yuyu Plastic Products Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Application Other, Machinery & Hardware

Packaging Type Other, Wooden case

Packaging Material Plastic

Automatic Grade Automatic

Driven Type Pneumatic

Power 5HP

Place of Origin Jiangsu, China

Brand Name YUYU

Model Number 701

Specifications

Suitable for cutting log roll: insulation tape/PVC/OPP/PE/Masking tape/Double-side tape/Plastic films/window films/3M tape..

1.Application field:

Suitable for cutting various log roll materials such as Insulation tape/polyester tape/ PVC/OPP/PE/Masking tape/Double-side tape/Plastic films/windows film/3M tape/fiberglass mesh tape…etc.

2.Features:

1. Centralized control panel: all operation controls. For this machine are centralized in a control panel.

2. Control panel provides major functions: material and blade running speed (LED screen display), width counter, number of cuts counter.

3. Silicon lubricating system prevents the blade from sticking on adhesives and allows smooth cutting at all times. Silicon liquid is re-circulated.

4. The blade is back pressure controlled through an air and hydraulic combination, giving maximum cutting stability and fast blade retract after each cut, cutting pressure can be easily adjusted to suit various types of materials.

5. Cutting circular knife and main shaft power force adopted with AC step-less adjusting motor and available in any rotating direction.

6. Cutting width setting up controlled by servo motor adjustable equipped with ball screw to secure accurate size.

7. PLC programmable control.

3.Technical parameters:

Max. cutting diameter	270mm
Max. cutting speed	35cuts/min
Max. length of cut	1300mm or 1600mm
inside diameter of paper core	32-76.2mm
cutting width	3-1600mm
main motor	5HP
blade drive motor	3HP*6P(servo motor)
blade diameter	150-350mm
blade speed	360-1800rpm
weight	1150kg
machine dimension(LWH)	285014301520mm
