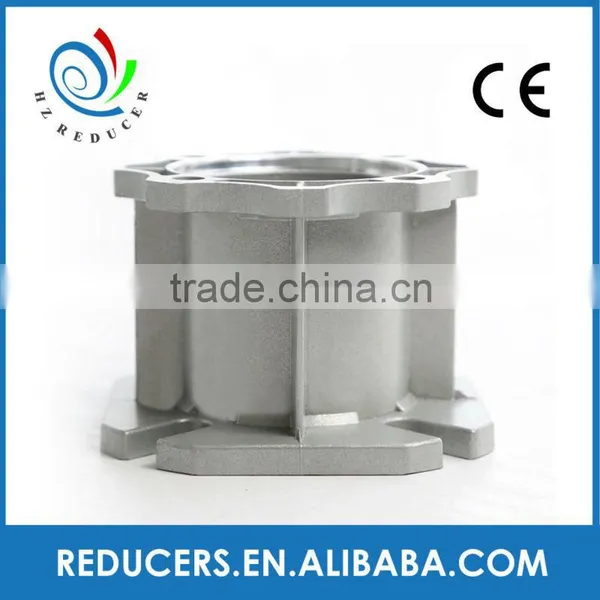

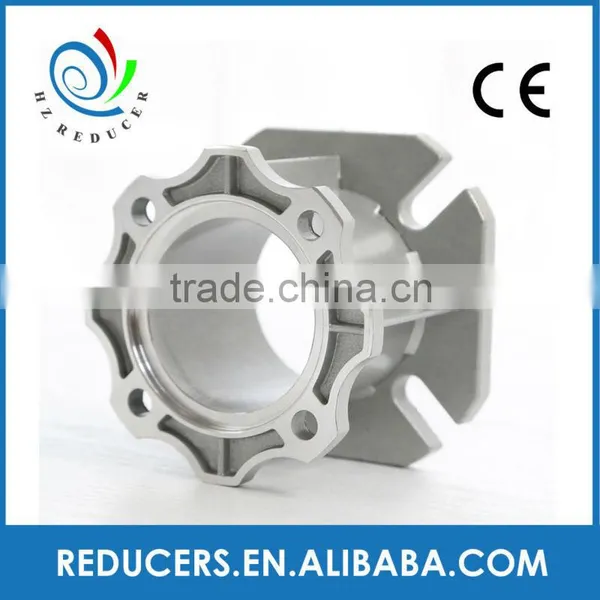

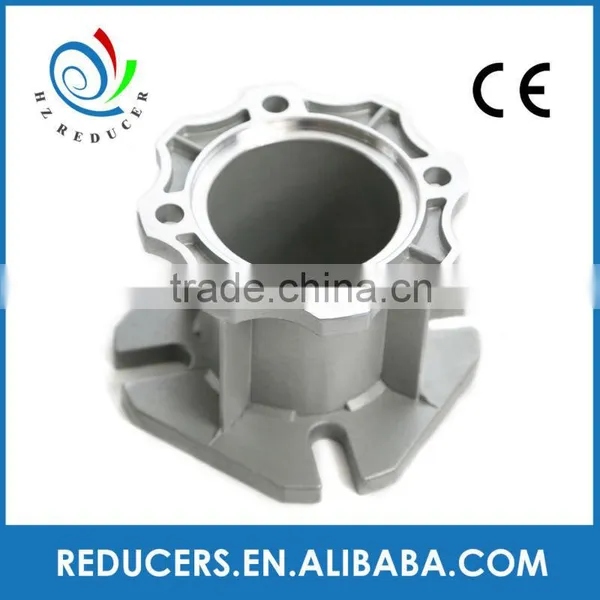

Help CenterFLANGE OF NMRV WORM GEARBOX
Related Products
-
NMRV Worm Gear Box, Speed Reducer Worm Wheel, Gearbox Worm Wheel/worm Shaft/output Shaft/torque Arm/housing/flange Spare PartUS$ 10 - 150MOQ: 1 Unit -
Aluminium Die Cast Housing For NMRV and NRV Worm Speed Recucer /Helical Gear Drice Kit /Gearboxes /Power Transmission ProductsUS$ 5 - 100MOQ: 50 Units
-
WORM SHAFT OF WORM GEARBOXUS$ 20 - 300MOQ: 10 Pieces
-
WORM GEARBOX GEAR MOTORUS$ 1 - 20MOQ: 10 Pieces
-
NMRV WORM GEARBOX PARTSUS$ 20 - 300MOQ: 10 Pieces

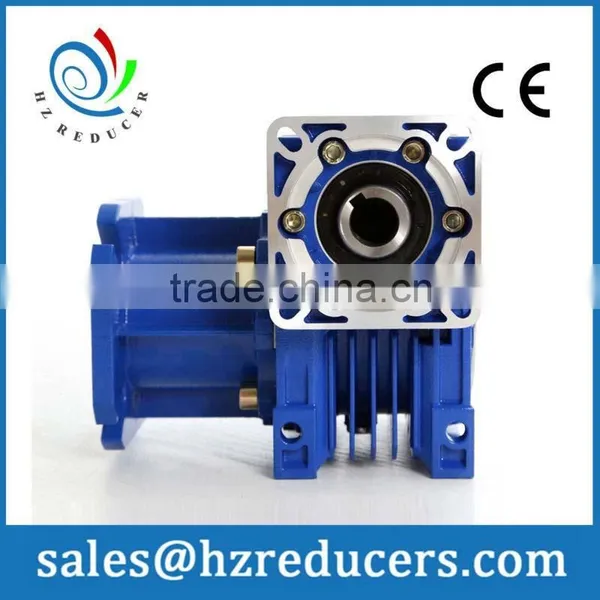

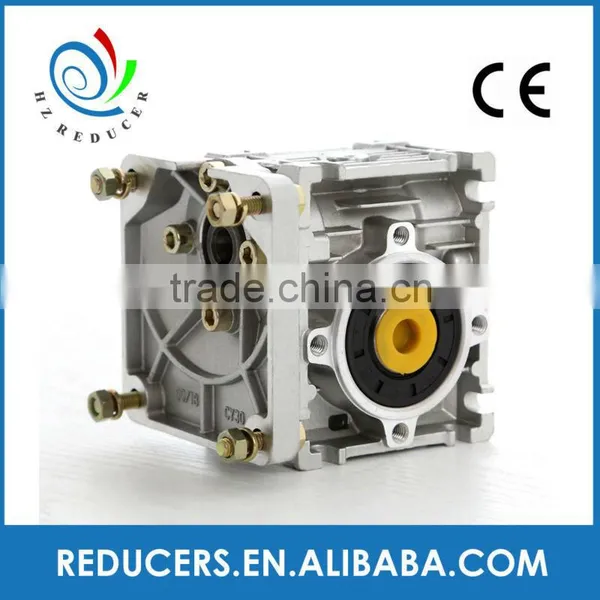

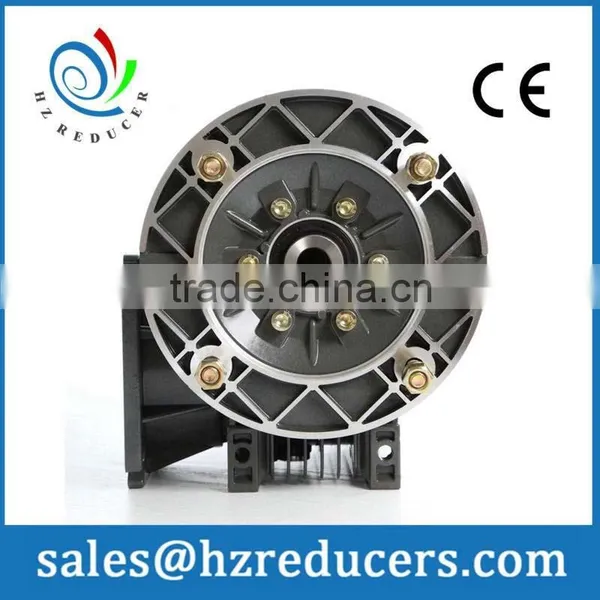

NMRV050 worm gearbox
Main features:
1.large SPEED RATIO range:5/7.5/10/15/20/25/30/40/50/60/80/100
2.small volume,low weight ,saving space for mounting.
3.high efficiency,high mechanical strength and high quality aluminum alloy housing
4.LONG LIFE service,large output torque,low noise and little vibration
5.low temperature rise,omnibearing installation ,easy to connect with other machinery.
6.high carry ability,elegant apperance.
7.CE standard,input power can be 0.18KW-0.75KW
8.stable transmission
Specifications:
Type: |
NMRV Worm Gear Speed Reducer |
Model: |
NMRV050 |
Ratio: |
5/7.5/10/15/20/30/40/50/60/80/100 |
Color: |
Blue/Silver/Grey/Customised |
Material: |
Housing/Flange:Aluminum Alloy |
Worm Gear:Copper 9-4&nodular iron | |
Worm:20CrMn Ti with carburizing and quenching, surface harness is 56-62HRC | |
Shaft:chromium steel-45# | |
Bearing: C&U HCH | |
Oil Seal: NAK SKF | |
Packing: |
Carton and Wooden Case |
Warranty: |
1 Year |
IEC Flange: |
63B5 63B14 71B5 71B14 80B5 80B14 |
Lubricant: |
Synthetic&Mineral |
*Parts of the reducer(e.g:flange&gear) can be customised with additional cost, you are welcome to seek quote

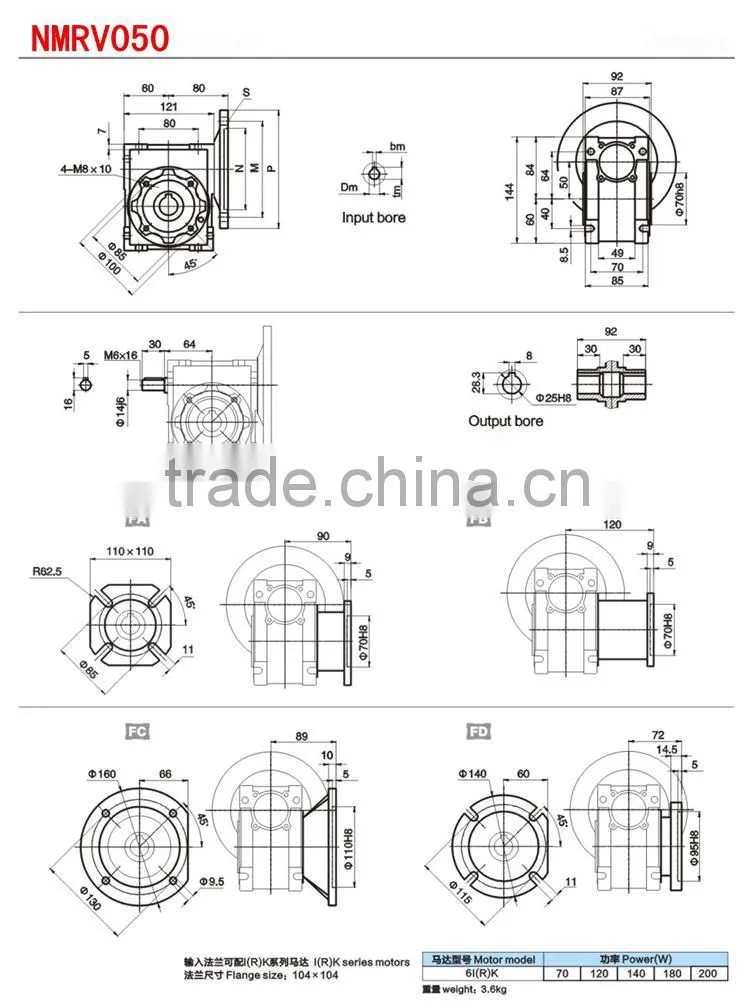

Dimensions
Mounting Dimensions
We are top WORM GEAR reducer factory
Sell directly to clients from over 20 COUNTRIES including India, Turkey, Spain, Brazil, Russia etc.
Our total sales revenue for 2014 was $10.5 MILLION USD.
Our products have CONSISTENT HIGH QUALITY and LOW PRICE. We have our own Aluminum Casting factory which guarantees the quality of the products and allow us to offer competitive price.
We do CUSTOMISED products.
Also, we are very nice people to deal with.
Welcome to VISIT OUR FACTORY!
Sufficient Stock
Best Machines in China
Alluminium Casting Machines & Test Facilities
