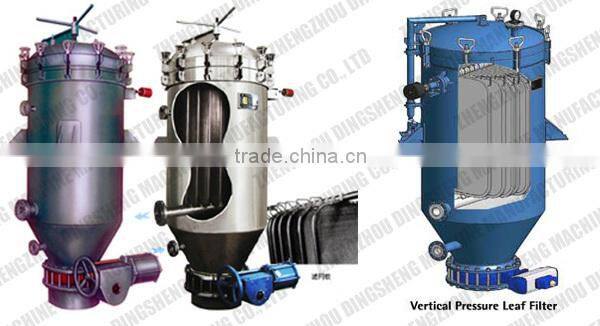

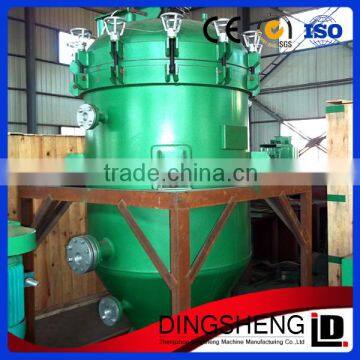

NYB-2 Vertical Leaf Crude oil filtering machine,edible Oil Filter
Specification
1.unique-designed
2.used for multiple purpose
3.easy to operate and maintain
4.raw material is carbon steel
Features:
1.Unique-designed halftone to reduce the cost of flitering
2.Totally enclosed filtering,no oil waste
3.Dregs falling down automatically by vibrating to cut down labor intensity
Advantages of leaf filter :
1.Unique-designed halftone to reduce the cost of filtering.Dispense with filter paper filther cloth.
2.Totally enclosed filtering, no pollution.
3.Dregs falling down automatically by vibrating to cut down labor intensity. It can realize continuous operation, automatic valve deslagging.
Principle of leaf filter:
1.Wire gauze+filter aid+pressure
2.The wire gauze consists of frame and many layers of mat wire mesh.
3.The decolorizer forms a filter-conductivity layer on the halftone in the process of
filtering for normal filtering.
3.Function of leaf filter :
It can be used for bleaching filter and crude oil filter of salad oil and cooking edibleoil.
The hole size of the leaf screen is different when you use the filter for crude oil and oil refining.
4.Technical parameters of leaf filter:
model |
filter area (m2) |
Size of dregs(L) |
capacity(T/h) |
work pressure (Mpa) |
work temperature (°C) |
filter capacity(L) |
Weight (kg) |
|||
oil |
resin |
Bever age |
rated pressure |
max pressure |
||||||
NYB-2 |
2 |
30 |
0.4-0.6 |
1-1.5 |
1-3 |
0.1-0.4 |
0.5 |
≤150 |
120 |
300 |
NYB-4 |
4 |
60 |
0.5-1.2 |
2-3 |
2-5 |
250 |
400 |
|||
NYB-7 |
7 |
105 |
1-1.8 |
3-6 |
4-7 |
420 |
600 |
|||
NYB-10 |
10 |
150 |
1.6-3 |
5-8 |
6-9 |
800 |
900 |
|||
NYB-12 |
12 |
240 |
2-4 |
6-9 |
8-11 |
1000 |
1100 |
|||
NYB-15 |
15 |
300 |
3-5 |
7-12 |
10-13 |
1300 |
1300 |
|||
NYB-20 |
20 |
400 |
4-6 |
9-15 |
12-17 |
1680 |
1700 |
|||
NYB-25 |
25 |
500 |
5-7 |
12-19 |
16-21 |
1900 |
2000 |
|||
NYB-30 |
30 |
600 |
6-8 |
14-23 |
19-25 |
2300 |
2500 |
|||
NYB-36 |
36 |
720 |
7-9 |
16-27 |
23-30 |
2650 |
3000 |
|||
NYB-40 |
40 |
800 |
8-11 |
21-34 |
30-38 |
2900 |
3200 |
|||
NYB-45 |
45 |
900 |
9-13 |
24-39 |
36-44 |
3200 |
3500 |
|||
NYB-52 |
52 |
1040 |
10-15 |
27-45 |
42-51 |
3800 |
4000 |
|||
NYB-60 |
62 |
1200 |
11-17 |
30-52 |
48-60 |
4500 |
4500 |
|||
NYB-70 |
70 |
1400 |
12-19 |
36-60 |
56-68 |
5800 |
5500 |
|||
NYB-80 |
80 |
1600 |
13-21 |
40-68 |
64-78 |
7200 |
6000 |
|||
NYB-90 |
90 |
1800 |
14-23 |
43-72 |
68-82 |
7700 |
6500 |
|||

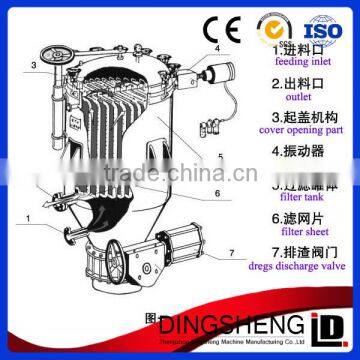

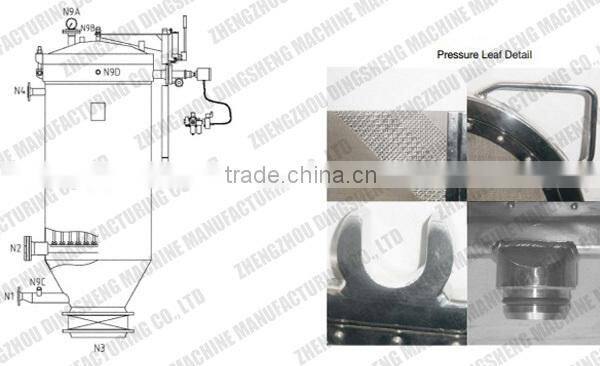

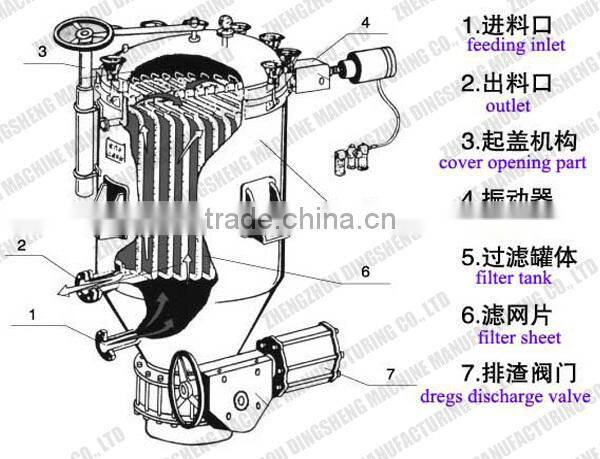

5.Structure of filtration leaf filter:

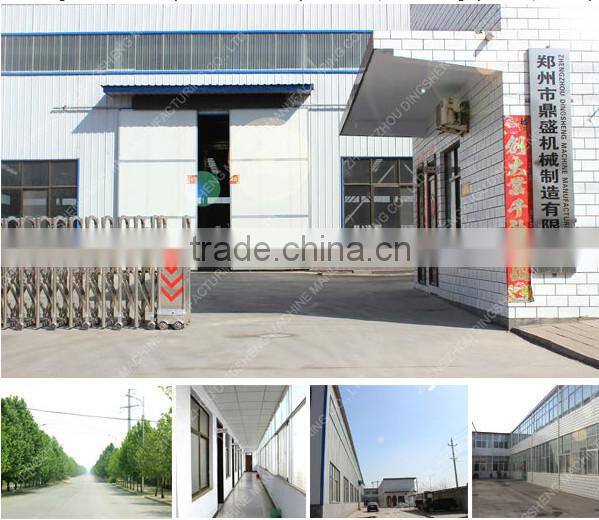

Company Information
Our corporation was established in 2002, mainly engaged in oil press engineering R&D,equipment manufacture, installation commissioning and training services.We seize more business opportunities in the competition at any time, to create greater value for you and the society.Our team, which is highly skilled,is ready to serve you in 24 hour
Packaging & Shipping
Our Services
As a professional exporter,our target is to serve worldwide clients with high-quality products, great-reliability, devoted responsibility,professional services and honorab
le credibility to meet customers'requirements in all aspects.We will supply you 24 h
ours a day and7 days a week after-sale services.
If you have any questions ,please contact us diretly !
