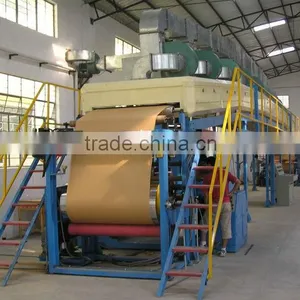

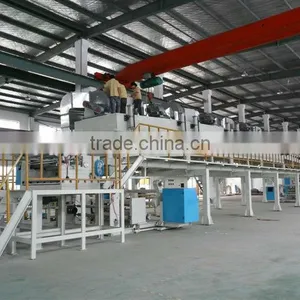

Help CenterAcrylic Adhesive and Single Sided Adhesive Side Adhesive Tape Coating Machine
Related Products
-
YU-112 Automatic Grade and Plastic Packaging Material Bag Sealing Tape MachineUS$ 1 - 30,000MOQ: 1 Set -
YU-112 Sealed Tape Coating Machine/Bag Sealing Tape Machinery/Adhesive Tape Coating MachineryUS$ 1 - 30,000MOQ: 1 Set
-
Paper/kraft Paper/photo Paper/thermal Paper/release Paper/crepe Paper Coating MachineUS$ 1 - 300,000MOQ: 1 Set
-
Textile Laminating MachineUS$ 1 - 2MOQ: 1 Set
-
Scotch Tape Coating Machine/Bopp Adhesive Tape Coating Machine/Bopp Scotch Sticky Tape Coating MachineUS$ 1 - 300,000MOQ: 1 Set
Specifications
1.multifunctional coating machine2.based material:Bopp,double-sided,kraft paper,PET,foam,cloth,release paper etc
3.high speed
Application field:
Suitable for coating:

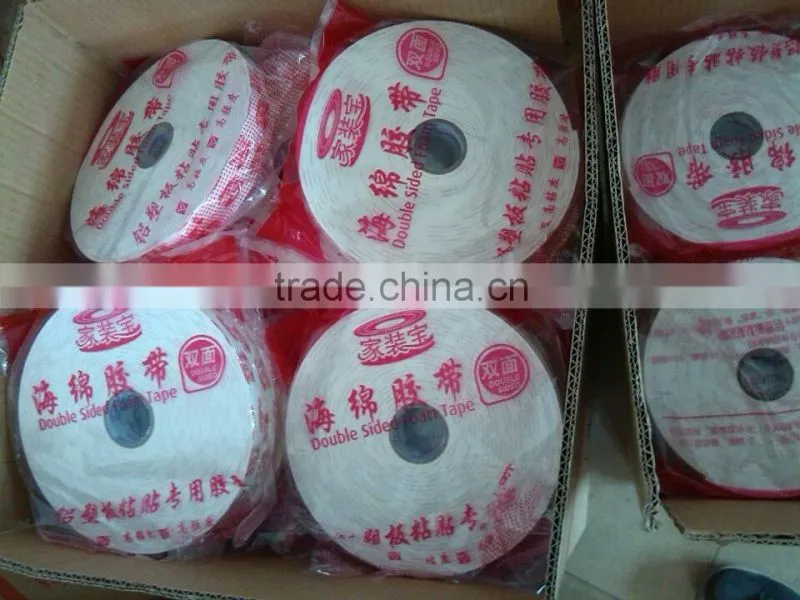

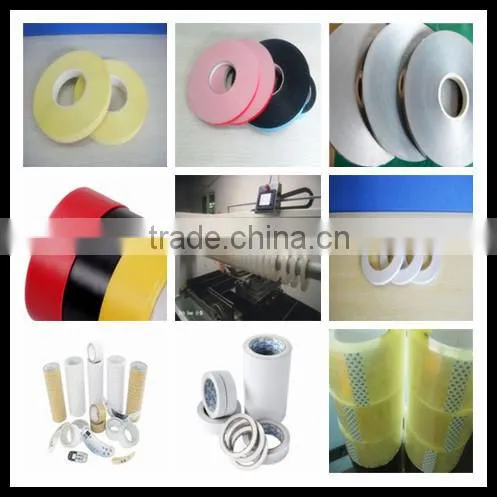

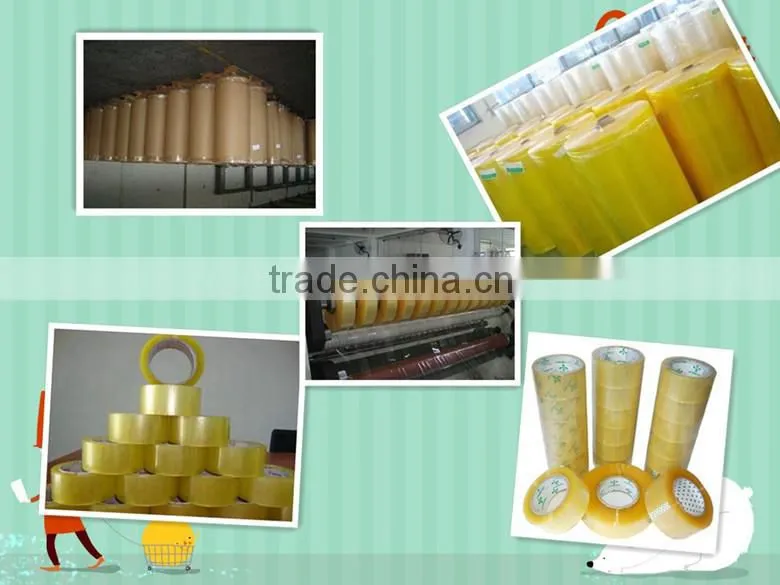

Acrylic Adhesive tape,release paper,ads material,masking tape,label sticker,douboe-side tape,cloth tape,reflective cloth,and reflective film etc.
Features:
1. Full automatic inergrated control.
2. Bar-type gluing and save glue.
3. 5-80m/min hign speed production.
4. Full automatic unwinding and rewinding.
5. Full automatic loading and discharge.
6. High speed automatic cutting cloth and connecting film.
7. Outside heated shell type drying case, easy operation.
8. Slit nozzle blasting dry system for bake oven, high drying effiency.
Technical parameters:
Model |
YU-500 |
YU-1000 |
YU-1300 |
YU-1600 |
Valid width |
500mm |
1000mm |
1300mm |
1600mm |
Mechanical speed |
5-60m/min |
5-150m/min |
5-220m/min |
5-220m/min |
Coating average degree |
0.01mm |
|||
Rewinding edge smooth |
2mm |
|||
Total mechanical speed |
20-25HP |
20-65HP |
30-100HP |
40-100HP |
Oven length |
design upon the request of the customer |
|||
Heating |
steam/hot blast/thermal oil/electric/gas furnace |
|||
Power supply/voltage |
380v 50HZ |
|||

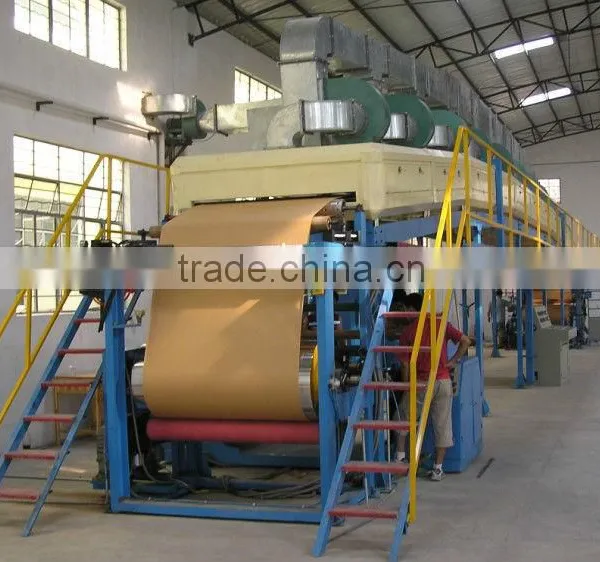

Main equipment:
Item |
Quantity |
Supporting Frame&accessories |
1 set |
Duplex Unwinder&automatic Edge machine |
1 set |
Mayer-bar Coater |
1 set |
7 zones oven(4m/zone)(Not Certain,according to Machine speed) |
28 m |
EPC correction group(out of Oven) |
1 group |
Cooling Group |
1 group |
electrical control system |
1 set |
Duplex Rewinder |
1 group |
Secondary side piping |
1 set |
Secondary wiring |
1 set |
Secondary duct |
1 set |
